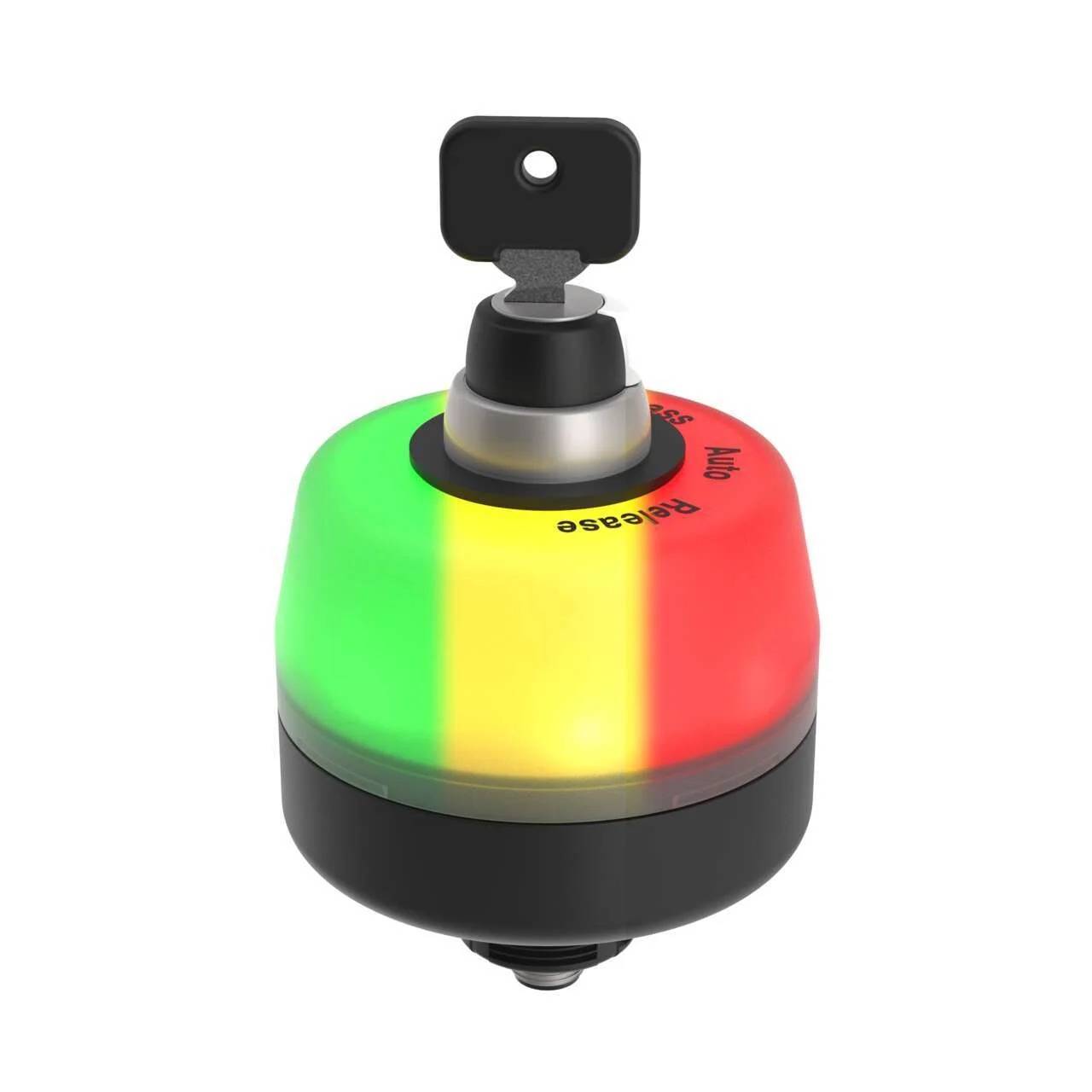

Banner Engineering OS80K3MXKQK
OS80 Operator Station: Key Switch with IO-Link
Segmented Housing; 3-Position Key Switch
Voltage: 12-30 V dc; Housing: Polycarbonate; IP40
Colors: Green, Yellow,…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
OS80 Operator Station: Key Switch with IO-Link
Segmented Housing; 3-Position Key Switch
Voltage: 12-30 V dc; Housing: Polycarbonate; IP40
Colors: Green, Yellow, Red; Laser Marked: Bypass Auto Release
4-pin M12 Integral QD
Bracket SMB30U100
Specification
| Power | DC |
|---|---|
| Pfm Input | No |
| Non Illuminated | No |
| Ip Rating | IP40 |
| Display | No |
| Supply Voltage | 18-30 V dc |
| Item Status | RELEASED |
| Housing Style | Base Mount – Dome Window |
| Primary Housing Material | Polycarbonate |
| Indication | No |
| Illumination | No |
| Actuation | Yes |
| Activation Function | Key Operated Selector Switch |
| Mounting Thread | M30 x 1.5 |
| Color Input Control | Communication Protocol |
| Number Of Colors | Programmable |
| Product Size (Mm) | 82 |
| Color Technology | Standard LED |
| Connection | Integral QD |
| Quick Disconnect Type | M12 |
| Max Current Color (Ma) | 150 |
| Dimming Option | Programmable |
| Number Of Input Pins/Conductors | 4 |
| Operation | Programmable |
| Output Type | Communication Protocol |
| Input Type | Communication Protocol |
| I/O Block Compatible | Yes |
| Physical Dimensions (Lxwxh Or Dxh Mm) | 80.0 x 195.6 |
| Environmental Rating | IP40 |
| Eye Shield | No |
| High Temperature (Up To 100 C) | 55 |
| Min Op. Temperature (C) | -25 |
| Storage Temp (C) | -40 to 70 |
| Primary Housing Color | Black |
| Secondary Material | Polyamide |
| Feature: Washdown Rated | No |
| Feature: Audible | No |
| Feature: Cascade | No |
| Feature: Chemical Resistant | No |
| Multi Color Device | Simultaneous Colors On |
| Application: Traffic Light | No |
| Feature: Quick Disconnect | Yes |
| Io Link | Yes |
| Wireless | No |
| U S B | No |
