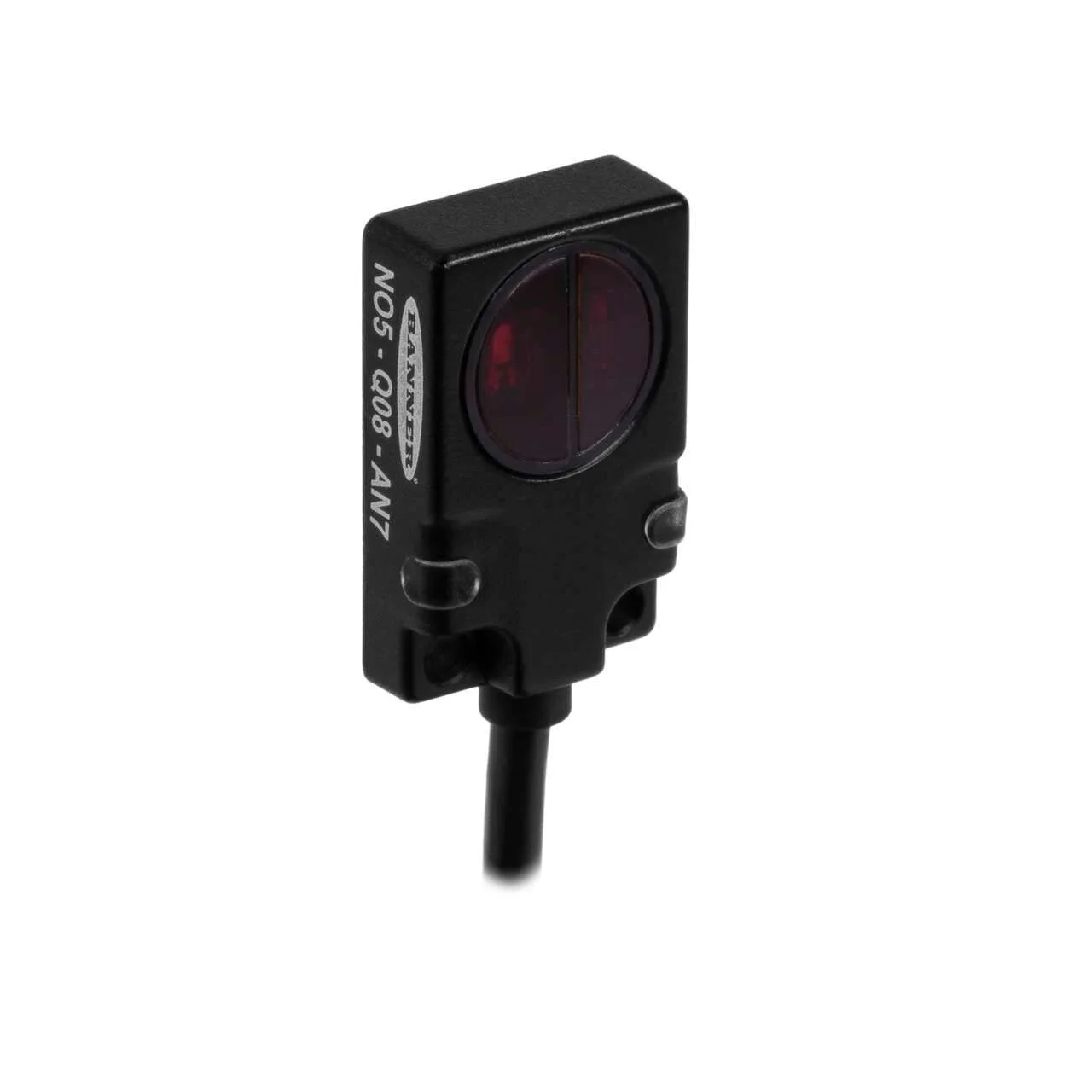

Banner Engineering NO5-Q08-AN7
Q08 Series: Diffuse
Range: 2.5 mm to 61 mm; Input: 10-30 V dc
Output: Light Operate – NPN
2 m (6.5 ft) Cable
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Q08 Series: Diffuse
Range: 2.5 mm to 61 mm; Input: 10-30 V dc
Output: Light Operate – NPN
2 m (6.5 ft) Cable
Specification
| Power | DC |
|---|---|
| Sensing Beam | Infrared LED |
| Cable Length (M) | 2 |
| Ip Rating | IP67 |
| Supply Voltage | 10-30 V dc |
| Item Status | RELEASED |
| Sensing Mode (General) | Proximity |
| Sensing Mode (Detailed) | Diffuse |
| Housing Style | Rectangular |
| Primary Housing Material | Zinc Alloy Die-Cast |
| Input/ Output | Discrete |
| Max Sensing Distance (Mm) | 61 |
| Outputs | NPN |
| Connection | Cable |
| Operation | Light Operate |
| Max Op. Temp. (C) | 50 |
| Output Response Time (Ms) | 1 |
| Special Feature: Intrinsically Safe | No |
| Special Feature: Remote Teach | No |
| Special Feature: Water Detection | No |
| Sensing Beam Wavelength | 880 |
| Delay At Power Up (Ms) | N/A |
| Number Of Pins | 4 |
| Max Op. Relative Humidity [%] | 90% @ 50°C |
| Lens Material | N/A |
| Adjustments | N/A |
| Indicator | LEDs |
| Feature: Washdown Rated | No |
| Feature: Clear Object Detection | No |
| Feature: Timing (Hold/Delay) | No |
| Feature: Audible | No |
| Feature: Chemical Resistant | No |
| Feature: Quick Disconnect | No |
| Feature: Health/Marginal Signal Output | No |
| Device Net | No |
| Eplan Status | Published |
| Eplan Original Sent Date | 01/11/2023 |
