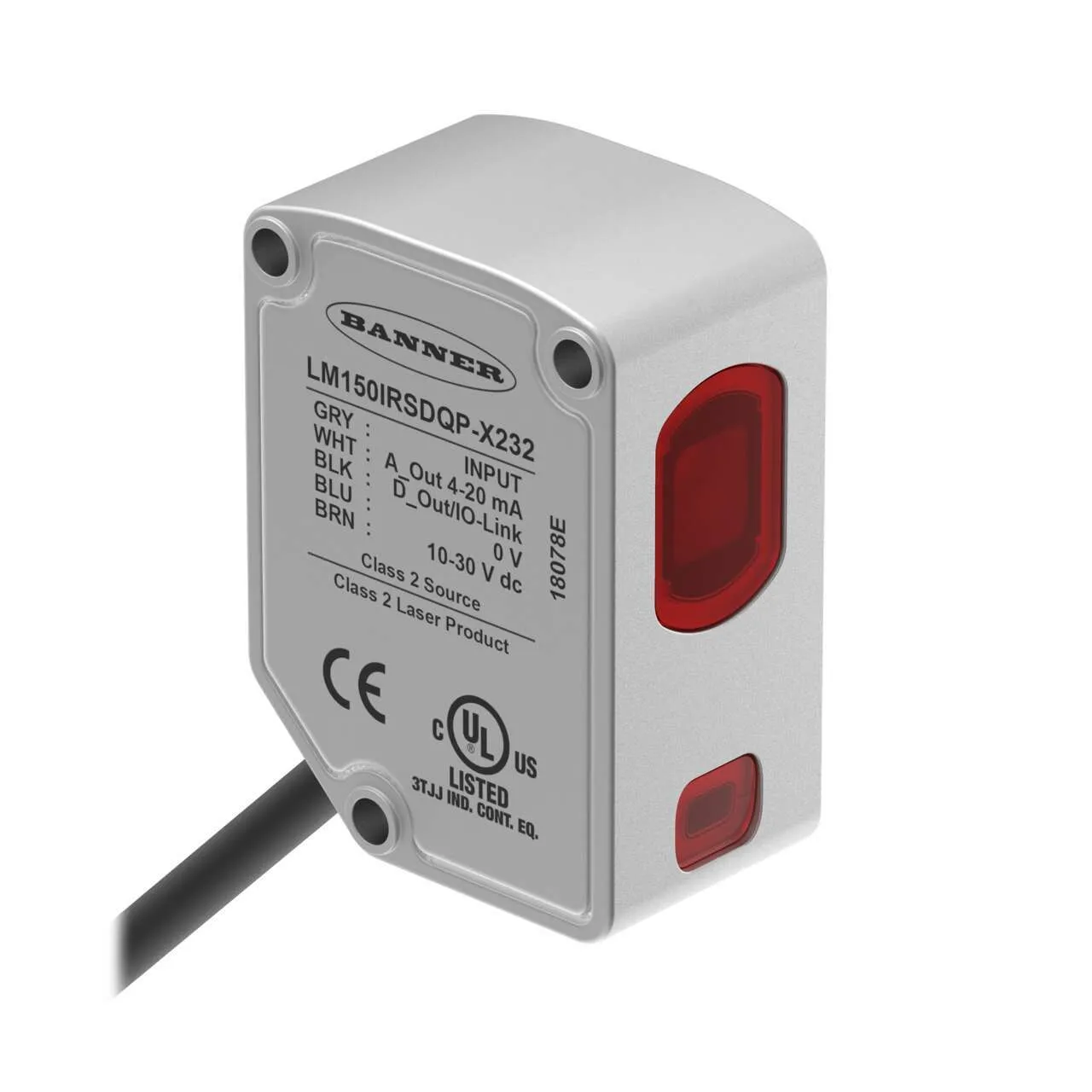

Banner Engineering LM150IRSDQP-X232
Laser Displacement Sensor Range: 50-150 mm; Input: 10-30 V dc; Outputs: Analog: 4-20 mA 300 mm (1 ft) M12 Pigtail QD Converter Required for Serial Output. Part number: 809721. Power: DC. Max Measureme…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Laser Displacement Sensor Range: 50-150 mm; Input: 10-30 V dc; Outputs: Analog: 4-20 mA 300 mm (1 ft) M12 Pigtail QD Converter Required for Serial Output. Part number: 809721. Power: DC. Max Measurement Range: >100 mm –
Specification
| Power |
DC |
|---|---|
| Max Measurement Range |
>100 mm – <=500 mm |
| PFM Output |
No |
| Sensing Beam |
Visible Red Laser |
| Jam Detection |
No |
| Cable Length (m) |
0.3 |
| PC Configurable |
No |
| IP Rating |
IP67 |
| NEMA / UL Type Rating |
NEMA 4X |
| Supply Voltage |
10-30 V dc |
| Item Status |
RELEASED |
| Sensing Mode (General) |
Proximity |
| Sensing Mode (Detailed) |
Triangulation |
| Housing Style |
Rectangular |
| Device Type |
Sensor |
| Primary Housing Material |
Stainless Steel |
| Laser Classification |
Class 2 |
| Input/Output |
Analog & Serial (with Converter) |
| Analog Output Configuration |
4-20 mA |
| Connection |
Pigtail QD |
| Quick Disconnect Type |
M12 |
| Max Sensing Distance (mm) |
150 |
| Minimum Sensing Distance (mm) |
50 |
| Number of Pins |
5 |
| Discrete (Switched) Outputs |
1 NPN/PNP Configurable |
| Max Operating Temperature (C) |
55 |
| Min Operating Temperature (C) |
-10 |
| Laser Control |
Yes |
| Max Ambient Light (Lux) |
10000 |
| Feature: Remote Teach |
Yes |
| Feature: Washdown Rated |
No |
| Feature: Clear Object Detection |
Yes |
| Feature: Timing (Hold/Delay) |
Yes |
| Feature: Chemical Resistant |
Yes |
| Feature: Pump-in/ Pump-out |
No |
| Feature: Quick Disconnect |
Yes |
| Feature: Health/Marginal Signal Output |
Yes |
| Application: Ultrasonic |
No |
| Common Ethernet Protocol |
No |
| IO Link |
No |
| PROFINET |
No |
| RS-232 |
Yes |
| RS-422 |
No |
| RS-485 |
No |
| SSI |
No |
| Wireless |
No |
| 1-wire Serial Interface |
No |
| Profibus |
No |
