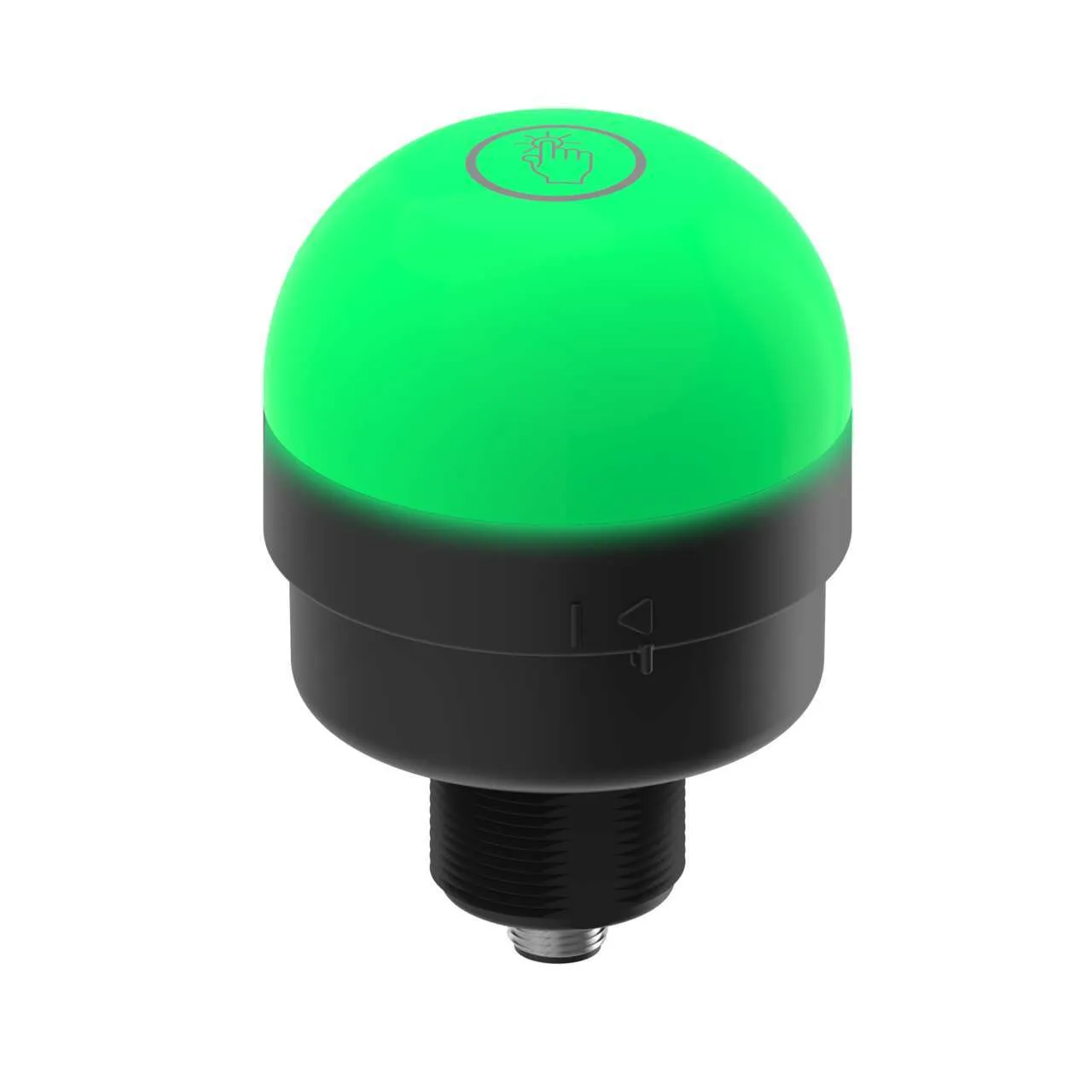

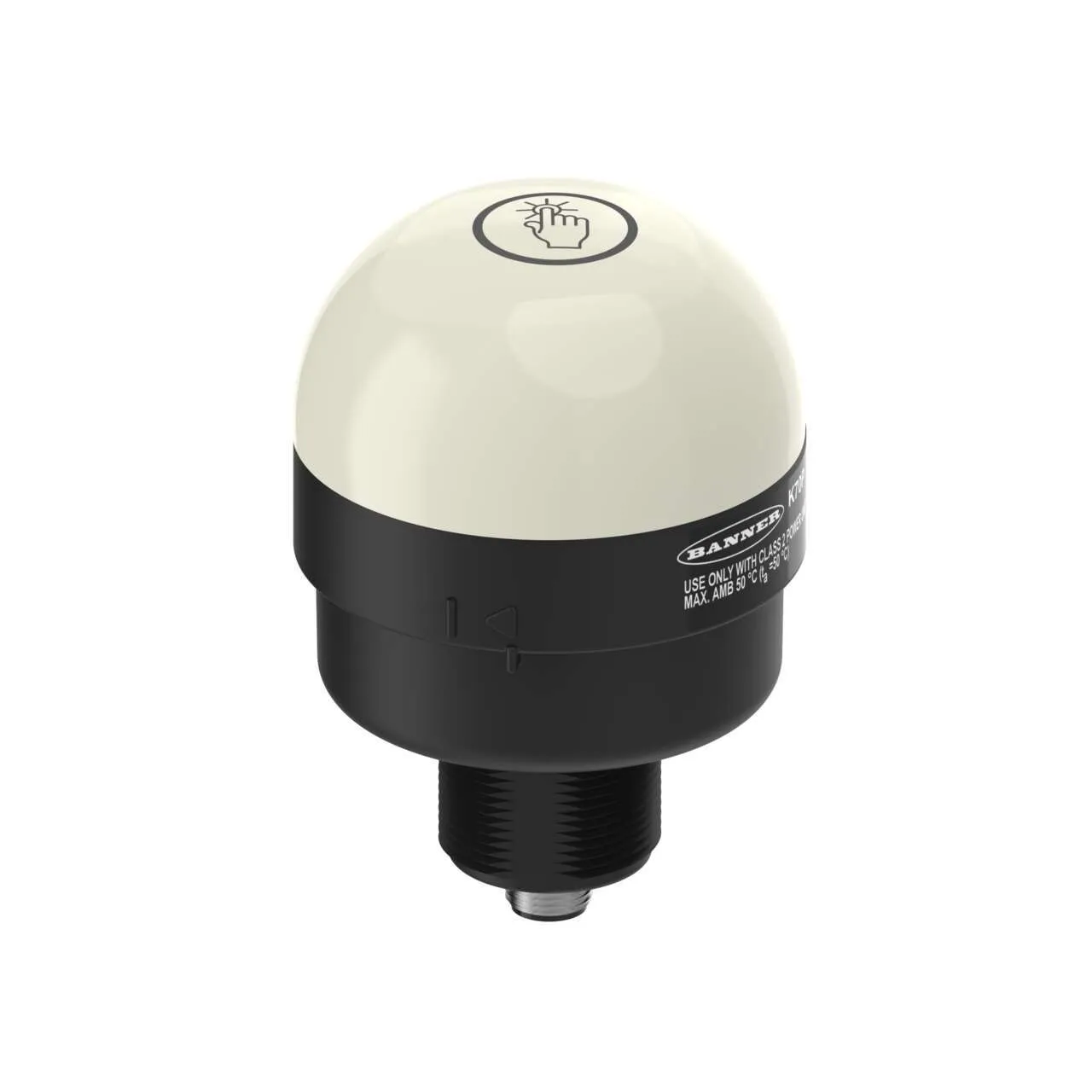

Banner Engineering K70ANT2GRYF2Q

K70 Series EZ-LIGHT: 3-Input-Color Touch Sensor Gen 2. Part number: 96931. model: K70ANT2GRYF2Q. part_number: 96931. list_price: 231 USD. is_new: 0. is_in_stock: 0. product_manual: —. BAN_NumberOfColors: 3. BAN_Connection: Integral QD. BAN_LI_PTL_Function: F2. BAN_LI_OutputType: NPN. Custom_Group_1128_1128: Colors: RedColors: Yellow. BAN_CommProtocols_Wireless: No. BAN_Wireless_RadioFrequency: —. BAN_LI_PowerSource: DC. BAN_LI_ShipsBattery: No. BAN_CableLength: —. Power: DC. PFM Input: No. Non-Illuminated: No. IP Rating: IP65. Ships with Battery: No. Display: No. Supply Voltage: 12-30 V dc. Item Status: RELEASED. Housing Style: Base Mount – Dome Window. Primary Housing Material: Polycarbonate. Indication: No. Illumination: No. Actuation: Yes. Activation Function: Capacitive Touch. Mounting Thread: M30 x 1.5. Color Input Control: Individual (One wire/color, same number of colors as input wires). Number of Colors: 3. Product Size (mm): 70. Color Technology: Standard LED. Color Option 1: Green. Animation Option 1: Solid On. Connection: Integral QD. Lumens Color 1: 45.0. Quick Disconnect Type: M12. Color 1 – Wavelength/Color Temp/Coordinates: 525 nm. Color Option 2: Red. Color Option 3: Yellow. Lumens Color 3: 13.0. Color 3 – Wavelength/Color Temp/Coordinates: 590 nm. Max Current Color (mA): 220. Pick-to-Light Function: F2. Number of Input Pins/Conductors: 8. Operation: Normally Open. Output Type: NPN. Input Type: NPN. I/O Block Compatible: No. Max Output Response Time (ms): 50. Physical Dimensions (LxWxH or DxH mm): 70.0 x 103.5. Environmental Rating: IP65. Eye Shield: No. Max Op. Relative Humidity Non-Condensing (%): 90% @ 50°C. High Temperature (up to 100 C): 50. Min Op. Temperature (C): -40. Primary Housing Color: Black. Feature: Washdown Rated: No. Feature: Audible: No. Feature: Cascade: No. Feature: Chemical Resistant: No. Feature: Illuminated: No. Multi-Color Device: Single Color On. Application: Traffic Light: No. Feature: Quick Disconnect: Yes. Wireless: No. USB: No
