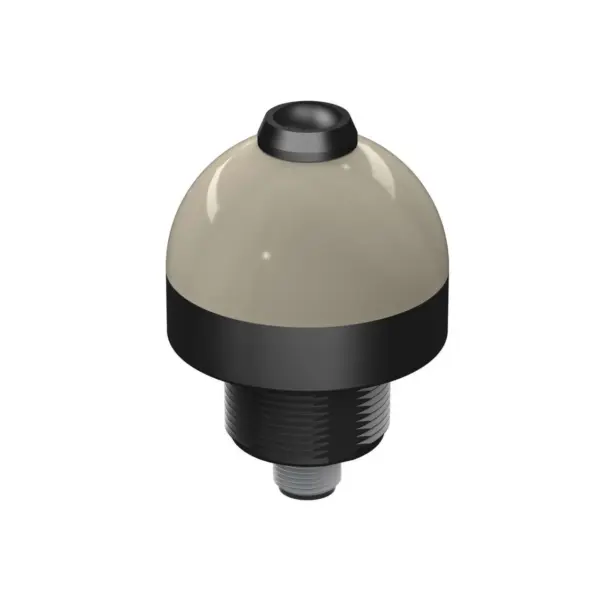

Banner Engineering K50LYXXPPB2Q

K50L Series EZ-LIGHT: 1-Color Indicator with Dry Contact Switch. Part number: 32021. model: K50LYXXPPB2Q. part_number: 32021. list_price: 134 USD. is_new: 0. is_in_stock: 0. product_manual: —. BAN_Programmable: No. BAN_LI_DeviceType: Push Button. BAN_Encapsulated: Yes. BAN_IPRating: IP65. Custom_Group_2026_2026: Discrete. BAN_Housing_Style: Dome. BAN_Audible: No. BAN_Connection: Integral QD. BAN_Display: No. BAN_LI_Max_Sensing_Range: —. BAN_Vibration_Feedback: —. BAN_CableLength: —. BAN_Hazardous_Area: No. BAN_Primary_Housing_Material: Polycarbonate. BAN_Power: DC. BAN_Supply_Voltage: 12-30 V dc. Custom_Group_2027_2027: Colors: Yellow. Power: DC. PFM Input: No. Non-Illuminated: No. IP Rating: IP65. Display: No. NEMA / UL Type Rating: NEMA and UL 4X, 13. Supply Voltage: 12-30 V dc. Lighting Device Type: Push Button. Discrete: Yes. Programmable: No. Item Status: RELEASED. Housing Style: Dome. Primary Housing Material: Polycarbonate. Indication: No. Illumination: No. Actuation: Yes. Activation Function: Push-Button. Mounting Thread: M30 x 1.5. Color Input Control: Individual (One wire/color, same number of colors as input wires). Number of Colors: 1. Product Size (mm): 50. Color Technology: Standard LED. Color Option 1: Yellow. Animation Option 1: Solid On. Connection: Integral QD. Quick Disconnect Type: M12. Max Current Color (mA): 65. Number of Input Pins/Conductors: 4. Operation: Normally Open. Output Type: Dry Contact. Input Type: PNP. I/O Block Compatible: No. Physical Dimensions (LxWxH or DxH mm): 50.0 x 74.7. Environmental Rating: IP65. Eye Shield: No. Max Op. Relative Humidity Non-Condensing (%): 90% @ 50°C. High Temperature (up to 100 C): 50. Min Op. Temperature (C): -40. Storage Temp (C): -40 to 70. Primary Housing Color: Black. Button Operation: Momentary. Primary Window Material: Polycarbonate Diffused. Secondary Material: Thermoplastic. Feature: Washdown Rated: No. Feature: Encapsulated: Yes. Feature: Hazardous Area: No. Feature: Audible: No. Feature: Cascade: No. Feature: Chemical Resistant: No. Feature: Illuminated: No. Multi-Color Device: Single Color On. Application: Traffic Light: No. Feature: Quick Disconnect: Yes. IO Link: No. Modbus RTU: No. Wireless: No. USB: No. Pro-Editor Compatible (Discrete): No. EPLAN Status: Published. EPLAN Original Sent Date: 07/03/2024
