Banner Engineering K50FAPT2GRYF2Q

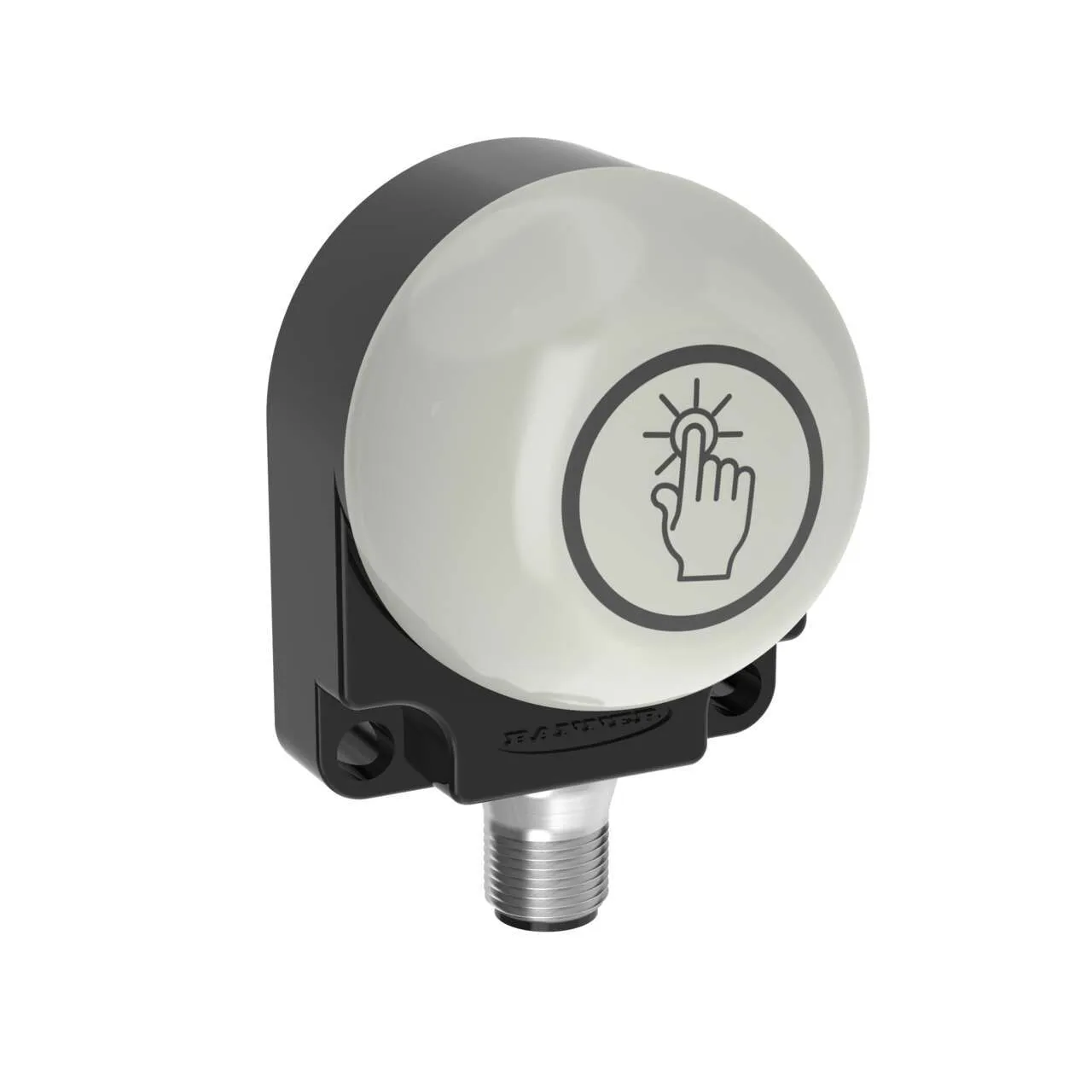

K50 Series EZ-LIGHT: 3-Input-Color Touch Sensor Gen 2 Flat pack. Part number: 800288. model: K50FAPT2GRYF2Q. part_number: 800288. list_price: 189 USD. is_new: 0. is_in_stock: 0. product_manual: —. BAN_Programmable: No. BAN_LI_DeviceType: Touch Button. BAN_Encapsulated: Yes. BAN_IPRating: IP67, IP69K. Custom_Group_2026_2026: Discrete. BAN_Housing_Style: Flat Pack Dome. BAN_Audible: No. BAN_Connection: Integral QD. BAN_Display: No. BAN_LI_Max_Sensing_Range: —. BAN_Vibration_Feedback: —. BAN_CableLength: —. BAN_Hazardous_Area: No. BAN_Primary_Housing_Material: Polycarbonate. BAN_Power: DC. BAN_Supply_Voltage: 12-30 V dc. Custom_Group_2027_2027: Colors: GreenColors: RedColors: Yellow. Power: DC. PFM Input: No. Non-Illuminated: No. IP Rating: IP67, IP69K. Display: No. Supply Voltage: 12-30 V dc. Lighting Device Type: Touch Button. Discrete: Yes. Programmable: No. Item Status: RELEASED. Housing Style: Flat Pack Dome. Primary Housing Material: Polycarbonate. Indication: No. Illumination: No. Actuation: Yes. Activation Function: Capacitive Touch. Mounting Thread: No Thread. Color Input Control: Individual (One wire/color, same number of colors as input wires). Number of Colors: 3. Product Size (mm): 50. Color Technology: Standard LED. Color Option 1: Green. Animation Option 1: Solid On. Connection: Integral QD. Lumens Color 1: 29.0. Quick Disconnect Type: M12. Color 1 – Wavelength/Color Temp/Coordinates: 525 nm. Color Option 2: Red. Lumens Color 2: 13.0. Color 2 – Wavelength/Color Temp/Coordinates: 625 nm. Color Option 3: Yellow. Lumens Color 3: 24.0. Color 3 – Wavelength/Color Temp/Coordinates: 591 nm. Max Current Color (mA): 75. Pick-to-Light Function: F2. Number of Input Pins/Conductors: 8. Operation: Normally Open. Output Type: PNP. Input Type: PNP. I/O Block Compatible: No. Max Output Response Time (ms): 50. Physical Dimensions (LxWxH or DxH mm): 76.0 x 50.0 x 41.6. Environmental Rating: IP67; IP69K. Eye Shield: No. Max Op. Relative Humidity Non-Condensing (%): 90% @ 50°C. High Temperature (up to 100 C): 50. Min Op. Temperature (C): -40. Storage Temp (C): -40 to 70. Primary Housing Color: Black. Button Operation: Momentary. Primary Window Material: Polycarbonate Diffused. Feature: Washdown Rated: Yes. Feature: Encapsulated: Yes. Feature: Hazardous Area: No. Feature: Audible: No. Feature: Cascade: No. Feature: Chemical Resistant: No. Feature: Illuminated: No. Multi-Color Device: Single Color On. Application: Traffic Light: No. Feature: Quick Disconnect: Yes. IO Link: No. Modbus RTU: No. Wireless: No. USB: No. Pro-Editor Compatible (Discrete): No. EPLAN Status: Published. EPLAN Original Sent Date: 10/27/2022
