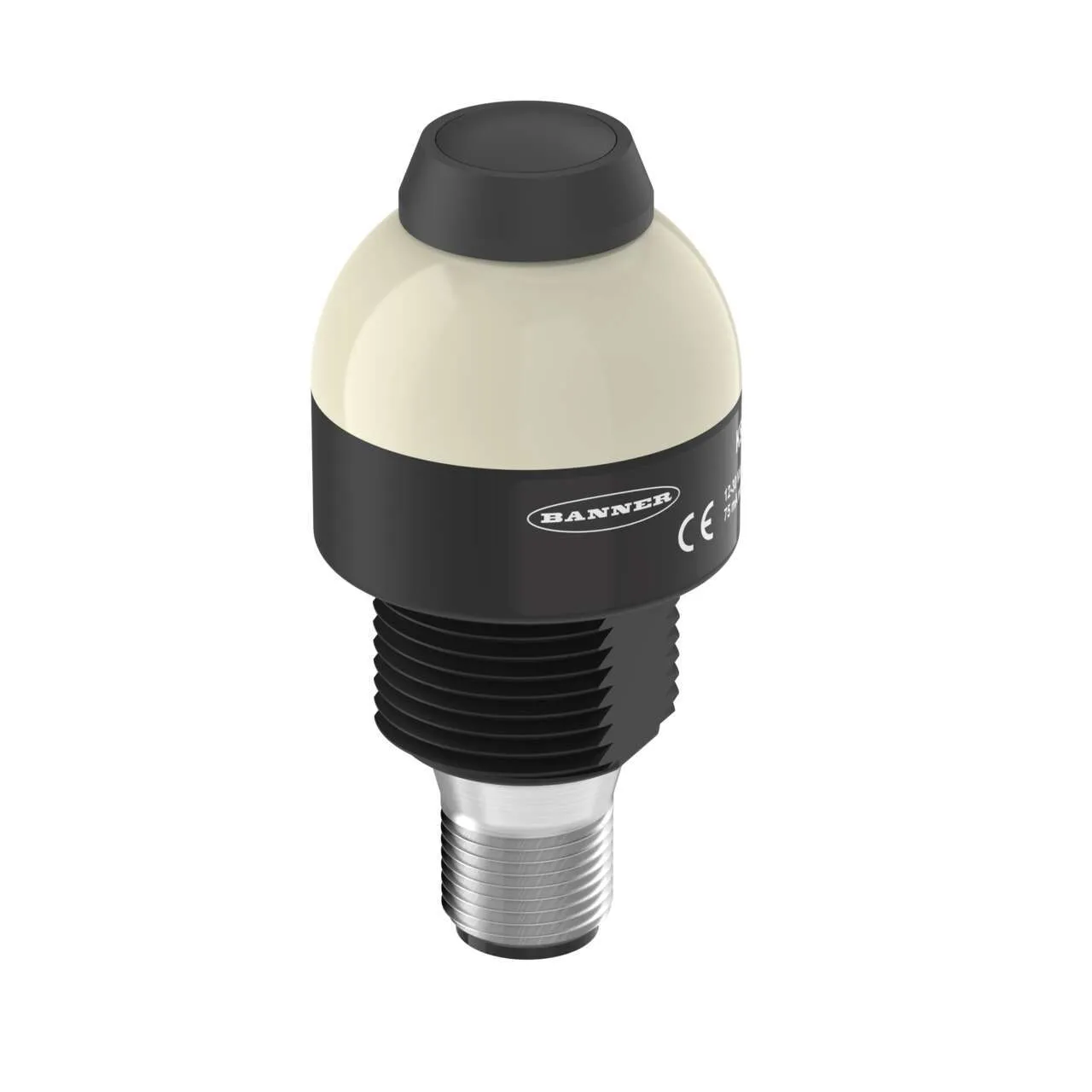

Banner Engineering K30APPBXXQ

K30 Series EZ-LIGHT: No Color Push Button Sensor. Part number: 91207. model: K30APPBXXQ. part_number: 91207. list_price: 135 USD. is_new: 0. is_in_stock: 1. product_manual: https://info.bannerengineering.com/cs/groups/public/documents/literature/162557.pdf. BAN_NumberOfColors: —. BAN_Connection: Integral QD. Custom_Group_1139_1139: —. BAN_CableLength: —. Power: DC. PFM Input: No. Non-Illuminated: No. IP Rating: IP65. Display: No. NEMA / UL Type Rating: NEMA 13. Supply Voltage: 12-30 V dc. Item Status: RELEASED. Housing Style: Base Mount – Dome Window. Primary Housing Material: Polycarbonate. Indication: No. Illumination: No. Actuation: Yes. Activation Function: Push-Button. Mounting Thread: M22 x 1.5. Color Input Control: Individual (One wire/color, same number of colors as input wires). Product Size (mm): 30. Color Technology: Standard LED. Connection: Integral QD. Quick Disconnect Type: M12. Max Current Color (mA): 55. Number of Input Pins/Conductors: 4. Operation: Normally Open. Output Type: PNP. Input Type: PNP. I/O Block Compatible: No. Max Input Response Time (ms): 300. Max Output Response Time (ms): 150. Physical Dimensions (LxWxH or DxH mm): 30.0 x 62.8. Environmental Rating: IP65. Eye Shield: No. Max Op. Relative Humidity Non-Condensing (%): 90% @ 50°C. High Temperature (up to 100 C): 50. Min Op. Temperature (C): -40. Storage Temp (C): -40 to 70. Primary Housing Color: Black. Button Operation: Momentary. Primary Window Material: Polycarbonate Diffused. Secondary Material: Thermoplastic. Feature: Washdown Rated: No. Feature: Audible: No. Feature: Cascade: No. Feature: Chemical Resistant: No. Feature: Illuminated: No. Application: Traffic Light: No. Feature: Quick Disconnect: Yes. Wireless: No. USB: No
