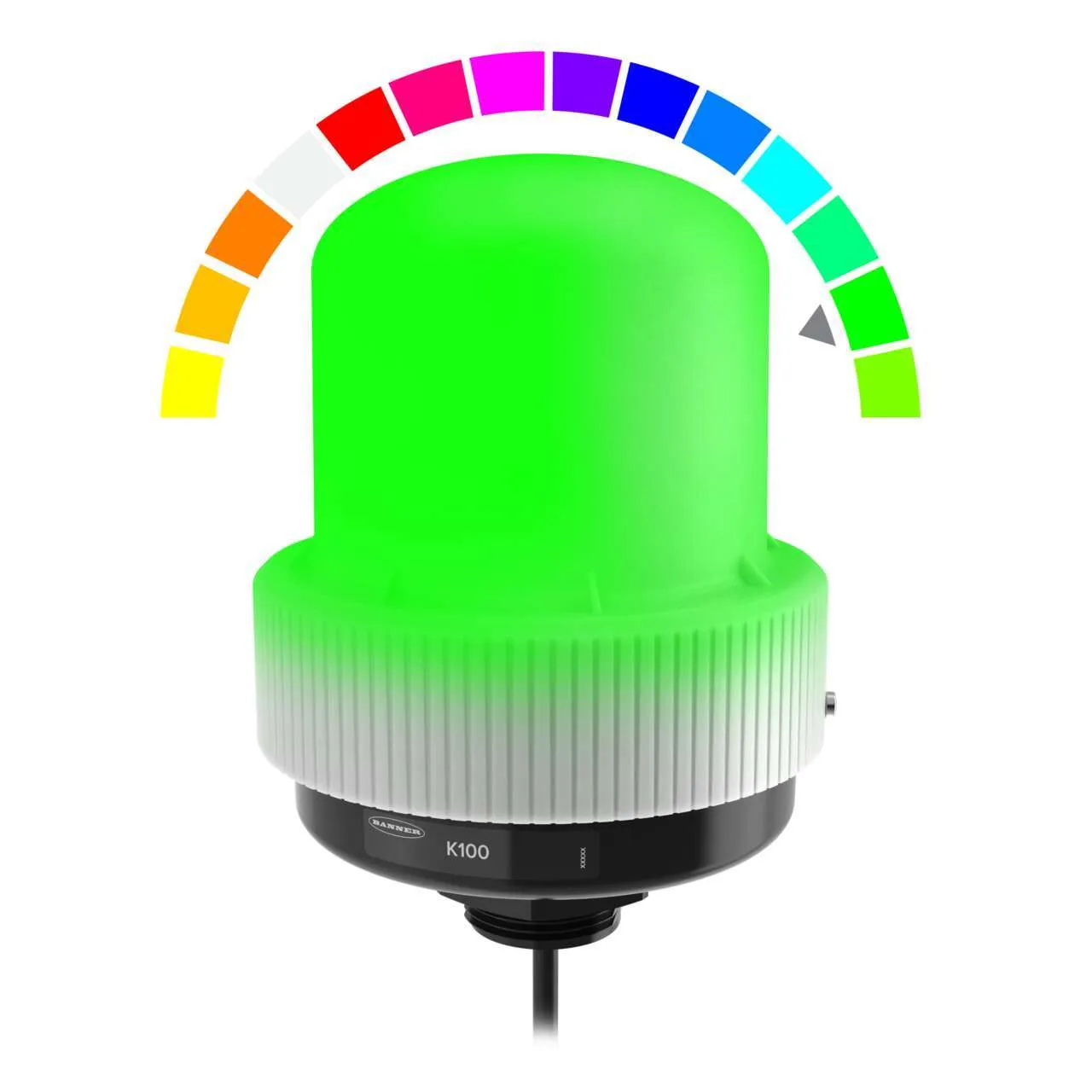

Banner Engineering K100PLZRGB7

K100 Pro Indicator: RGB Beacon. Part number: 813076. model: K100PLZRGB7. part_number: 813076. list_price: 309 USD. is_new: 0. is_in_stock: 1. product_manual: —. BAN_Power: AC. BAN_Supply_Voltage: 100-240 V ac. BAN_NumberOfColors: 14. BAN_Connection: Cable. BAN_Audible: No. BAN_CableLength: 2. BAN_LI_Dimming_Option: —. BAN_IndicationIntensity: High Brightness. Power: AC. PFM Input: No. Non-Illuminated: No. Cable Length (m): 2. IP Rating: IP66, IP69K. Display: No. NEMA / UL Type Rating: UL 4X. Supply Voltage: 100-240 V ac. Item Status: RELEASED. Housing Style: Base Mount – Dome Window. Primary Housing Material: Polycarbonate. Indication: Yes. Illumination: No. Mounting Thread: M36 x 2.0. Color Input Control: Multiple (One or more wires/color, enables more colors than input wires). Number of Colors: 14. Product Size (mm): 100. Color Technology: RGB Configurable. Color Option 1: Red. Animation Option 1: Programmable. Connection: Cable. Lumens Color 1: 36. Color 1 – Wavelength/Color Temp/Coordinates: 620 nm. Color Option 2: Green. Animation Option 2: Programmable. Lumens Color 2: 73. Color 2 – Wavelength/Color Temp/Coordinates: 525 nm. Color Option 3: Blue. Animation Option 3: Programmable. Lumens Color 3: 14. Color 3 – Wavelength/Color Temp/Coordinates: 467 nm. Color Option 4: Yellow. Animation Option 4: Programmable. Lumens Color 4: 91. Color 4 – Wavelength/Color Temp/Coordinates: 575 nm. Color Option 5: White. Animation Option 5: Programmable. Lumens Color 5: 112. Color 5 – Wavelength/Color Temp/Coordinates: 6000K. Color Option 6: Magenta. Animation Option 6: Programmable. Lumens Color 6: 47. Color 6 – Wavelength/Color Temp/Coordinates: 0.387, 0.182. Color Option 7: Cyan. Lumens Color 7: 83. Color 7 – Wavelength/Color Temp/Coordinates: 492 nm. I/O Block Compatible: No. Physical Dimensions (LxWxH or DxH mm): 118.5 x 173.2. Environmental Rating: IP69K. Eye Shield: No. Max Op. Relative Humidity Non-Condensing (%): 90% @ 50°C. High Temperature (up to 100 C): 60. Min Op. Temperature (C): -40. Primary Housing Color: Black. Primary Window Material: Polycarbonate Diffused. Feature: Audible: No. Feature: Cascade: No. Feature: Chemical Resistant: No. Indication Intensity: High Brightness. Multi-Color Device: Simultaneous Colors On. Application: Traffic Light: No. Feature: Quick Disconnect: No. IO Link: No. Modbus RTU: No. Wireless: No. USB: No. Pro-Editor Compatible (Discrete): No. EPLAN Status: Published. EPLAN Original Sent Date: 06/12/2025
