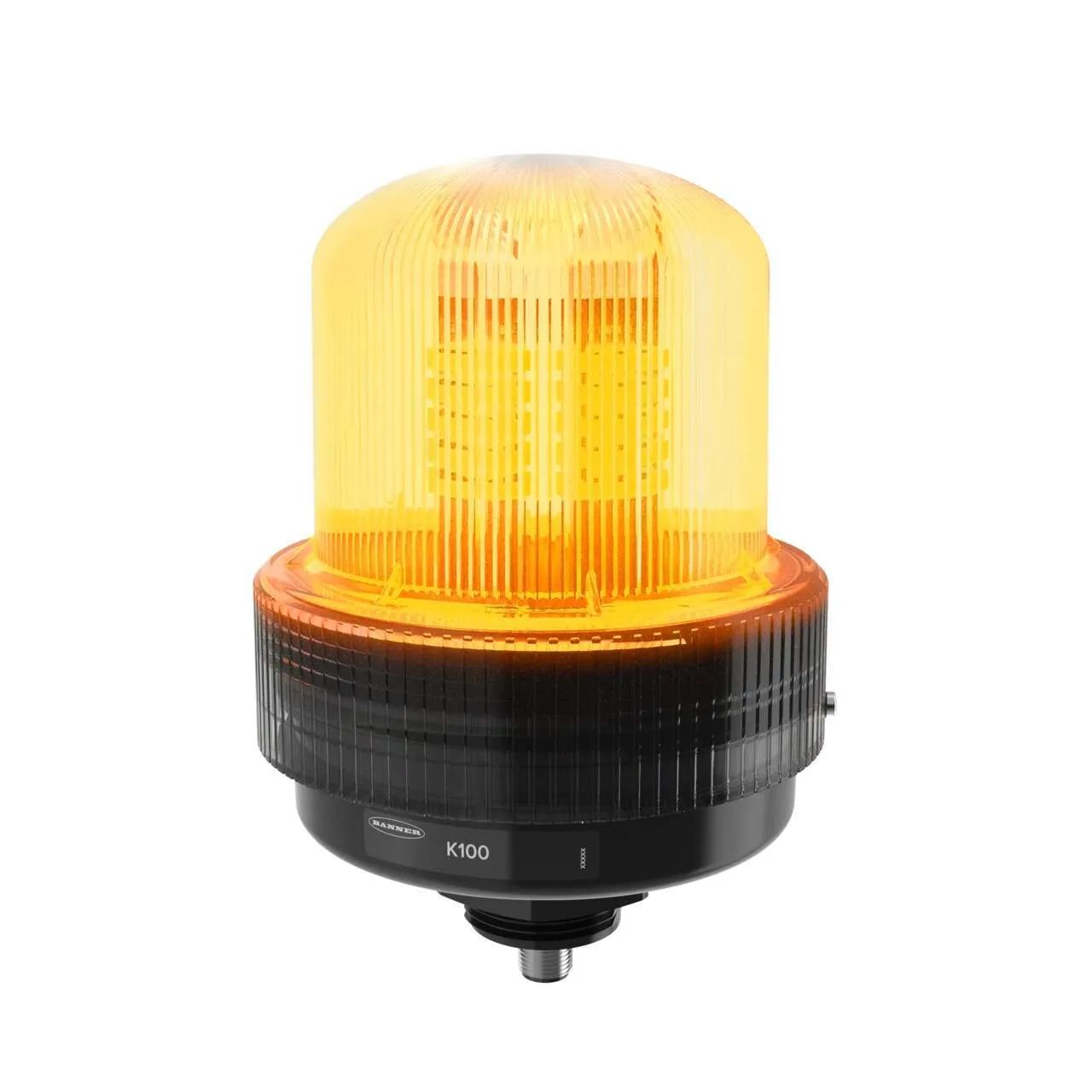

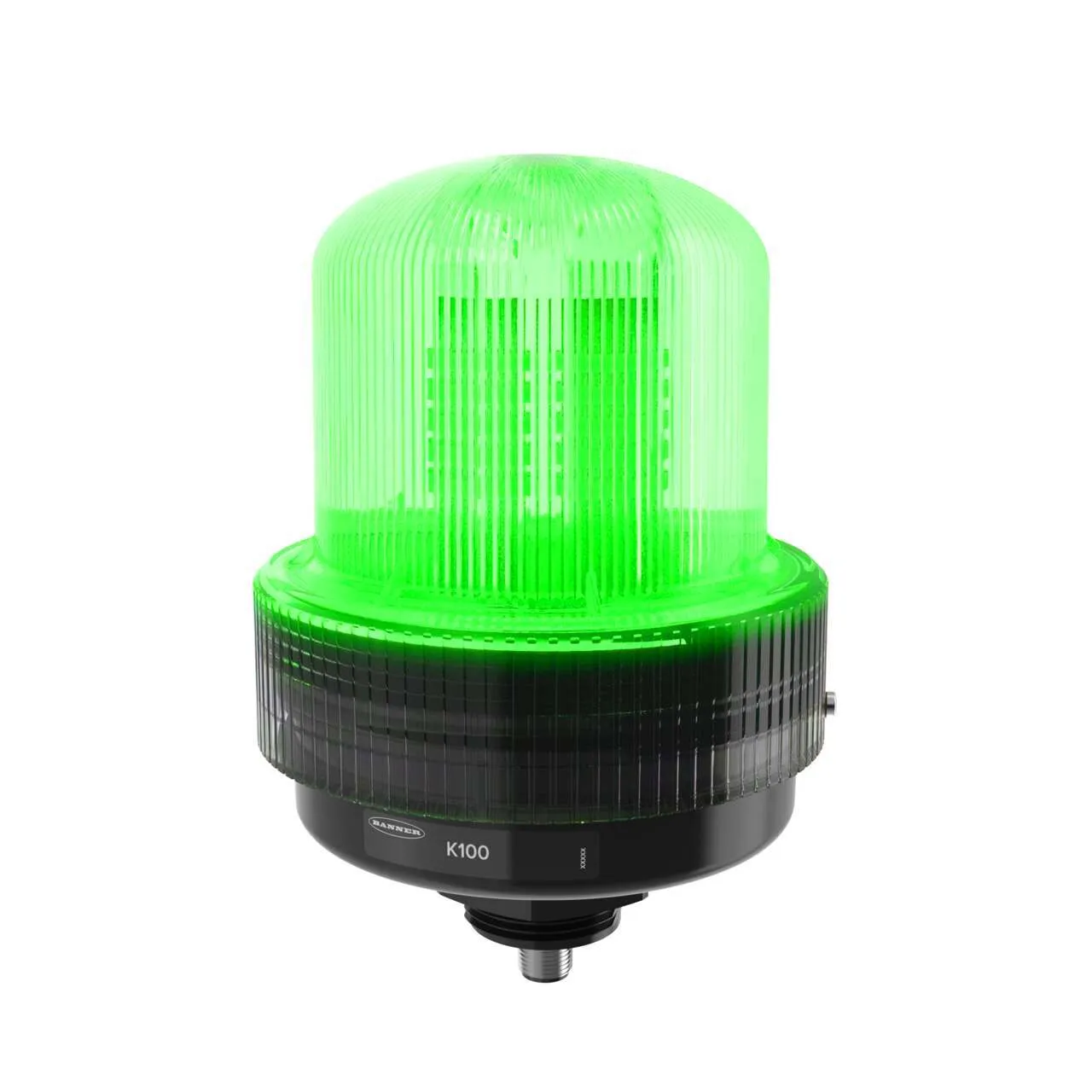

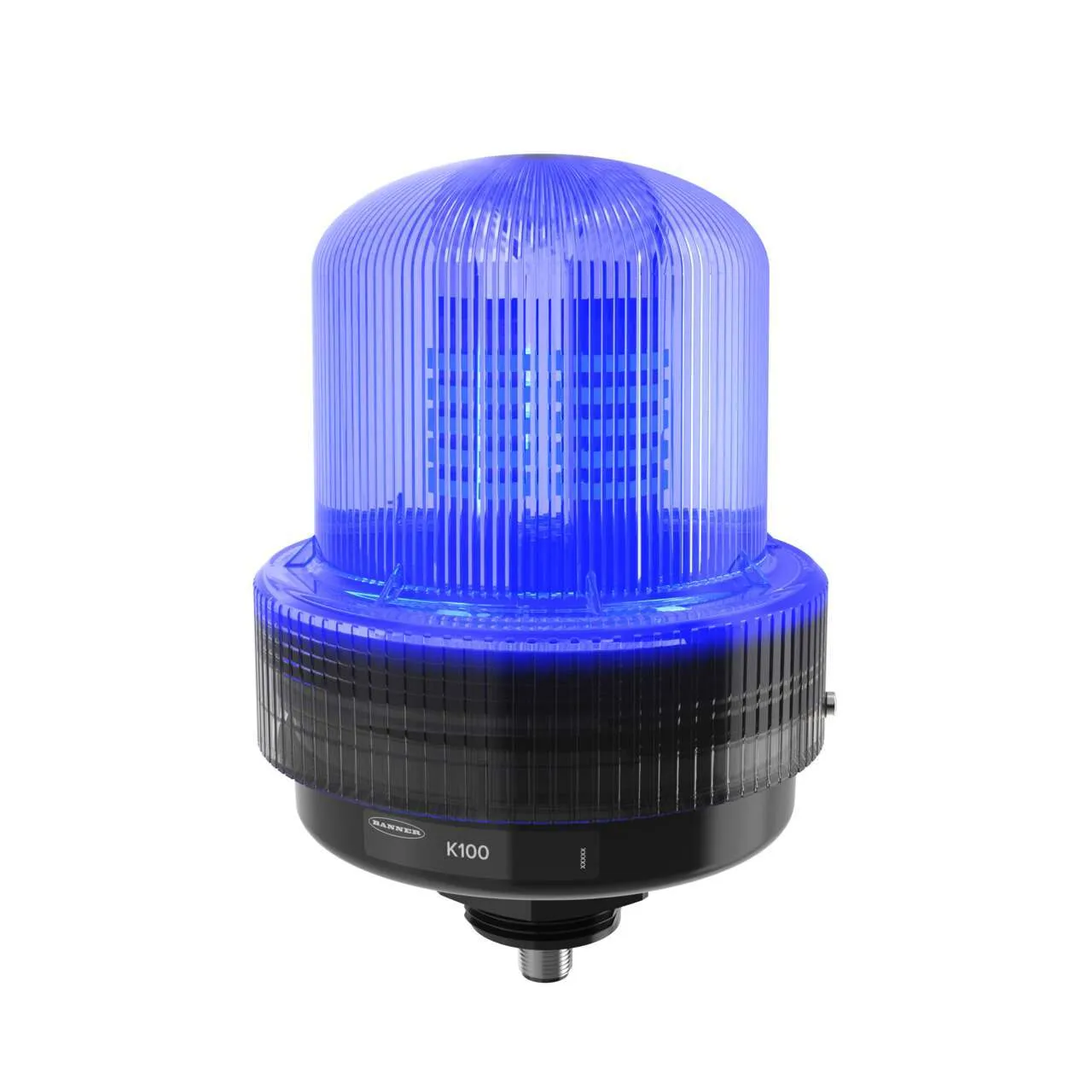

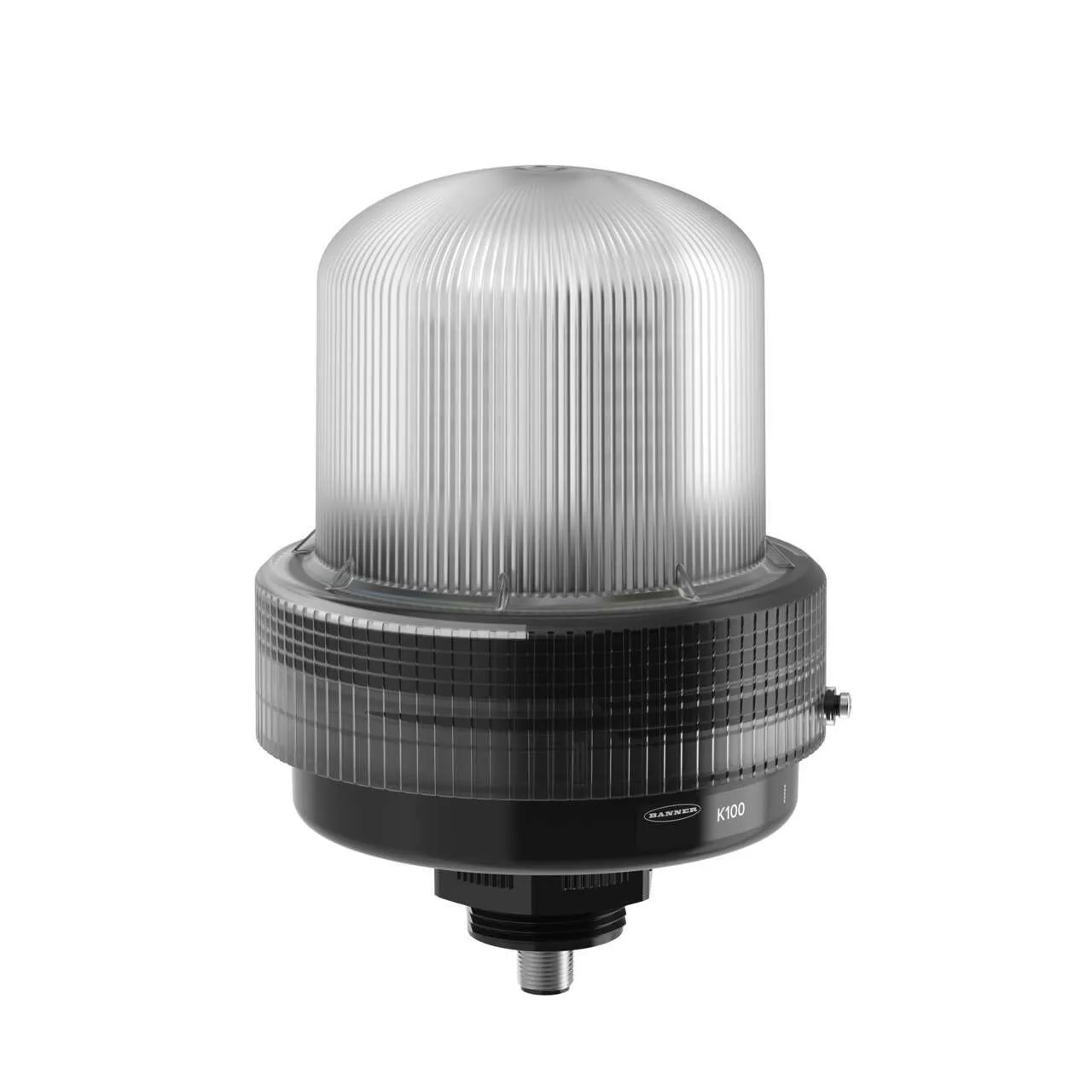

Banner Engineering K100PBLGYBQ

K100 Pro Daylight Visible: 3 Color Beacon. Part number: 815069. model: K100PBLGYBQ. part_number: 815069. list_price: 367 USD. is_new: 0. is_in_stock: 1. product_manual: https://info.bannerengineering.com/cs/groups/public/documents/literature/206058.pdf. BAN_Power: DC. BAN_Supply_Voltage: 12-48 V dc. BAN_NumberOfColors: 3. BAN_Connection: Integral QD. BAN_Audible: No. BAN_CableLength: —. BAN_LI_Dimming_Option: Programmable. BAN_IndicationIntensity: High Brightness & Daylight Visible. Power: DC. PFM Input: No. Non-Illuminated: No. IP Rating: IP66, IP69K. Display: No. NEMA / UL Type Rating: UL 4X. Supply Voltage: 12-48 V dc. Item Status: RELEASED. Housing Style: Base Mount – Dome Window. Primary Housing Material: Polycarbonate. Indication: Yes. Illumination: No. Mounting Thread: M36 x 2.0. Color Input Control: Individual (One wire/color, same number of colors as input wires). Number of Colors: 3. Product Size (mm): 100. Color Technology: Standard LED. Color Option 1: Green. Animation Option 1: Programmable. Connection: Integral QD. Lumens Color 1: 360. Quick Disconnect Type: M12. Color 1 – Wavelength/Color Temp/Coordinates: 528 nm. Color Option 2: Yellow. Animation Option 2: Programmable. Lumens Color 2: 525. Color 2 – Wavelength/Color Temp/Coordinates: 589 nm. Color Option 3: Blue. Animation Option 3: Programmable. Lumens Color 3: 165. Color 3 – Wavelength/Color Temp/Coordinates: 475 nm. Max Current Color (mA): 760. Dimming Option: Programmable. Wire Selectable Function: Programmable. Number of Input Pins/Conductors: 5. Input Type: Bimodal (PNP/NPN). I/O Block Compatible: Yes. Max Input Response Time (ms): 350. Physical Dimensions (LxWxH or DxH mm): 118.5 x 173.2. Eye Shield: No. Max Op. Relative Humidity Non-Condensing (%): 90% @ 50°C. High Temperature (up to 100 C): 60. Min Op. Temperature (C): -40. Storage Temp (C): -40 to 70. Primary Housing Color: Black. Primary Window Material: Polycarbonate Clear. Feature: Audible: No. Feature: Cascade: No. Feature: Chemical Resistant: No. Indication Intensity: High Brightness & Daylight Visible. Multi-Color Device: Single Color On. Application: Traffic Light: No. Feature: Quick Disconnect: Yes. Wireless: No. USB: No. Pro-Editor Compatible (Discrete): Yes. EPLAN Status: Published. EPLAN Original Sent Date: 12/07/2024
