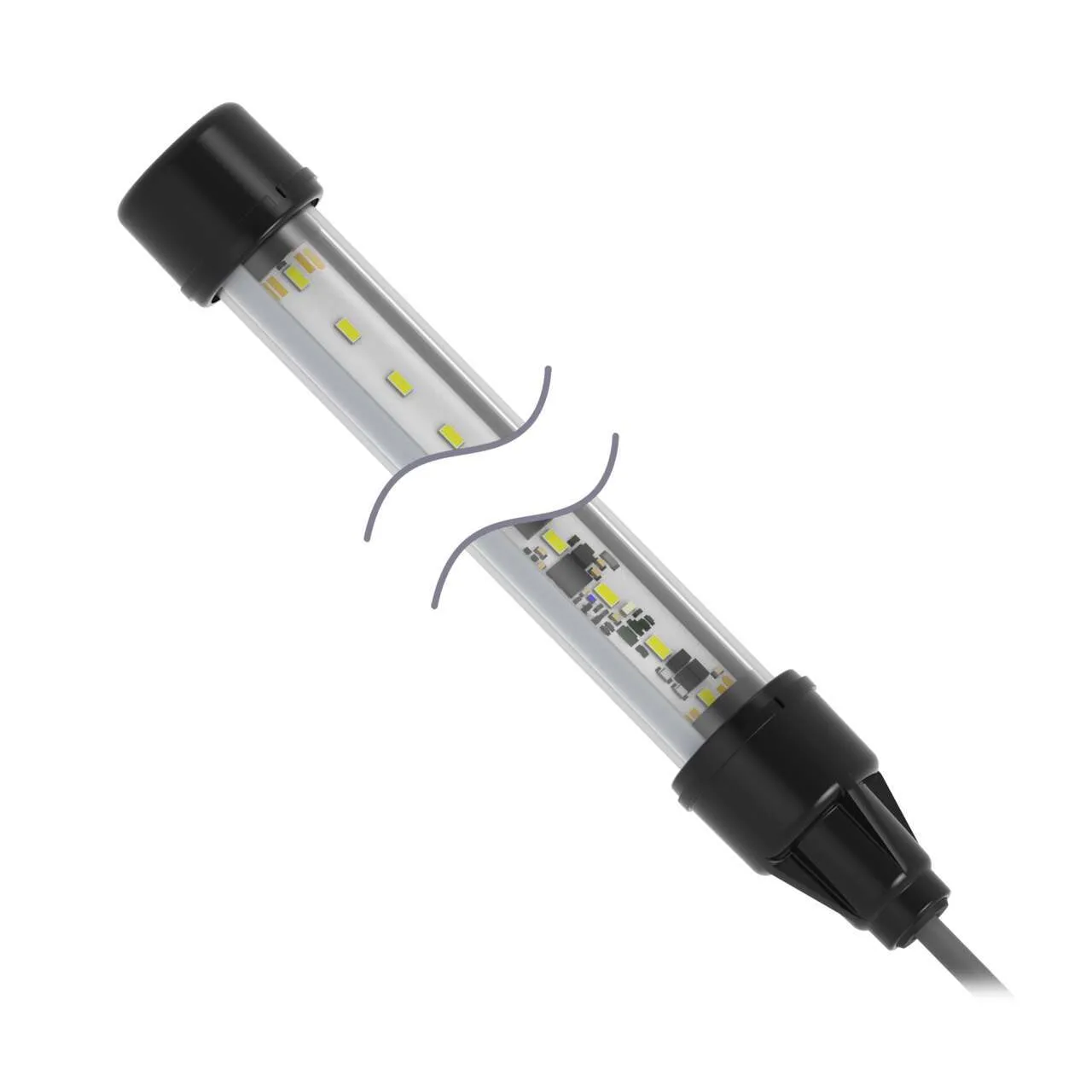

Banner Engineering HLS27DGYRXX3-285C24

HLS27 Hazardous Location Multicolor Strip Light; Length: 285 mm Voltage: 24 V dc; Environmental Rating: IP66; IP67 Colors: Green, Yellow, Red 2 m (6.5 ft) ITC-ER 4-wire Cable. Part number: 809245. Power: DC. Non-Illuminated: No. Cable Length (m): 2. IP Rating: IP66, IP67. Display: No. Supply Voltage: 24 V dc. Item Status: RELEASED. Housing Style: Linear Strip. Primary Housing Material: Polycarbonate. Indication: Yes. Illumination: Yes. Mounting Thread: No Thread. Color Input Control: Individual (One wire/color, same number of colors as input wires). Number of Colors: 3. Product Size (mm): 27. Color Technology: Standard LED. Color Option 1: Green. Animation Option 1: Solid On. Connection: Cable. Lumens Color 1: 425. Color 1 – Wavelength/Color Temp/Coordinates: 525 nm. Color Option 2: Yellow. Animation Option 2: Solid On. Lumens Color 2: 605. Color 2 – Wavelength/Color Temp/Coordinates: 580 nm. Color Option 3: Red. Animation Option 3: Solid On. Lumens Color 3: 195. Color 3 – Wavelength/Color Temp/Coordinates: 625 nm. Max Current Color (mA): 400. Number of Input Pins/Conductors: 4. I/O Block Compatible: No. Illuminated Length (LxWxH mm): 282.0. Physical Dimensions (LxWxH or DxH mm): 38.1 x 370.0. Environmental Rating: IP66; IP67. Eye Shield: No. Max Op. Relative Humidity Non-Condensing (%): 90% @ 50°C. High Temperature (up to 100 C): 60. Min Op. Temperature (C): -40. Storage Temp (C): -40 to 70. Primary Window Material: Polycarbonate Clear. Feature: Washdown Rated: No. Feature: Hazardous Area: Yes. Feature: Audible: No. Feature: Cascade: No. Feature: Chemical Resistant: Yes. Feature: Illuminated: No. Multi-Color Device: Single Color On. Application: Traffic Light: No. Feature: Quick Disconnect: No. Wireless: No. USB: No
