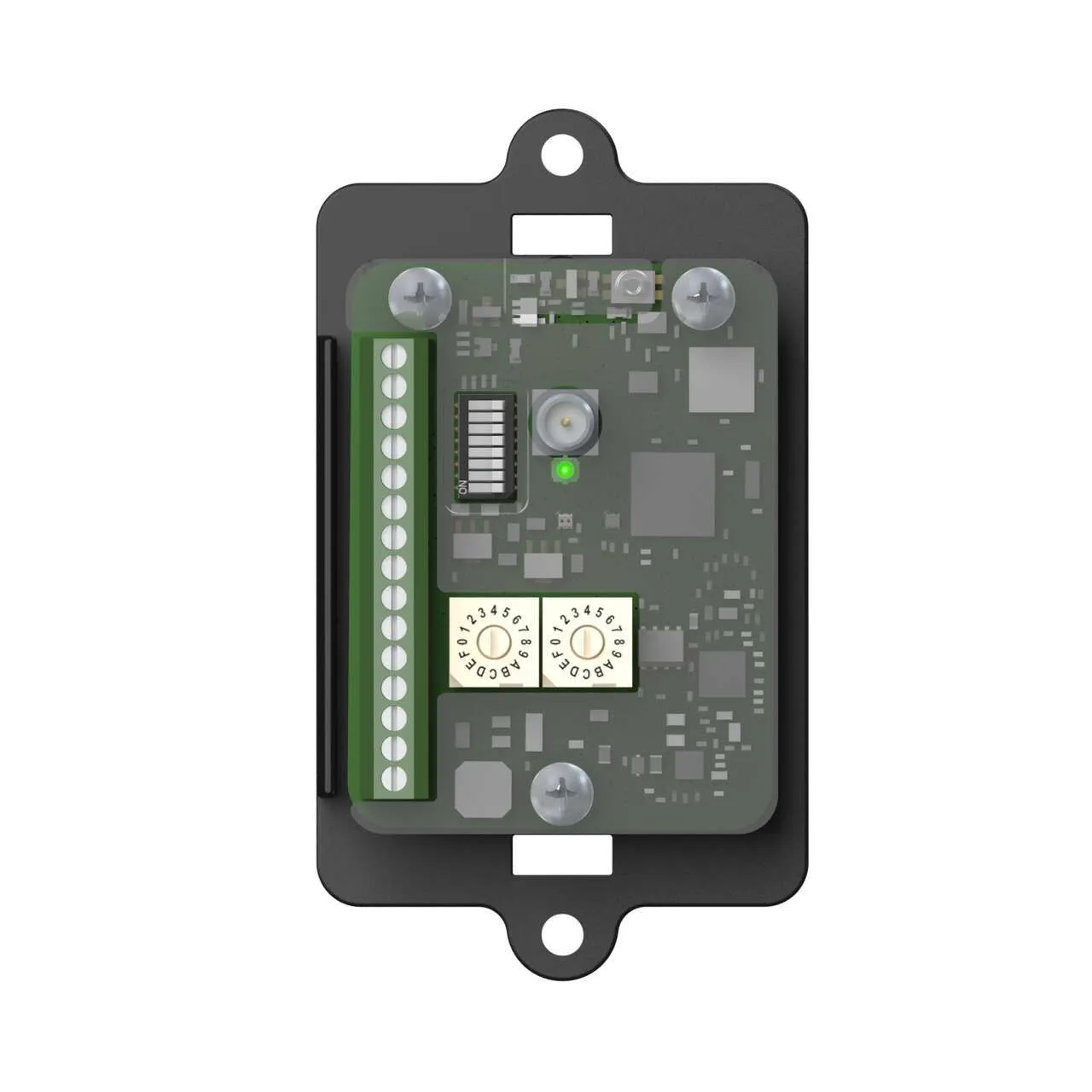

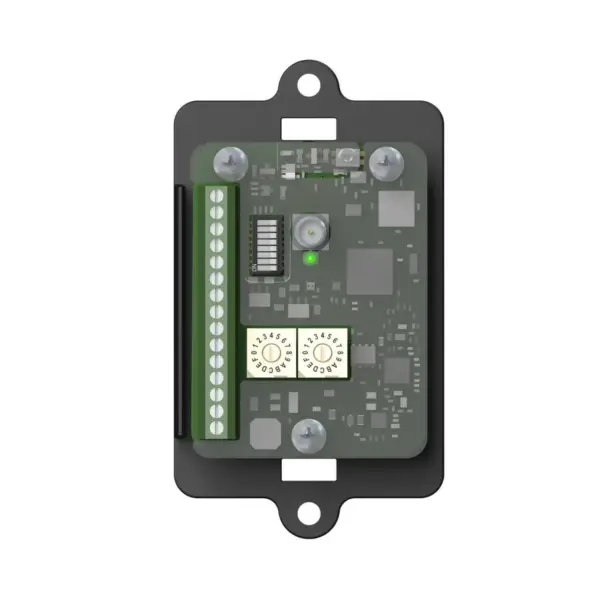

Banner Engineering DX80DR9M-HB1

MultiHop 900 MHz 1 W. Part number: 17420. model: DX80DR9M-HB1. part_number: 17420. list_price: 481 USD. is_new: 0. is_in_stock: 0. product_manual: https://info.bannerengineering.com/cs/groups/public/documents/literature/155289.pdf. BAN_Wireless_RadioFrequency: 900 MHz. BAN_IO_General: Analog & Discrete. BAN_Supply_Voltage: 10-30 V dc or 3.6-5.5 V dc low power option. Custom_Group_1579_1579: Modbus RTURS-485. BAN_Cert_Korea: —. Power: Flex Power. NEMA / UL Type Rating: NEMA 4X. Supply Voltage: 10-30 V dc or 3.6-5.5 V dc low power option. Item Status: RELEASED. Housing Style: Board Level. Device Type: Multihop Data Radio. Input/Output: Analog & Discrete. Occupancy: No. Analog Inputs: Yes. Analog Outputs: No. Discrete Inputs: Yes. Discrete Outputs: Yes. Input Details: 2 Sinking Discrete,2 0-20mA analog. Output Details: 2 NMOS Discrete. Intrinsically Safe: No. Max Temp Operating Conditions (C): 80. LCD Display: No. Min Temp Operating Conditions (C): -20. Max Operating Temperature (C): 80. Min Operating Temperature (C): -20. Ships With Battery: No. Point-to-Multipoint Topology: Yes. Point-to-Point Topology: Yes. Star Topology: Yes. Tree Topology: Yes. Feature: Hazardous Area: Yes. EtherNet/IP: No. Modbus RTU: Yes. Modbus/TCP: No. PROFINET: No. RS-232: No. RS-485: Yes. Wireless: Yes. Wireless Radio Frequency: 900 MHz. 1-wire Serial Interface: No. Cert: Australia/New Zealand: Yes. Cert: Thailand: Yes
