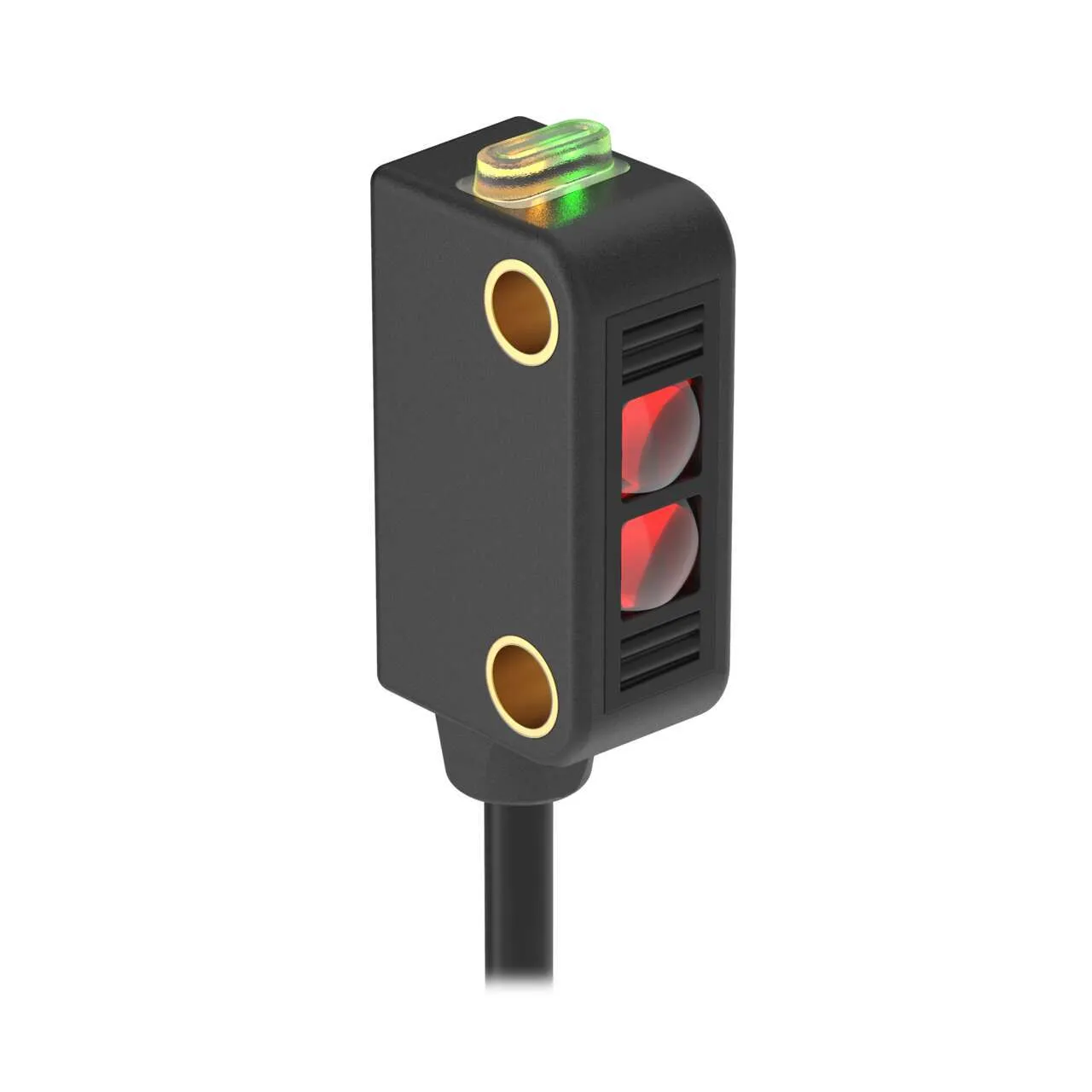

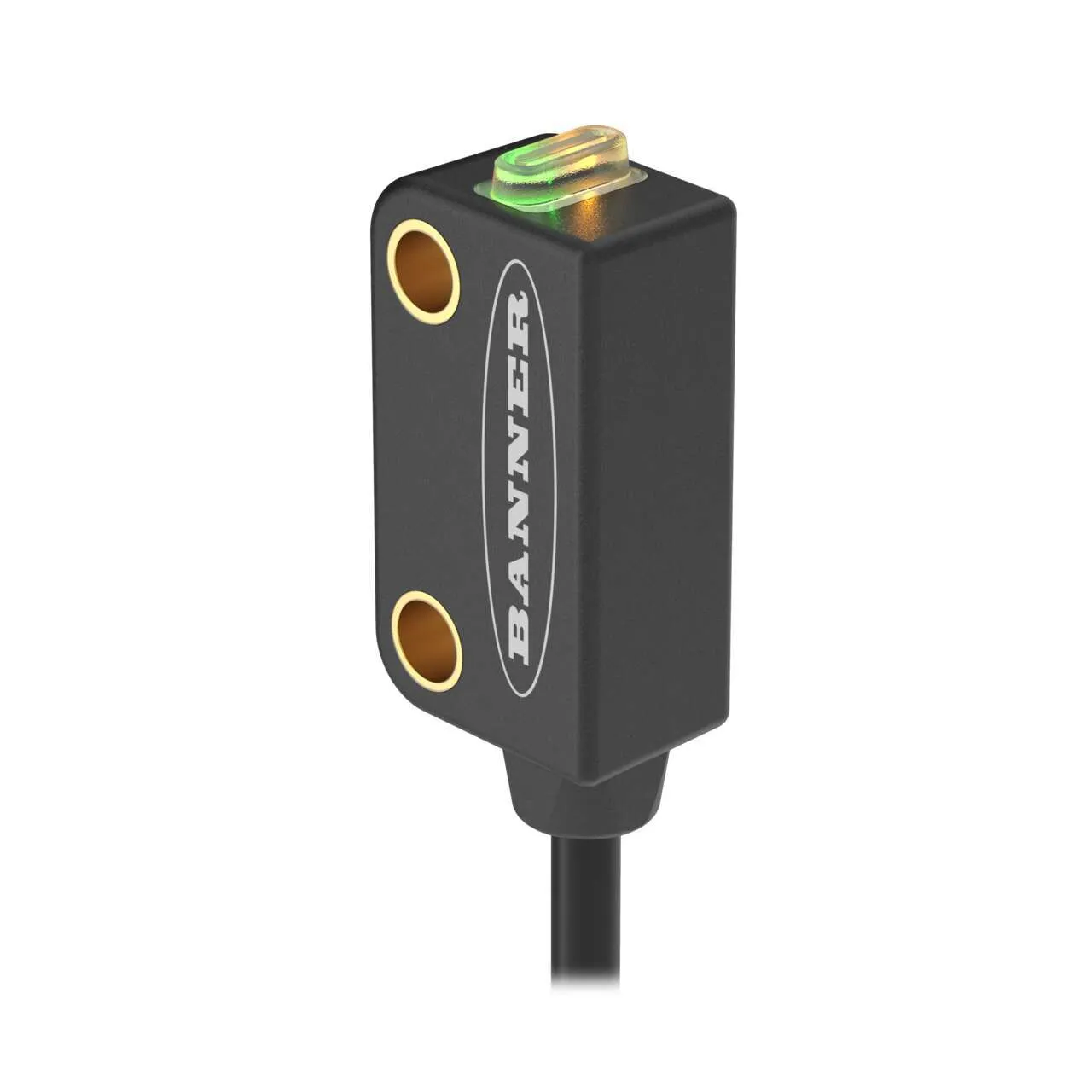

Banner Engineering DQ126EQ

WORLD-BEAM DQ12 Series: Emitter. Part number: 85814. model: DQ126EQ. part_number: 85814. list_price: 70 USD. is_new: 0. is_in_stock: 1. product_manual: https://info.bannerengineering.com/cs/groups/public/documents/literature/213155.pdf. BAN_Sensing_Mode_General: Opposed. BANSensors_SensRange: 3000. BANSensors_Output: —. BANSensors_Operation: N/A. BAN_Connection: Pigtail QD. BAN_QDType: M8. BAN_CableLength: 0.15. BANSensors_ResponseTime: 1.3 ON/0.7 OFF. BAN_Small_Spot: —. Power: DC. Sensing Beam: Visible Red LED. Cable Length (m): 0.15. IP Rating: IP67. Supply Voltage: 10-30 V dc. Item Status: RELEASED. Sensing Mode (General): Opposed. Sensing Mode (Detailed): Emitter. Housing Style: Rectangular. Primary Housing Material: Polyamide. Max Sensing Distance (mm): 3000. Connection: Pigtail QD. Quick Disconnect Type: M8. Operation: N/A. Min Op. Temperature (C): -20. Max Op. Temp. (C): 55. Output response time (ms): 1.3 ON/0.7 OFF. Special Feature: Intrinsically Safe: No. Special Feature: Remote Teach: No. Special Feature: Water Detection: No. Sensing Beam Wavelength: 645. Delay at Power-up (ms): 120. Repeatability (µs): 125. Number of Pins: 2. Max Op. Relative Humidity [%]: 95% @ 50°C. Lens Material: Polycarbonate. Adjustments: N/A. Indicator: LEDs. Opposed Mode Emitter/Receiver: Emitter. Feature: Washdown Rated: No. Feature: Clear Object Detection: No. Feature: Timing (Hold/Delay): No. Feature: Audible: No. Feature: Chemical Resistant: No. Feature: Quick Disconnect: Yes. Feature: Health/Marginal Signal Output: No. DeviceNet: No
