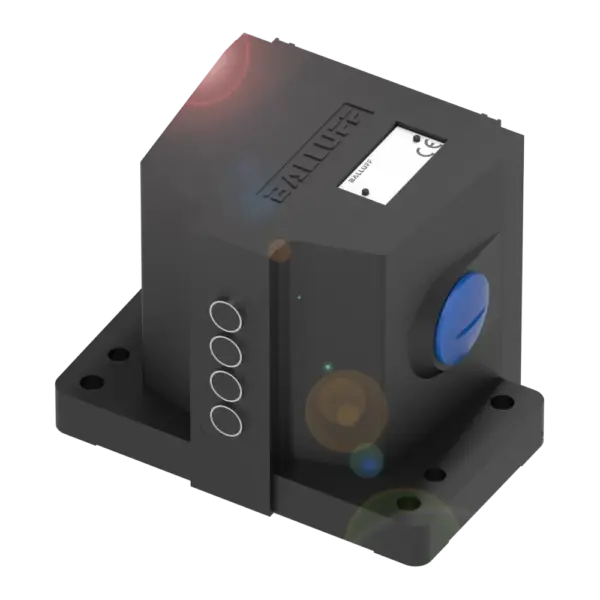

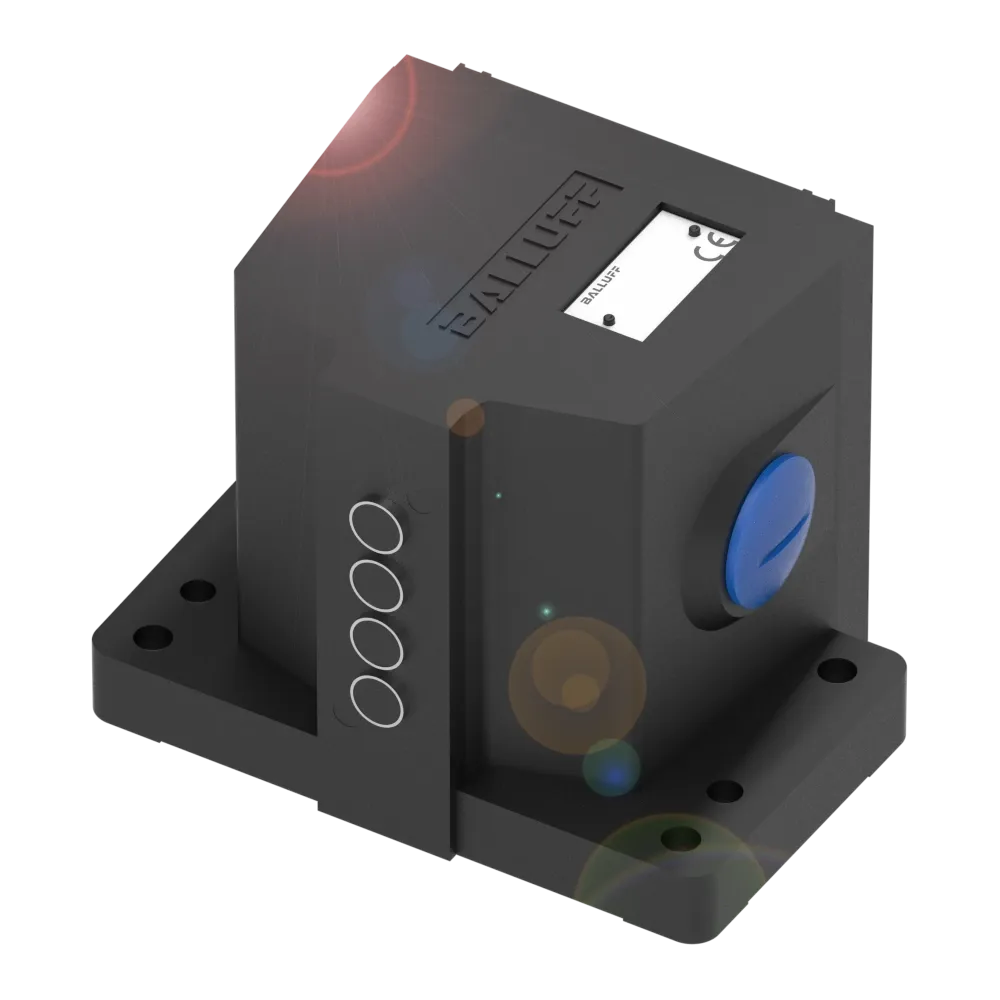

Balluff BNS03C1
Dimension: 120 x 140 x 86.5 mm. Housing material: Aluminium, Anodized. Version: Inductive. Operating principle: 1-8. Switch position: Inductive. Range: 2 mm. Switching frequency: 1-8. Switch position:…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Dimension: 120 x 140 x 86.5 mm. Housing material: Aluminium, Anodized. Version: Inductive. Operating principle: 1-8. Switch position: Inductive. Range: 2 mm. Switching frequency: 1-8. Switch position: 1500 Hz. Continuous current: 1-8. Switch position: 0.2 A. Rated operating voltage Ue: 1-8. Switch position: 24 V DC. Installation: Vertical. Switch position spacing: 12 mm. Connection type: 1-8. Switch position: Screw terminal. Ambient temperature: -25…70 °C. IP rating: IP67. Approval/Conformity: CEUKCAWEEE
Specification
Key features

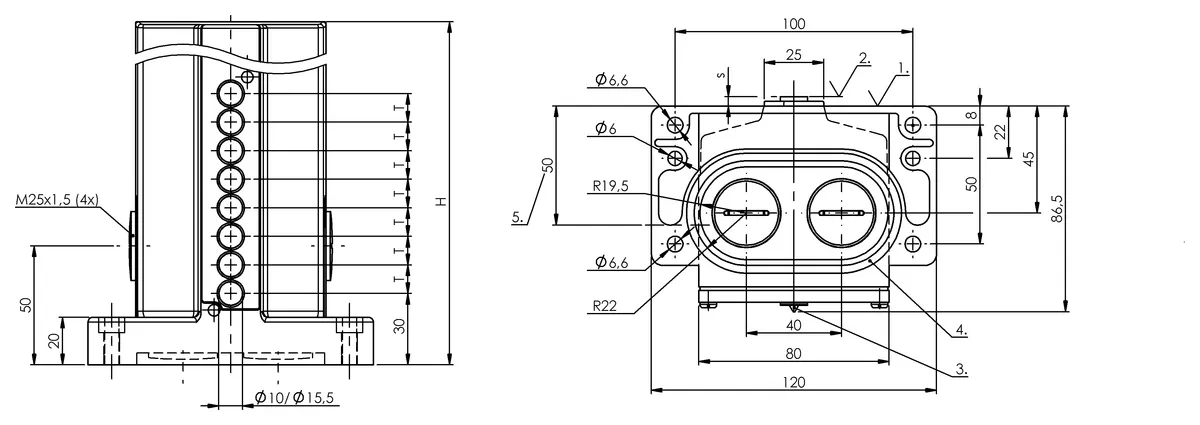

| Dimension | 120 x 140 x 86.5 mm |
|---|---|
| Housing material | Aluminium, Anodized |
| Version | Inductive |
| Operating principle | 1-8. Switch position: Inductive |
| Range | 2 mm |
| Switching frequency | 1-8. Switch position: 1500 Hz |
| Continuous current | 1-8. Switch position: 0.2 A |
| Rated operating voltage Ue | 1-8. Switch position: 24 V DC |
| Installation | Vertical |
| Switch position spacing | 12 mm |
| Connection type | 1-8. Switch position: Screw terminal |
| Ambient temperature | -25...70 °C |
| IP rating | IP67 |
| Approval/Conformity | CEUKCAWEEE |
