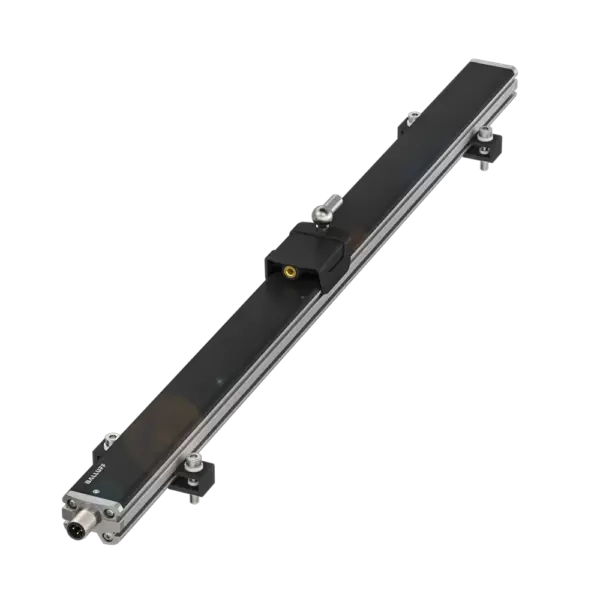

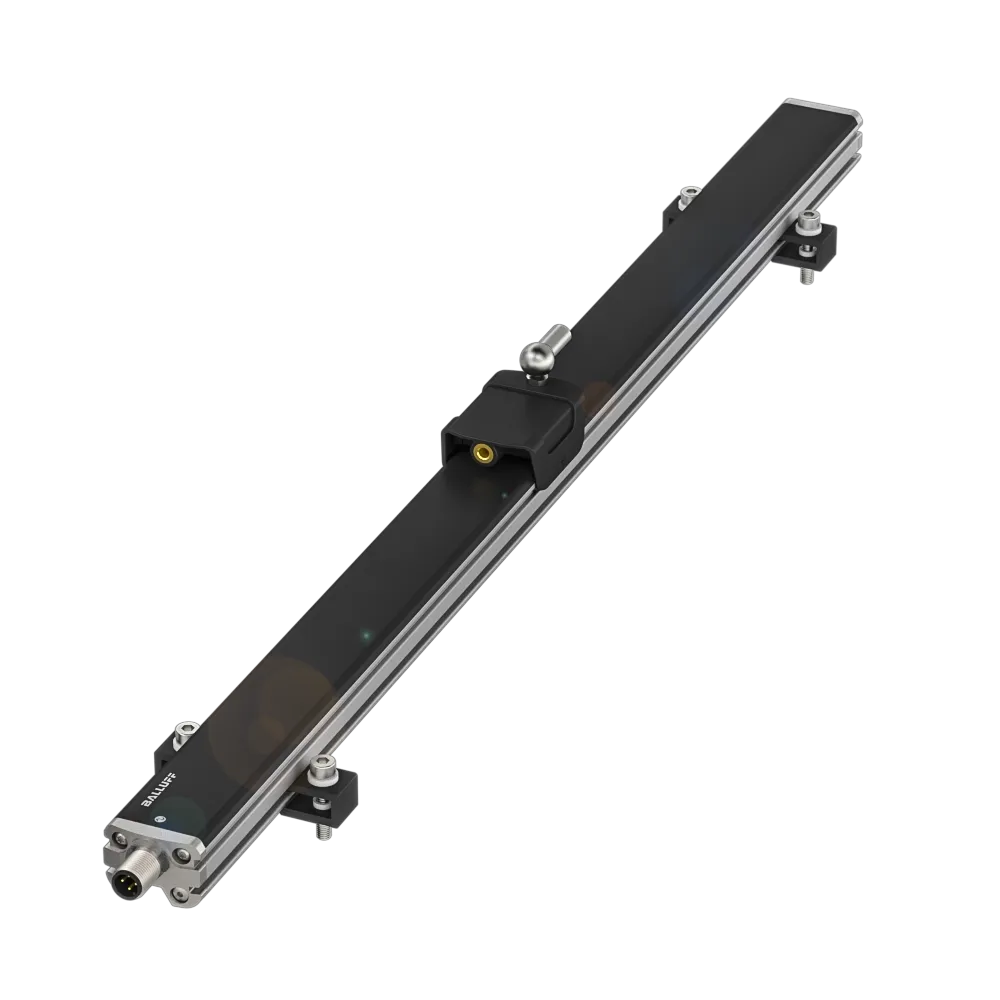

Balluff BIR0008
Connection: Connector, M12x1, 4-pin. Housing material: Aluminium and PBT-GF30, Anodized. Measuring length: 500 mm. Interface: IO-Link: V1.1linear rising/falling. Output characteristic: linear rising/f…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Connection: Connector, M12x1, 4-pin. Housing material: Aluminium and PBT-GF30, Anodized. Measuring length: 500 mm. Interface: IO-Link: V1.1linear rising/falling. Output characteristic: linear rising/falling. Operating voltage Ub: 18…30 VDC. Ambient temperature: -40…85 °C. IP rating: IP67, with connector. Approval/Conformity: CEcULusUKCAWEEE
Specification
Key features
| Connection | Connector, M12x1, 4-pin |
|---|---|
| Housing material | Aluminium and PBT-GF30, Anodized |
| Measuring length | 500 mm |
| Interface | IO-Link: V1.1linear rising/falling |
| Output characteristic | linear rising/falling |
| Operating voltage Ub | 18...30 VDC |
| Ambient temperature | -40...85 °C |
| IP rating | IP67, with connector |
| Approval/Conformity | CEcULusUKCAWEEE |
