Balluff BIP000E
Dimension: 121 x 21 x 22 mm. Style Housing: block style. Connection: Connector, M8x1-Male, 4-pin. Housing material: PBT. Measuring range: 0…103 mm. Analog output: Analog, voltage 0…10 V Analog, cu…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Dimension: 121 x 21 x 22 mm. Style Housing: block style. Connection: Connector, M8x1-Male, 4-pin. Housing material: PBT. Measuring range: 0…103 mm. Analog output: Analog, voltage 0…10 V Analog, current 4…20 mA. Output characteristic: Adjustable. Repeat accuracy per BWN: ±80 µm. Non-linearity max.: ±300 µm. Operating voltage Ub: 16…30 VDC. Ambient temperature: -25…85 °C. IP rating: IP67. Approval/Conformity: CEUKCAcURusWEEE
Specification
Key features

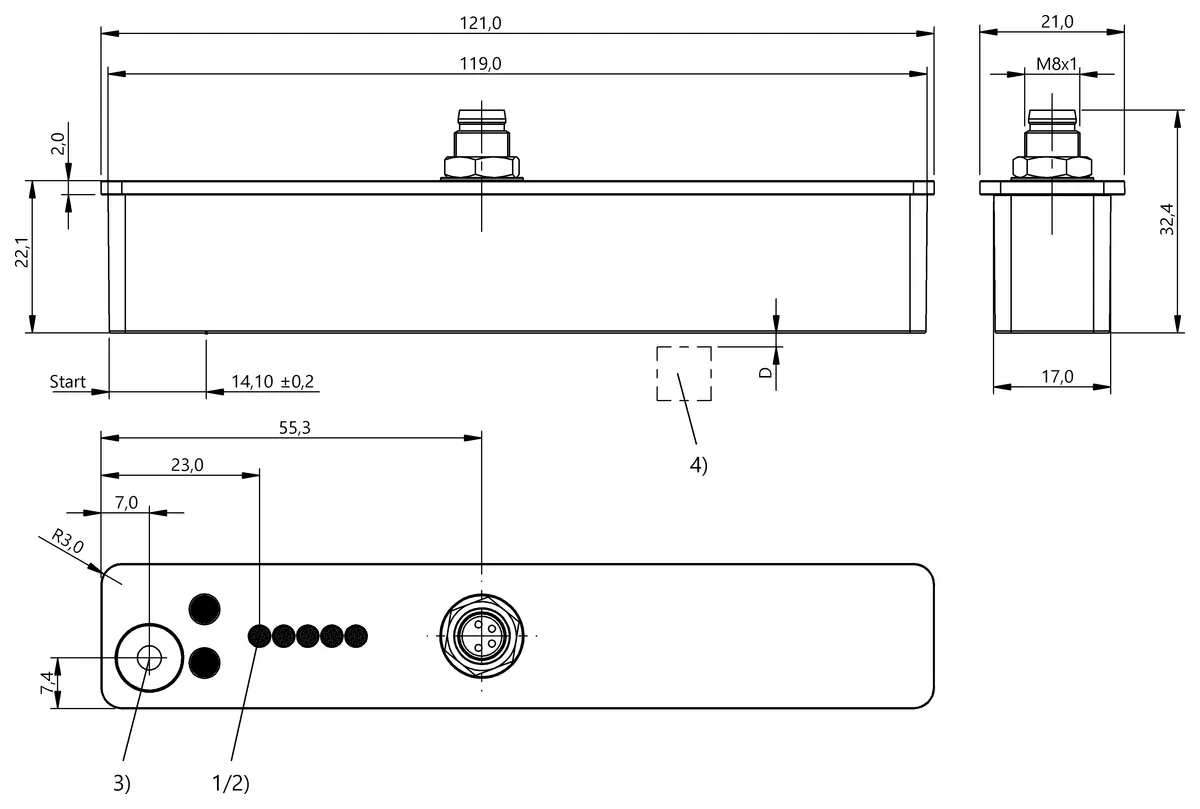

| Dimension | 121 x 21 x 22 mm |
|---|---|
| Style Housing | block style |
| Connection | Connector, M8x1-Male, 4-pin |
| Housing material | PBT |
| Measuring range | 0...103 mm |
| Analog output | Analog, voltage 0...10 V Analog, current 4...20 mA |
| Output characteristic | Adjustable |
| Repeat accuracy per BWN | ±80 µm |
| Non-linearity max. | ±300 µm |
| Operating voltage Ub | 16...30 VDC |
| Ambient temperature | -25...85 °C |
| IP rating | IP67 |
| Approval/Conformity | CEUKCAcURusWEEE |
