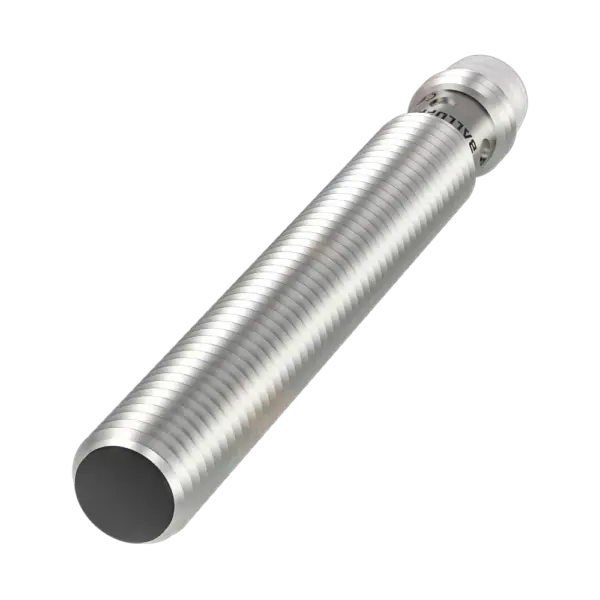

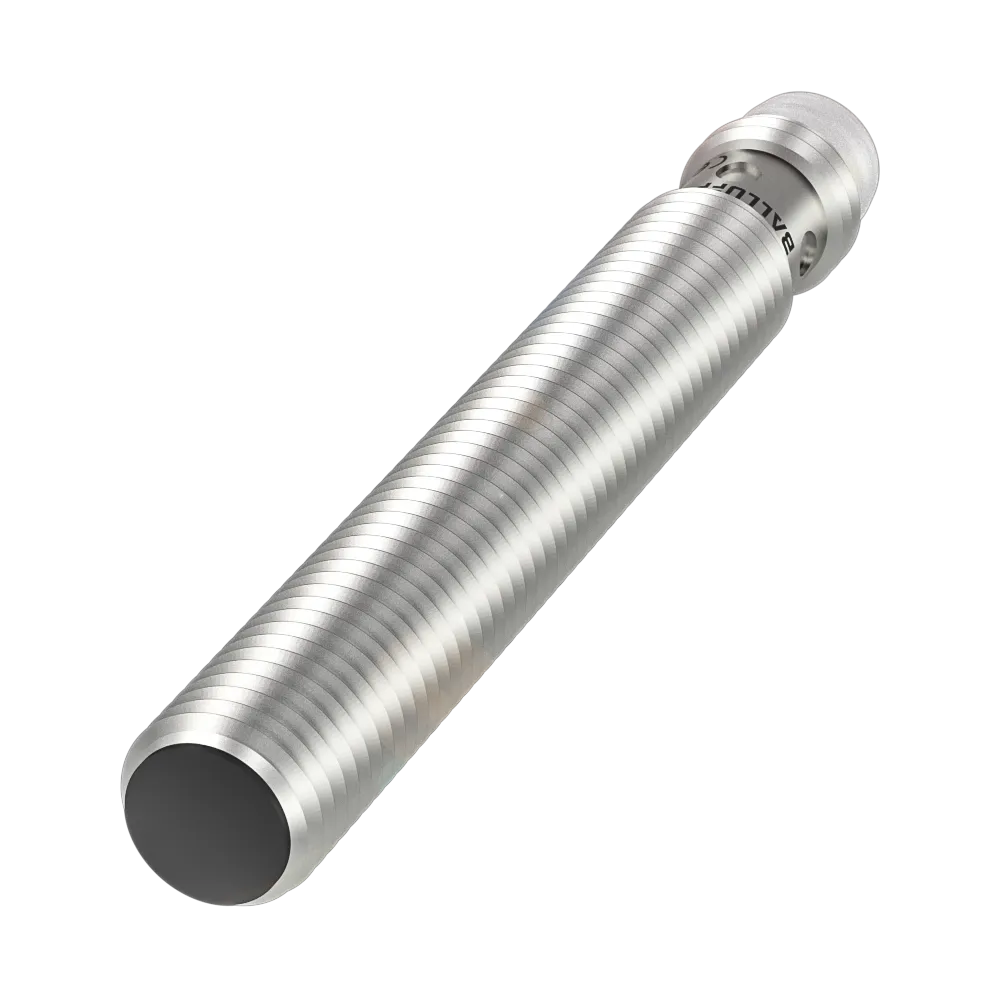

Balluff BES05ZY
Dimension: Ø 8 x 60 mm. Style Housing: M8x1. Installation: for flush mounting. Range: 1.5 mm. Switching output: PNP normally open (NO). Switching frequency: 900 Hz. Housing material: Brass, Nickel-fre…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Dimension: Ø 8 x 60 mm. Style Housing: M8x1. Installation: for flush mounting. Range: 1.5 mm. Switching output: PNP normally open (NO). Switching frequency: 900 Hz. Housing material: Brass, Nickel-free coated. Material sensing surface: PBT. Connection: Connector, M8x1-Male, 3-pin. Operating voltage Ub: 10…30 VDC. Ambient temperature: -25…70 °C. Magnetic field immune: magnetic field immune (AC/DC). IP rating: IP68. Approval/Conformity: CEUKCAWEEEcULus. Additional features: Factor 1weld-immune (magnetic field 100kA/m)
Specification
Key features

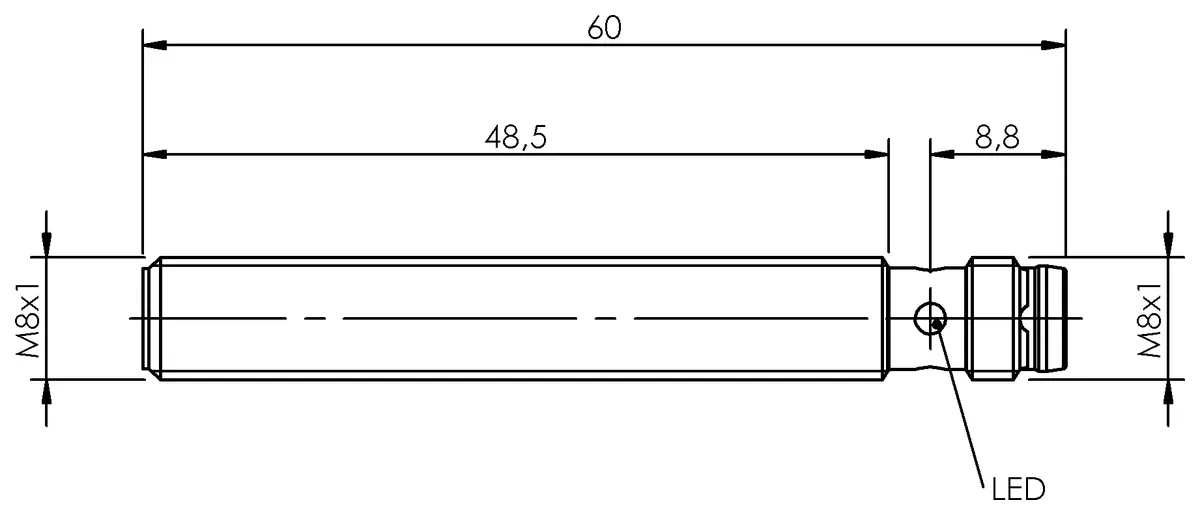

| Dimension | Ø 8 x 60 mm |
|---|---|
| Style Housing | M8x1 |
| Installation | for flush mounting |
| Range | 1.5 mm |
| Switching output | PNP normally open (NO) |
| Switching frequency | 900 Hz |
| Housing material | Brass, Nickel-free coated |
| Material sensing surface | PBT |
| Connection | Connector, M8x1-Male, 3-pin |
| Operating voltage Ub | 10...30 VDC |
| Ambient temperature | -25...70 °C |
| Magnetic field immune | magnetic field immune (AC/DC) |
| IP rating | IP68 |
| Approval/Conformity | CEUKCAWEEEcULus |
| Additional features | Factor 1weld-immune (magnetic field 100kA/m) |
