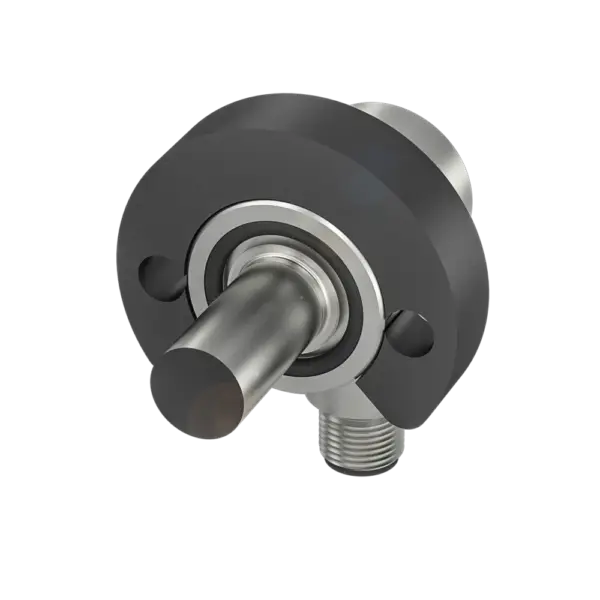

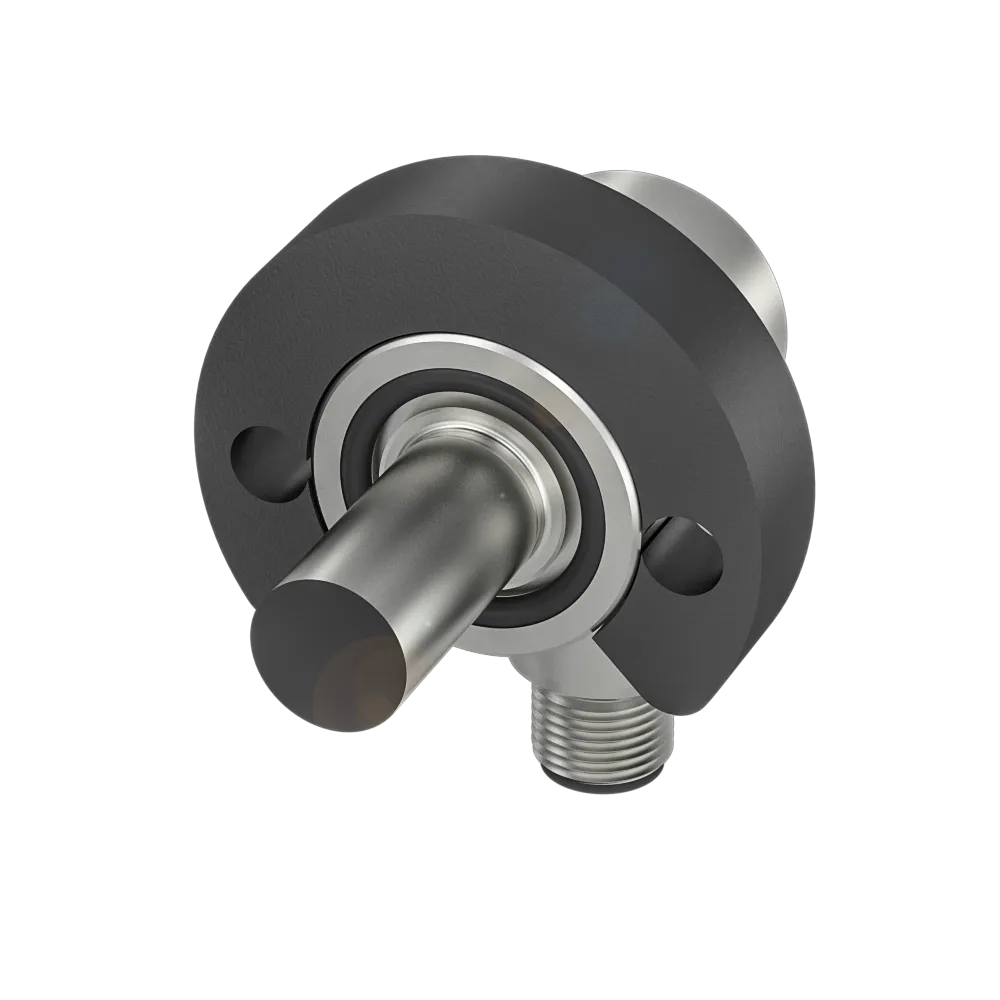

Balluff BES05Z2
Dimension: Ø 12.7 mm x 1.25 ″. Style Housing: Ø 12.7 mm. Installation: for flush mounting. Range: 2 mm. Switching output: PNP/NPN normally open (NO). Switching frequency: 30 Hz. Housing material: Zinc…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Dimension: Ø 12.7 mm x 1.25 ″. Style Housing: Ø 12.7 mm. Installation: for flush mounting. Range: 2 mm. Switching output: PNP/NPN normally open (NO). Switching frequency: 30 Hz. Housing material: ZincAluminium. Material sensing surface: Duroplast. Connection: Connector, M12x1-Male, 4-pin. Operating voltage Ub: 10…30 VDC. Ambient temperature: -25…70 °C. Pressure rating max.: 206 bar. IP rating: IP67. Approval/Conformity: CEcULusUKCAWEEE
Specification
Key features
| Dimension | Ø 12.7 mm x 1.25 ″ |
|---|---|
| Style Housing | Ø 12.7 mm |
| Installation | for flush mounting |
| Range | 2 mm |
| Switching output | PNP/NPN normally open (NO) |
| Switching frequency | 30 Hz |
| Housing material | ZincAluminium |
| Material sensing surface | Duroplast |
| Connection | Connector, M12x1-Male, 4-pin |
| Operating voltage Ub | 10...30 VDC |
| Ambient temperature | -25...70 °C |
| Pressure rating max. | 206 bar |
| IP rating | IP67 |
| Approval/Conformity | CEcULusUKCAWEEE |
