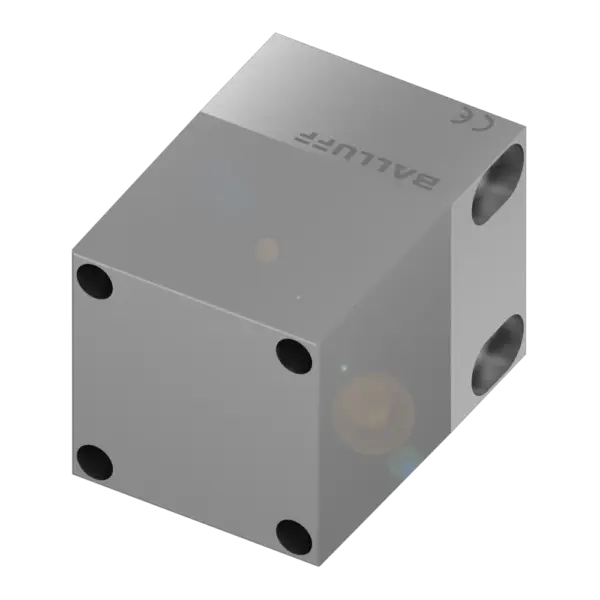

Balluff BES05N9
Dimension: 40 x 40 x 70.7 mm. Style Housing: 40×40. Installation: non-flush. Range: 25 mm. Switching output: PNP normally open (NO). Switching frequency: 100 Hz. Housing material: 1.4305 stainless ste…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Dimension: 40 x 40 x 70.7 mm. Style Housing: 40×40. Installation: non-flush. Range: 25 mm. Switching output: PNP normally open (NO). Switching frequency: 100 Hz. Housing material: 1.4305 stainless steelLCP. Material sensing surface: LCP. Connection: Connector, M12x1-Male, 4-pin. Operating voltage Ub: 10…35 VDC. Ambient temperature: 0…150 °C. IP rating: IP67. Approval/Conformity: CEWEEEUKCA
Specification
Key features

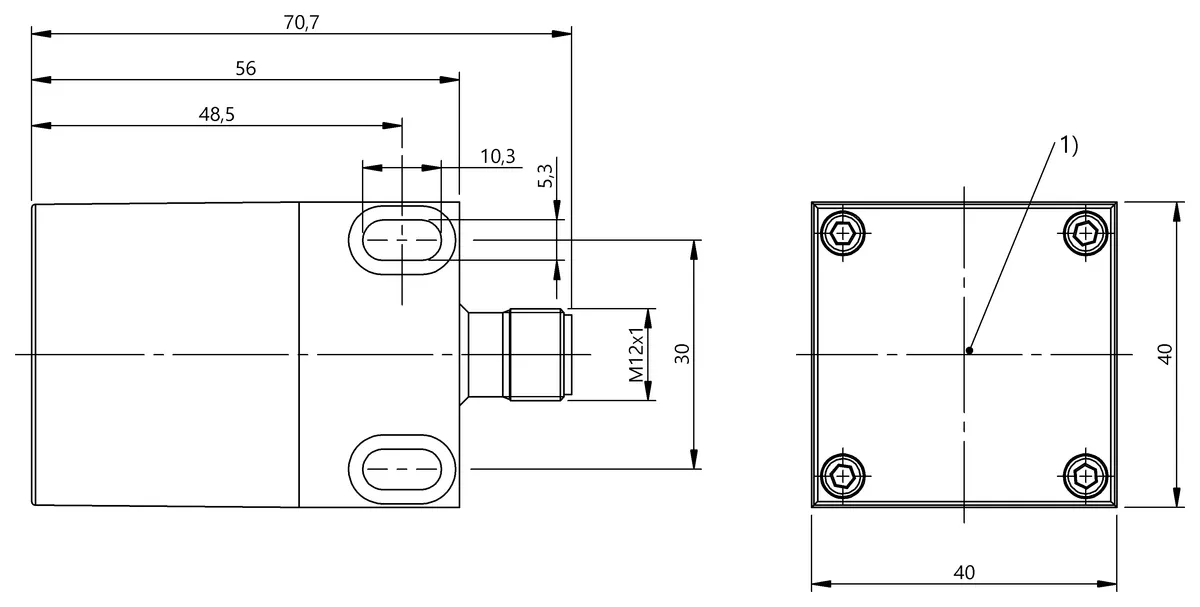

| Dimension | 40 x 40 x 70.7 mm |
|---|---|
| Style Housing | 40x40 |
| Installation | non-flush |
| Range | 25 mm |
| Switching output | PNP normally open (NO) |
| Switching frequency | 100 Hz |
| Housing material | 1.4305 stainless steelLCP |
| Material sensing surface | LCP |
| Connection | Connector, M12x1-Male, 4-pin |
| Operating voltage Ub | 10...35 VDC |
| Ambient temperature | 0...150 °C |
| IP rating | IP67 |
| Approval/Conformity | CEWEEEUKCA |
