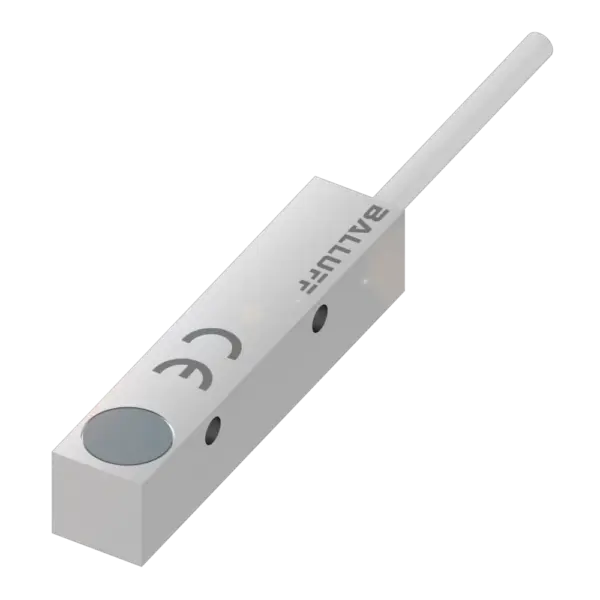

Balluff BES05N8
Dimension: 12 x 12 x 59 mm. Style Housing: 12×12. Installation: for flush mounting. Range: 4 mm. Switching output: PNP normally open (NO). Switching frequency: 500 Hz. Housing material: Stainless stee…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Dimension: 12 x 12 x 59 mm. Style Housing: 12×12. Installation: for flush mounting. Range: 4 mm. Switching output: PNP normally open (NO). Switching frequency: 500 Hz. Housing material: Stainless steel. Material sensing surface: LCP. Connection: Cable, 5.0 m, Silicone. Operating voltage Ub: 10…30 VDC. Ambient temperature: -25…130 °C. IP rating: IP65. Approval/Conformity: CEWEEEUKCA
Specification
Key features

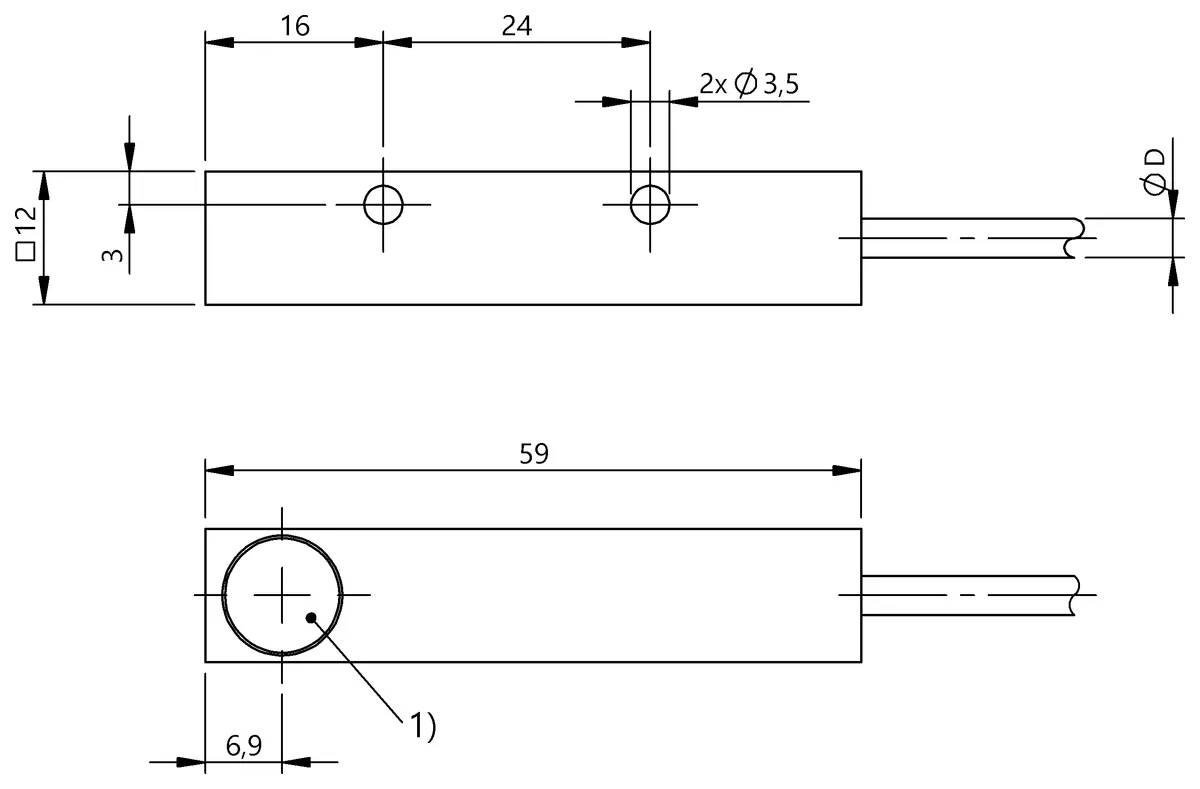

| Dimension | 12 x 12 x 59 mm |
|---|---|
| Style Housing | 12x12 |
| Installation | for flush mounting |
| Range | 4 mm |
| Switching output | PNP normally open (NO) |
| Switching frequency | 500 Hz |
| Housing material | Stainless steel |
| Material sensing surface | LCP |
| Connection | Cable, 5.0 m, Silicone |
| Operating voltage Ub | 10...30 VDC |
| Ambient temperature | -25...130 °C |
| IP rating | IP65 |
| Approval/Conformity | CEWEEEUKCA |
