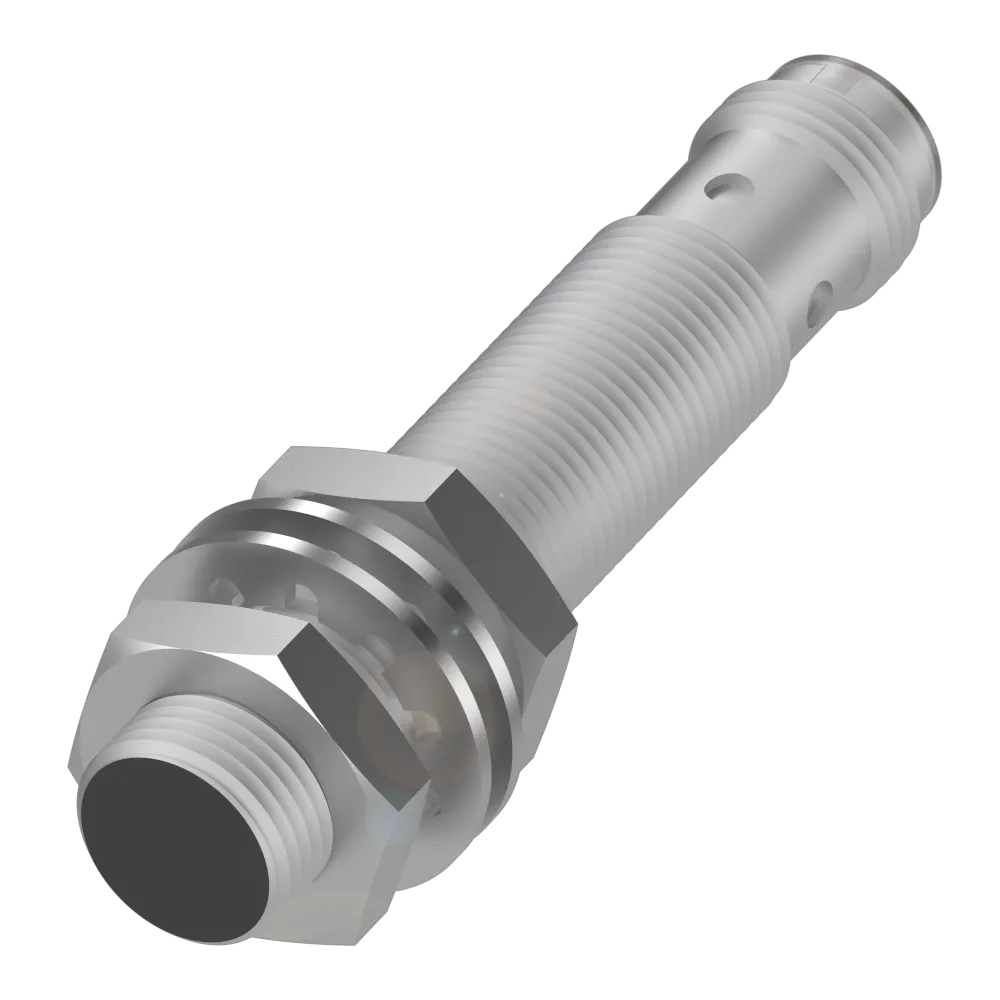

Balluff BES05KT
Dimension: Ø 12 x 65 mm. Style Housing: M12x1. Installation: for flush mounting. Range: 4 mm. Switching output: PNP normally open (NO). Switching frequency: 2000 Hz. Housing material: Brass, PTFE coat…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Dimension: Ø 12 x 65 mm. Style Housing: M12x1. Installation: for flush mounting. Range: 4 mm. Switching output: PNP normally open (NO). Switching frequency: 2000 Hz. Housing material: Brass, PTFE coated. Material sensing surface: PBT. Connection: Connector, M12x1-Male, 3-pin. Operating voltage Ub: 10…30 VDC. Ambient temperature: -40…85 °C. Magnetic field immune: magnetic field immune (AC/DC). IP rating: IP68. Approval/Conformity: CEUKCAWEEEcULus. Additional features: Factor 1Extended temperature rangeHousing resistant to weld spatterweld-immune (magnetic field 100kA/m)
Specification
Key features

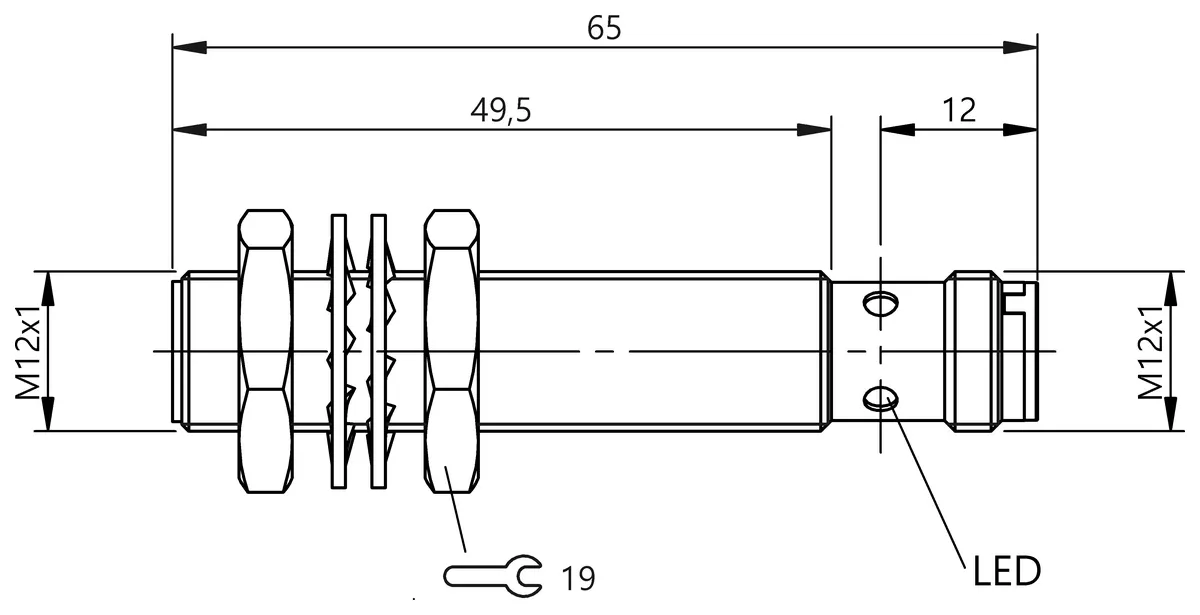

| Dimension | Ø 12 x 65 mm |
|---|---|
| Style Housing | M12x1 |
| Installation | for flush mounting |
| Range | 4 mm |
| Switching output | PNP normally open (NO) |
| Switching frequency | 2000 Hz |
| Housing material | Brass, PTFE coated |
| Material sensing surface | PBT |
| Connection | Connector, M12x1-Male, 3-pin |
| Operating voltage Ub | 10...30 VDC |
| Ambient temperature | -40...85 °C |
| Magnetic field immune | magnetic field immune (AC/DC) |
| IP rating | IP68 |
| Approval/Conformity | CEUKCAWEEEcULus |
| Additional features | Factor 1Extended temperature rangeHousing resistant to weld spatterweld-immune (magnetic field 100kA/m) |
