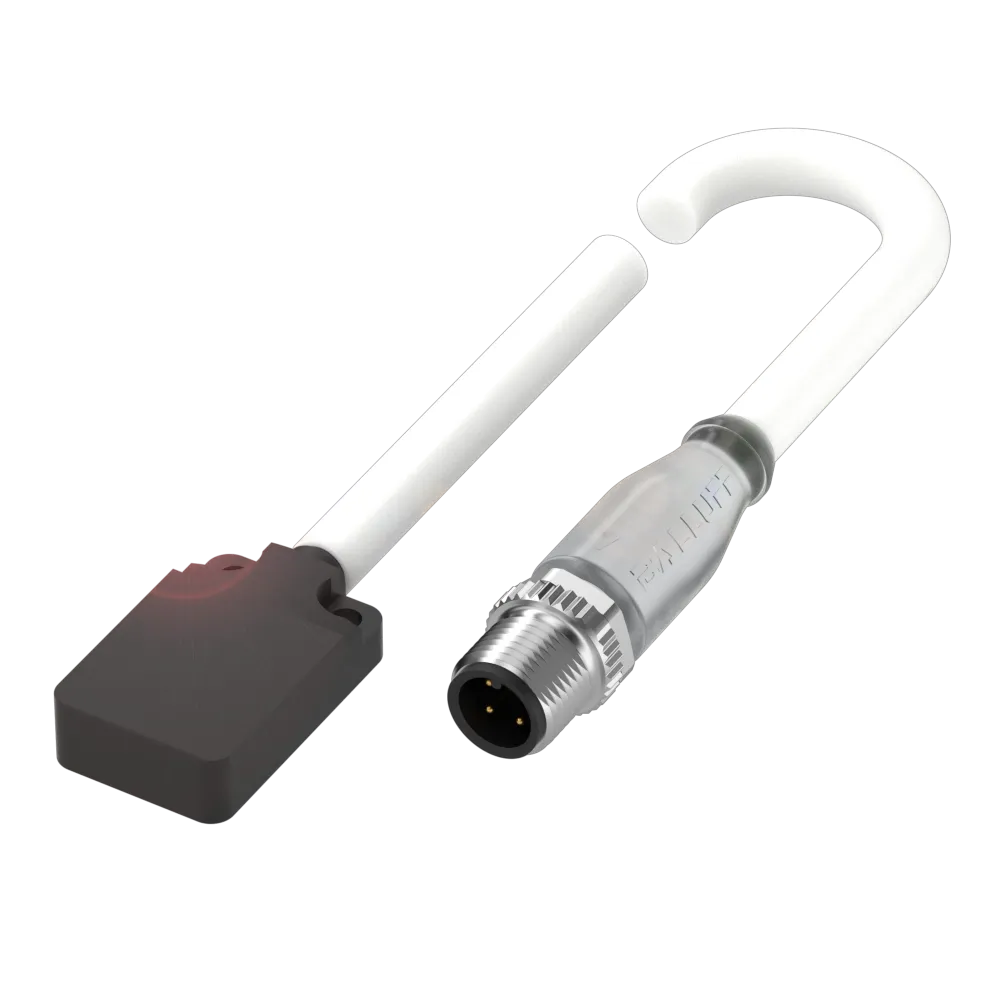

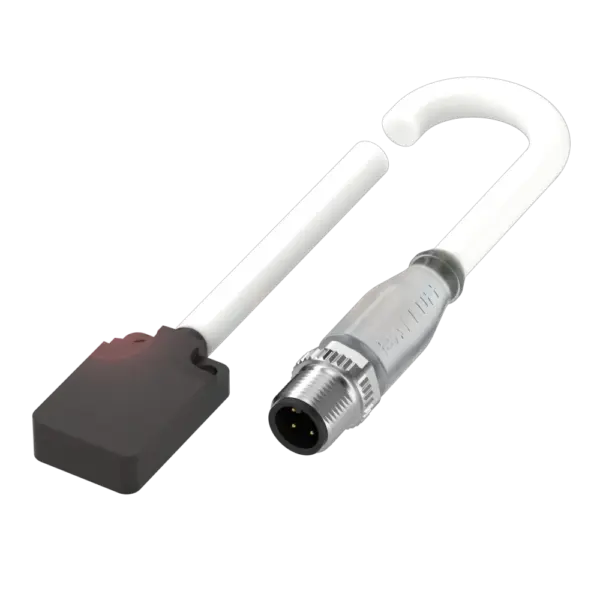

Balluff BES049Y

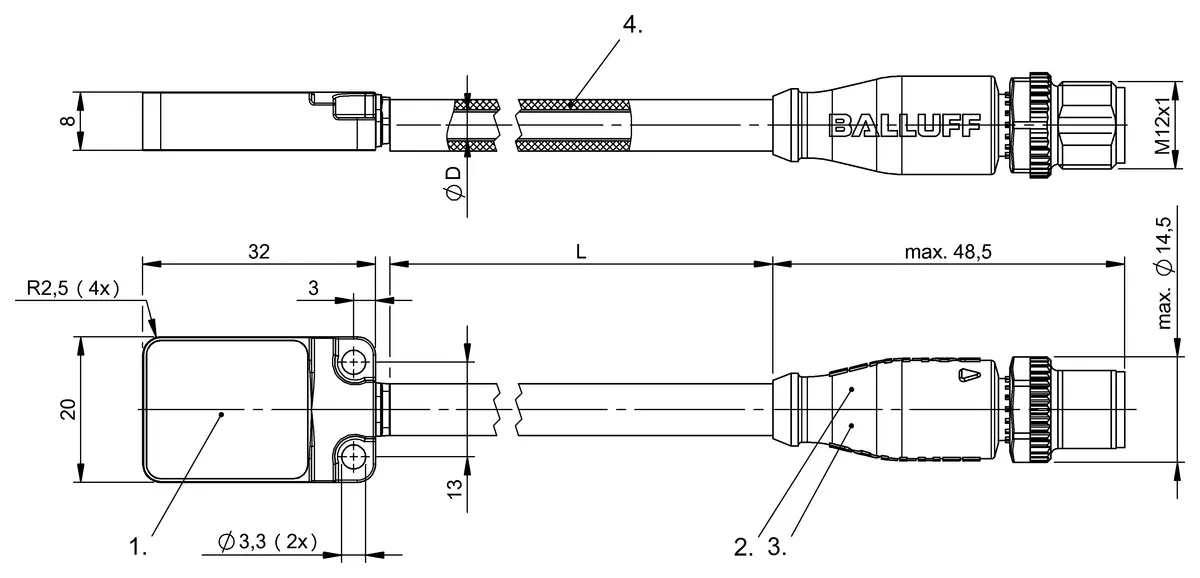

Dimension: 32 x 20 x 8 mm. Style Housing: 32x20x8. Installation: for flush mounting. Range: 5 mm. Switching output: PNP normally open (NO). Switching frequency: 20 Hz. Housing material: Stainless stee…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Dimension: 32 x 20 x 8 mm. Style Housing: 32x20x8. Installation: for flush mounting. Range: 5 mm. Switching output: PNP normally open (NO). Switching frequency: 20 Hz. Housing material: Stainless steel, PTFE coated. Material sensing surface: Stainless steel, W51 ceramic coating. Connection: Cable with connector, M12x1-Male, 4-pin, 0.30 m, PUR. Operating voltage Ub: 10…30 VDC. Ambient temperature: -25…70 °C. Magnetic field immune: magnetic field immune (AC/DC). IP rating: IP67. Approval/Conformity: CEUKCAcULusWEEE. Additional features: Factor 1Housing resistant to weld spatterWeld immune
Specification
Key features
| Dimension | 32 x 20 x 8 mm |
|---|---|
| Style Housing | 32x20x8 |
| Installation | for flush mounting |
| Range | 5 mm |
| Switching output | PNP normally open (NO) |
| Switching frequency | 20 Hz |
| Housing material | Stainless steel, PTFE coated |
| Material sensing surface | Stainless steel, W51 ceramic coating |
| Connection | Cable with connector, M12x1-Male, 4-pin, 0.30 m, PUR |
| Operating voltage Ub | 10...30 VDC |
| Ambient temperature | -25...70 °C |
| Magnetic field immune | magnetic field immune (AC/DC) |
| IP rating | IP67 |
| Approval/Conformity | CEUKCAcULusWEEE |
| Additional features | Factor 1Housing resistant to weld spatterWeld immune |
