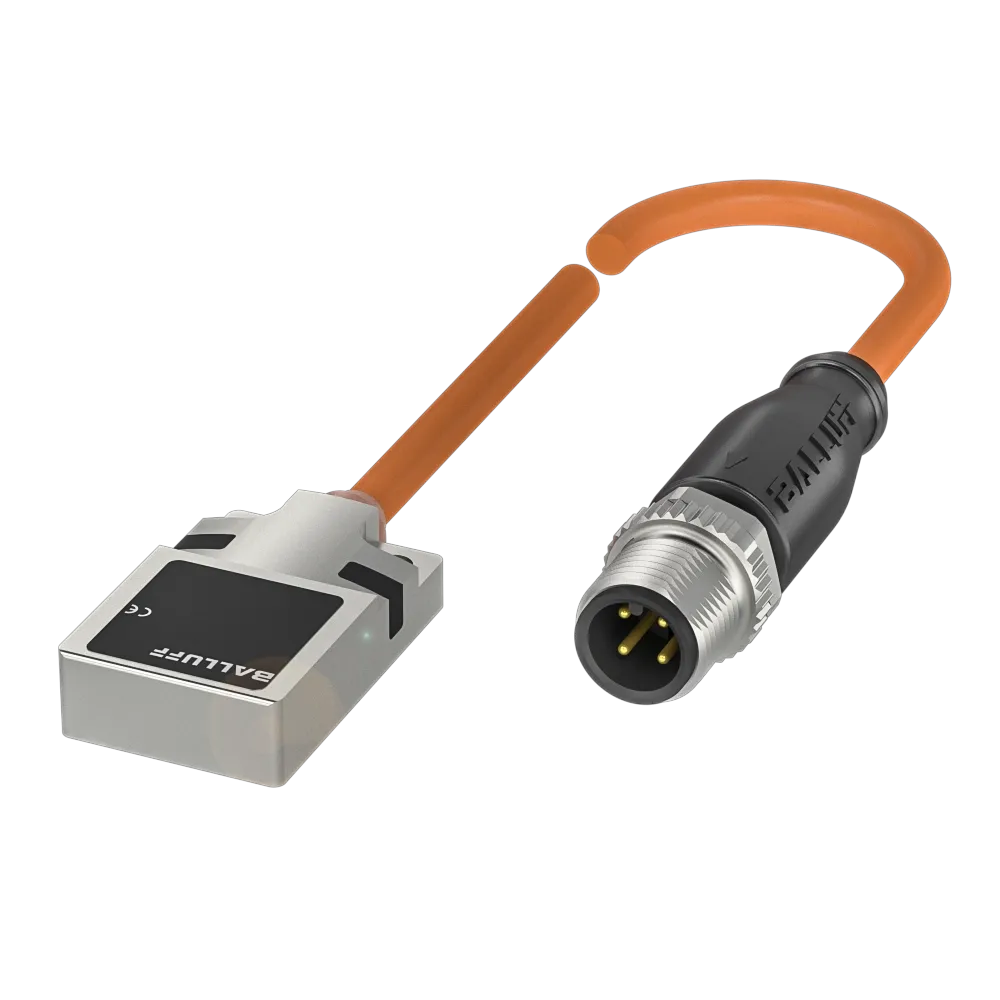

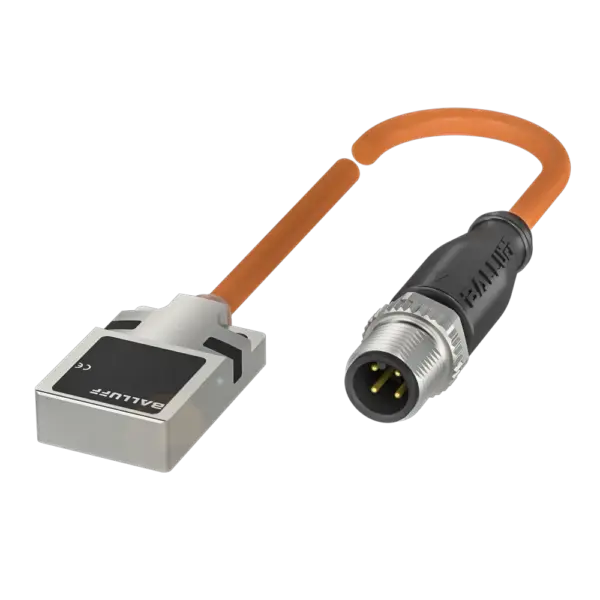

Balluff BES048Y
Dimension: 32 x 20 x 8 mm. Style Housing: 32x20x8. Installation: for flush mounting. Range: 7 mm. Switching output: PNP normally open (NO). Switching frequency: 150 Hz. Housing material: Zinc, Die cas…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Dimension: 32 x 20 x 8 mm. Style Housing: 32x20x8. Installation: for flush mounting. Range: 7 mm. Switching output: PNP normally open (NO). Switching frequency: 150 Hz. Housing material: Zinc, Die casting, partly coated. Material sensing surface: ceramic coated. Connection: Cable with connector, M12x1-Male, 4-pin, 0.20 m, TPU. Operating voltage Ub: 10…30 VDC. Ambient temperature: -25…70 °C. IP rating: IP67. Approval/Conformity: CEUKCAcULusWEEE. Additional features: Housing resistant to weld spatter
Specification
Key features

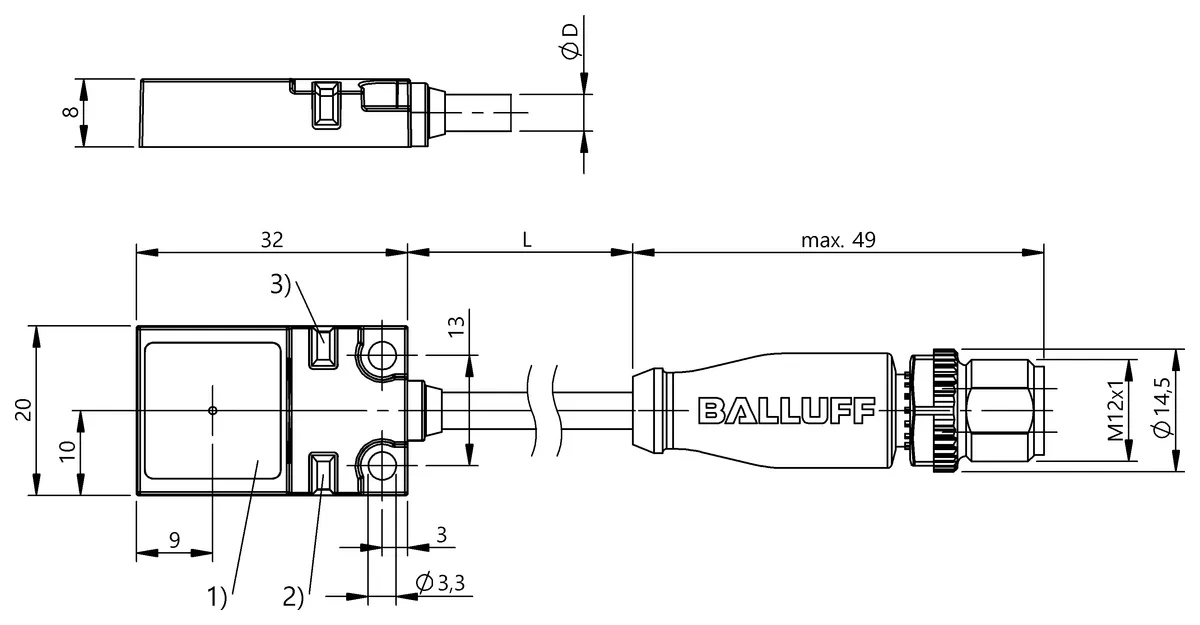

| Dimension | 32 x 20 x 8 mm |
|---|---|
| Style Housing | 32x20x8 |
| Installation | for flush mounting |
| Range | 7 mm |
| Switching output | PNP normally open (NO) |
| Switching frequency | 150 Hz |
| Housing material | Zinc, Die casting, partly coated |
| Material sensing surface | ceramic coated |
| Connection | Cable with connector, M12x1-Male, 4-pin, 0.20 m, TPU |
| Operating voltage Ub | 10...30 VDC |
| Ambient temperature | -25...70 °C |
| IP rating | IP67 |
| Approval/Conformity | CEUKCAcULusWEEE |
| Additional features | Housing resistant to weld spatter |
