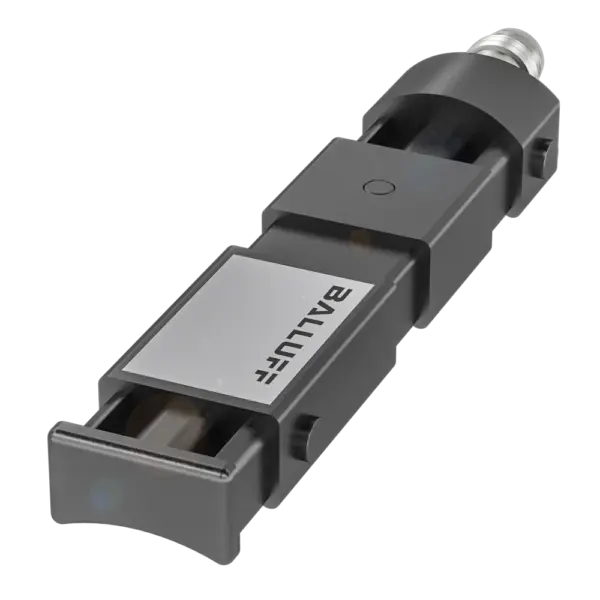

Balluff BES0428

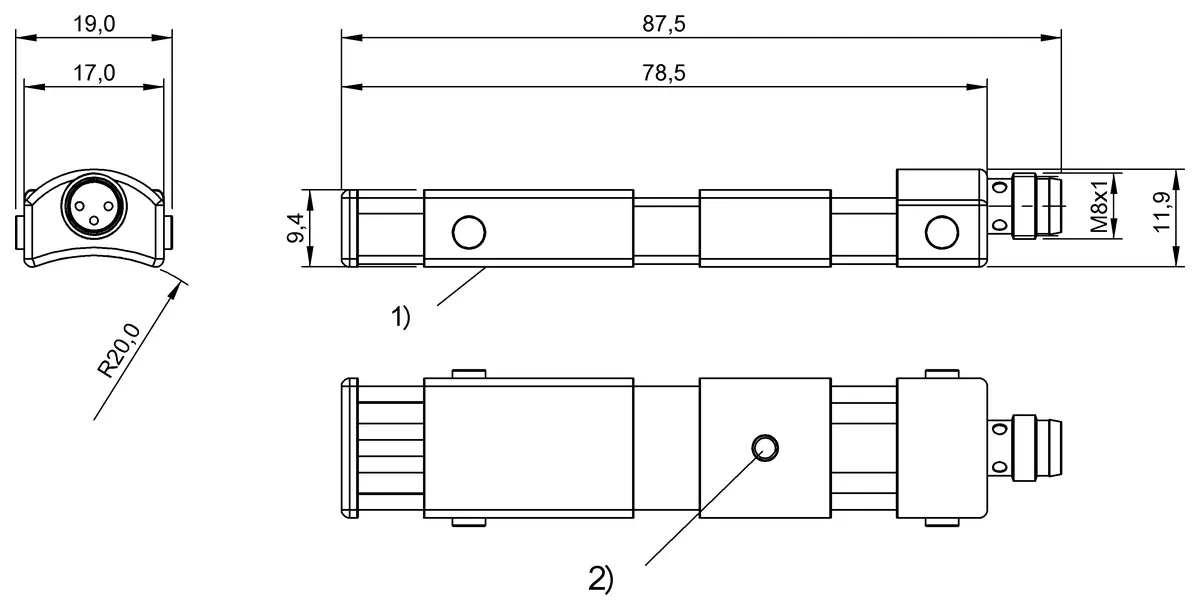

Dimension: 78.5 x 17 x 11.9 mm. Style Housing: block style. Target size min.: M3x5 screw. Range: 16 mm. Switching output: PNP normally open (NO). Switching frequency: 10 Hz. Housing material: PA 6.6….
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Dimension: 78.5 x 17 x 11.9 mm. Style Housing: block style. Target size min.: M3x5 screw. Range: 16 mm. Switching output: PNP normally open (NO). Switching frequency: 10 Hz. Housing material: PA 6.6. Connection: Connector, M8x1-Male, 3-pin. Operating voltage Ub: 10…30 VDC. Ambient temperature: -25…70 °C. IP rating: IP67. Approval/Conformity: CEWEEE
Specification
Key features
| Dimension | 78.5 x 17 x 11.9 mm |
|---|---|
| Style Housing | block style |
| Target size min. | M3x5 screw |
| Range | 16 mm |
| Switching output | PNP normally open (NO) |
| Switching frequency | 10 Hz |
| Housing material | PA 6.6 |
| Connection | Connector, M8x1-Male, 3-pin |
| Operating voltage Ub | 10...30 VDC |
| Ambient temperature | -25...70 °C |
| IP rating | IP67 |
| Approval/Conformity | CEWEEE |
