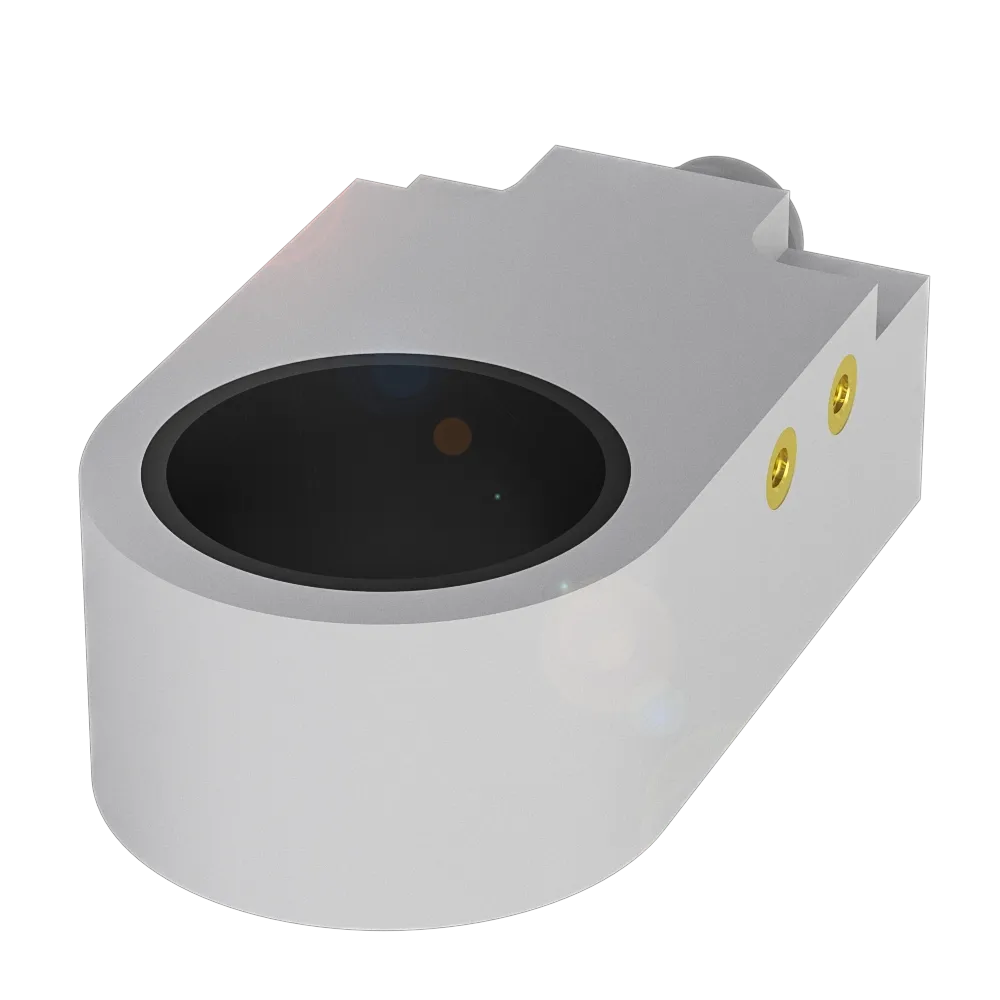

Balluff BES03JH
Dimension: 60 x 35 x 20 mm. Style Housing: block style. Pass-through: 25.1 mm. Target size min.: Ball D = 4 mm. Switching output: PNP normally open (NO). Switching frequency: 16 Hz. Housing material:…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Dimension: 60 x 35 x 20 mm. Style Housing: block style. Pass-through: 25.1 mm. Target size min.: Ball D = 4 mm. Switching output: PNP normally open (NO). Switching frequency: 16 Hz. Housing material: Plastic. Material sensing surface: Plastic. Connection: Connector, M12x1-Male, 4-pin. Operating voltage Ub: 10…30 VDC. Ambient temperature: -25…70 °C. IP rating: IP65. Approval/Conformity: CEWEEE
Specification
Key features

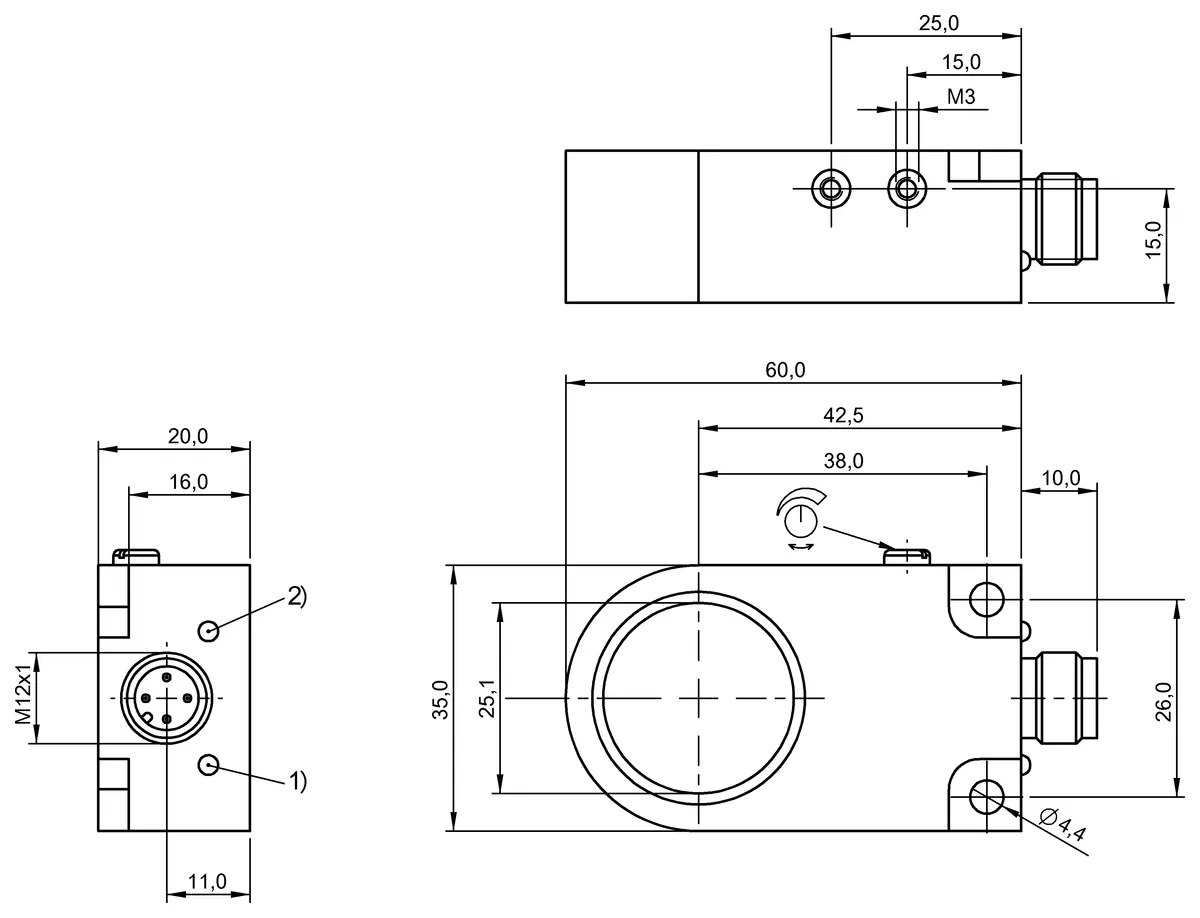

| Dimension | 60 x 35 x 20 mm |
|---|---|
| Style Housing | block style |
| Pass-through | 25.1 mm |
| Target size min. | Ball D = 4 mm |
| Switching output | PNP normally open (NO) |
| Switching frequency | 16 Hz |
| Housing material | Plastic |
| Material sensing surface | Plastic |
| Connection | Connector, M12x1-Male, 4-pin |
| Operating voltage Ub | 10...30 VDC |
| Ambient temperature | -25...70 °C |
| IP rating | IP65 |
| Approval/Conformity | CEWEEE |
