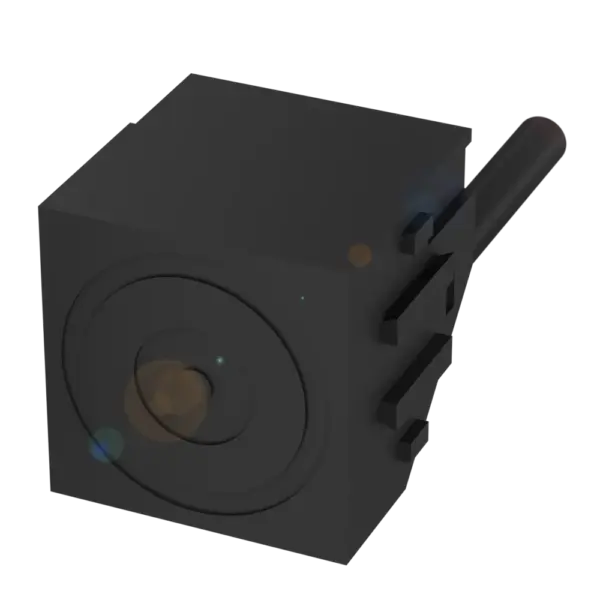

Balluff BES030F
Dimension: 26 x 26 x 43 mm. Style Housing: 26×26. Installation: for flush mounting. Range: 10 mm. Switching output: polarized normally open (NO). Switching frequency: 250 Hz. Housing material: PA. Mat…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Dimension: 26 x 26 x 43 mm. Style Housing: 26×26. Installation: for flush mounting. Range: 10 mm. Switching output: polarized normally open (NO). Switching frequency: 250 Hz. Housing material: PA. Material sensing surface: PA. Connection: Cable with connector, M12x1-Male, 4-pin, 0.80 m, PUR. Operating voltage Ub: 10…36 VDC. Ambient temperature: -25…70 °C. IP rating: IP67. Approval/Conformity: CEWEEEUKCA
Specification
Key features

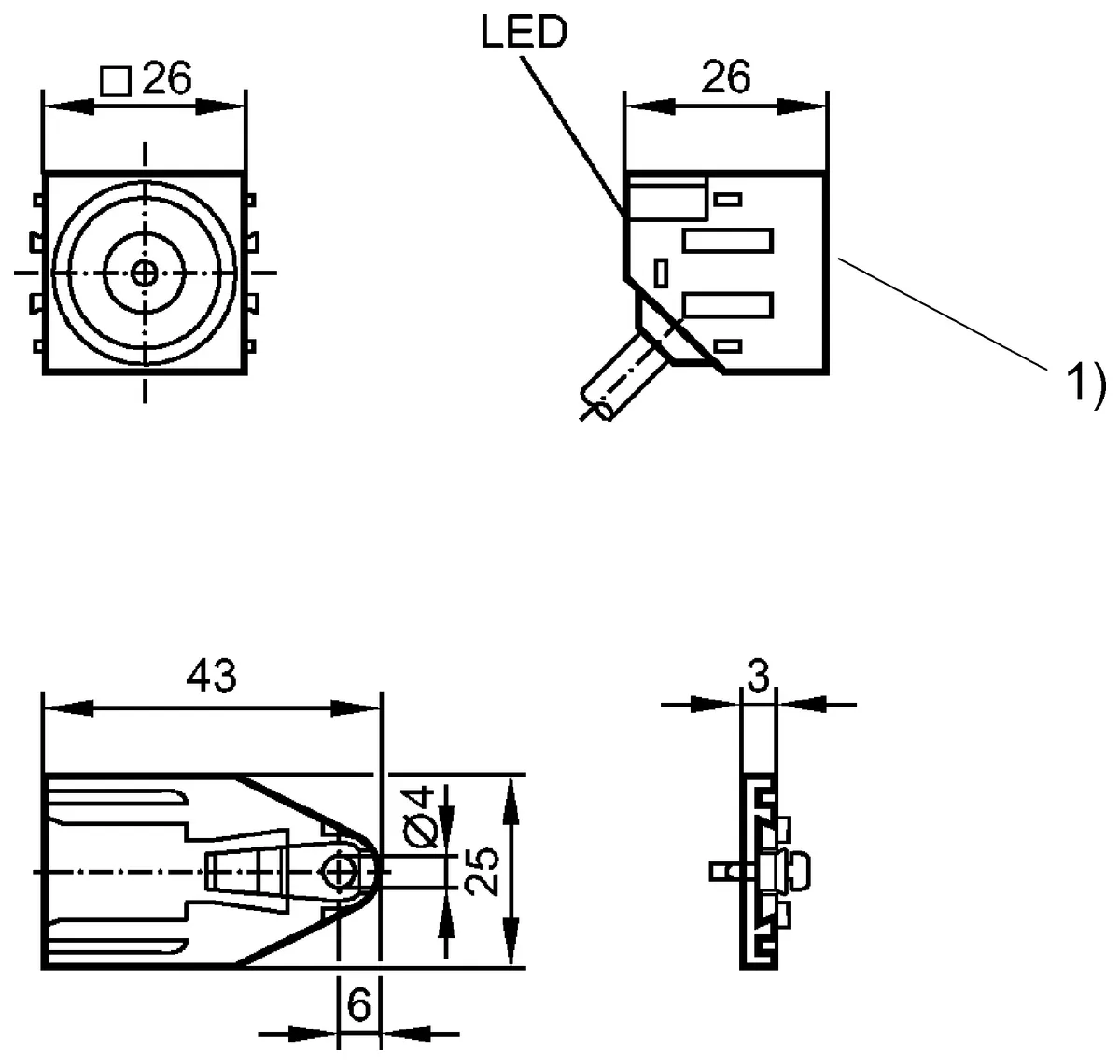

| Dimension | 26 x 26 x 43 mm |
|---|---|
| Style Housing | 26x26 |
| Installation | for flush mounting |
| Range | 10 mm |
| Switching output | polarized normally open (NO) |
| Switching frequency | 250 Hz |
| Housing material | PA |
| Material sensing surface | PA |
| Connection | Cable with connector, M12x1-Male, 4-pin, 0.80 m, PUR |
| Operating voltage Ub | 10...36 VDC |
| Ambient temperature | -25...70 °C |
| IP rating | IP67 |
| Approval/Conformity | CEWEEEUKCA |
