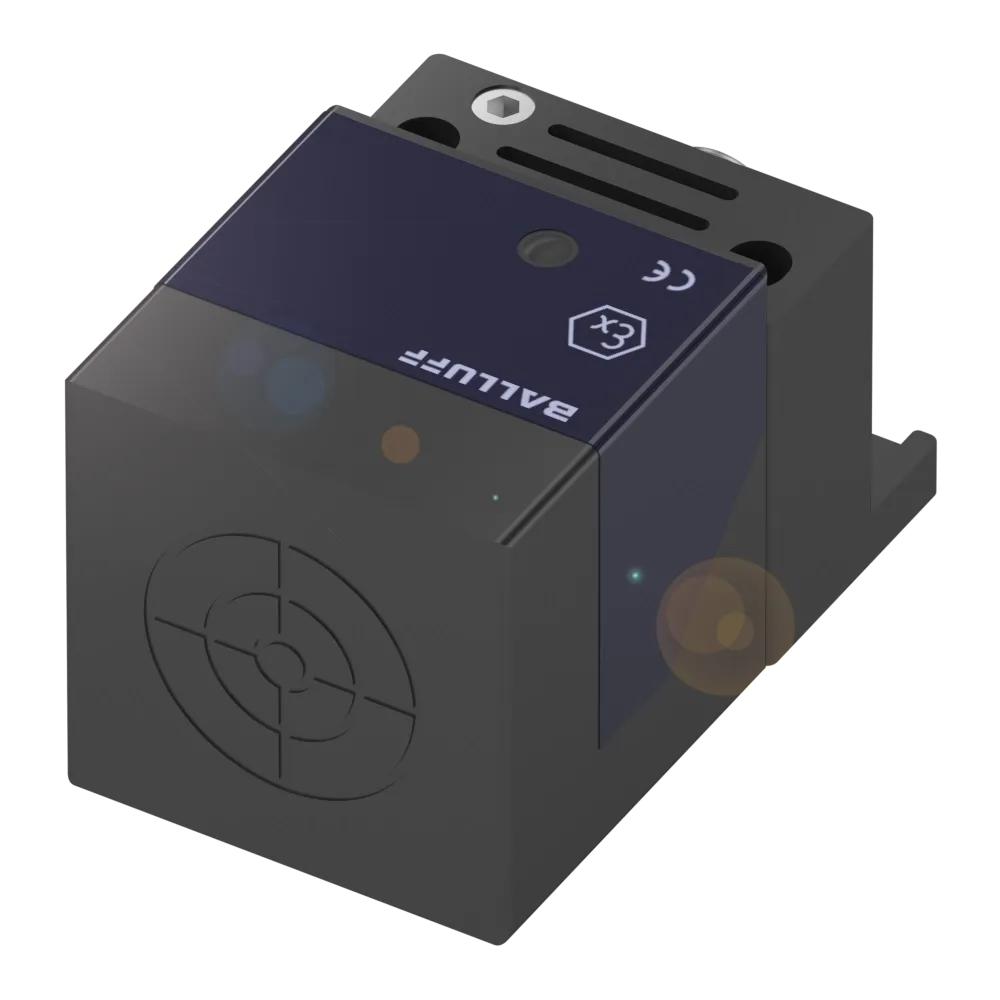

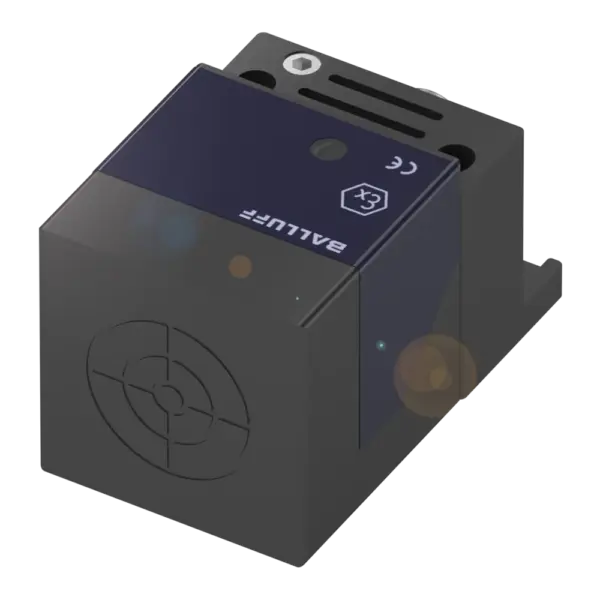

Balluff BES0300
Dimension: 40 x 40 x 66 mm. Style Housing: 40×40. Installation: non-flush. Range: 35 mm. Interface: NAMUR. Switching frequency: 100 Hz. Housing material: PPEPPS. Material sensing surface: PPE. Connect…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Dimension: 40 x 40 x 66 mm. Style Housing: 40×40. Installation: non-flush. Range: 35 mm. Interface: NAMUR. Switching frequency: 100 Hz. Housing material: PPEPPS. Material sensing surface: PPE. Connection: Connector, M12x1-Male, 5-pin. Operating voltage Ub: 7.7…9 VDC. Ambient temperature: -20…70 °C. Ex category: ATEX: 1D (EPL Da)ATEX: 2D (EPL Db)ATEX: 2G (EPL Gb)ATEX: 3D (EPL Dc)ATEX: 3G (EPL Gc). IP rating: IP67. Approval/Conformity: CEATEXIECExFMcCSAusWEEECCC Ex
Specification
Key features

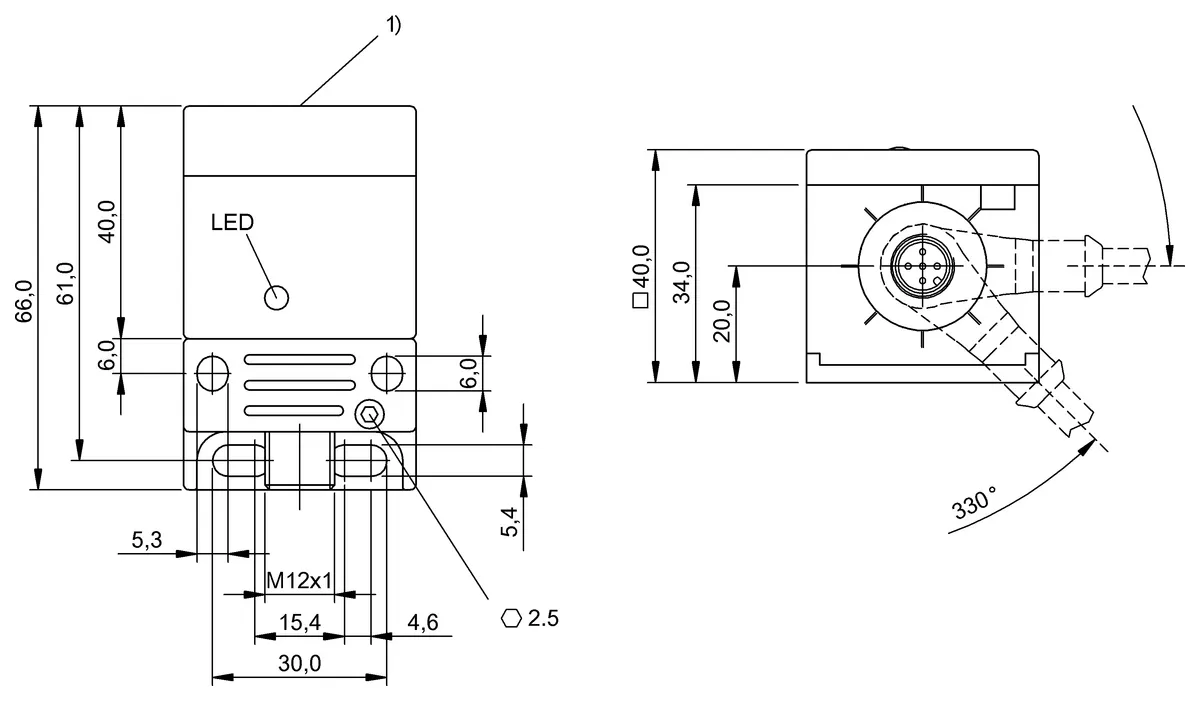

| Dimension | 40 x 40 x 66 mm |
|---|---|
| Style Housing | 40x40 |
| Installation | non-flush |
| Range | 35 mm |
| Interface | NAMUR |
| Switching frequency | 100 Hz |
| Housing material | PPEPPS |
| Material sensing surface | PPE |
| Connection | Connector, M12x1-Male, 5-pin |
| Operating voltage Ub | 7.7...9 VDC |
| Ambient temperature | -20...70 °C |
| Ex category | ATEX: 1D (EPL Da)ATEX: 2D (EPL Db)ATEX: 2G (EPL Gb)ATEX: 3D (EPL Dc)ATEX: 3G (EPL Gc) |
| IP rating | IP67 |
| Approval/Conformity | CEATEXIECExFMcCSAusWEEECCC Ex |
