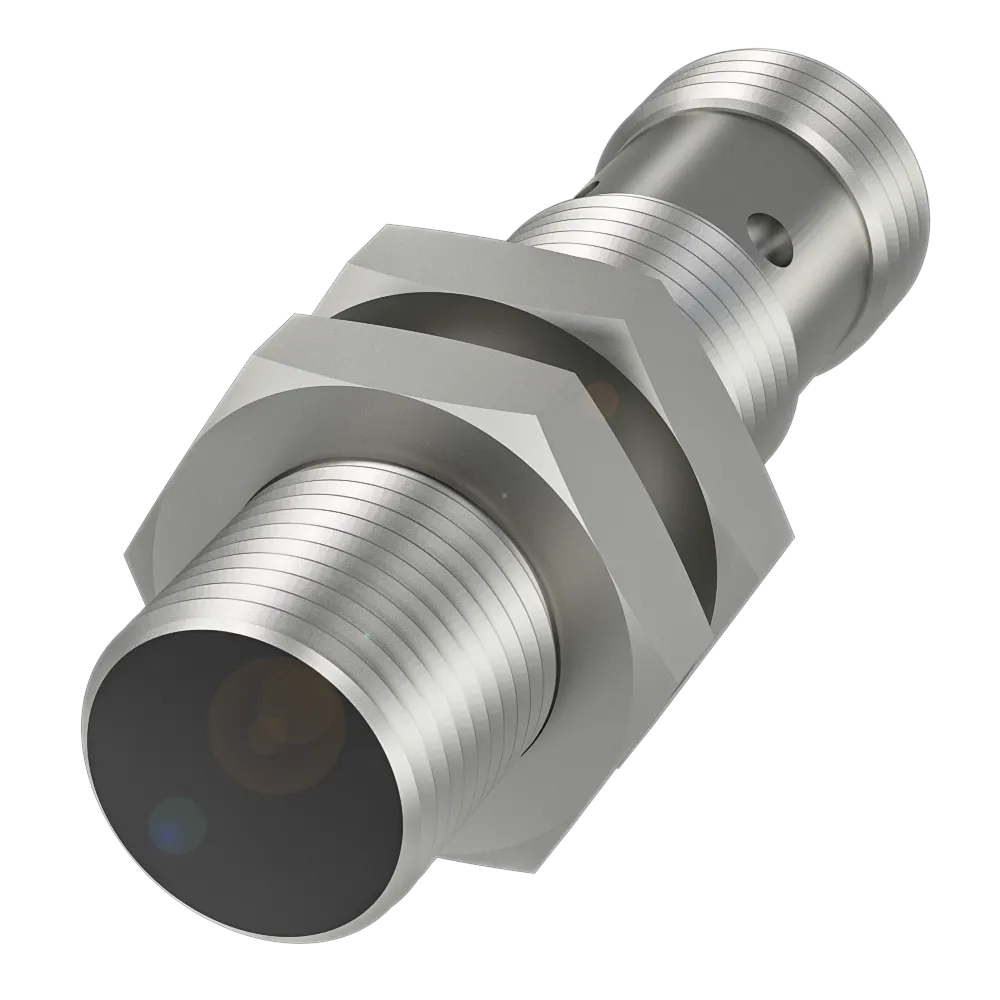

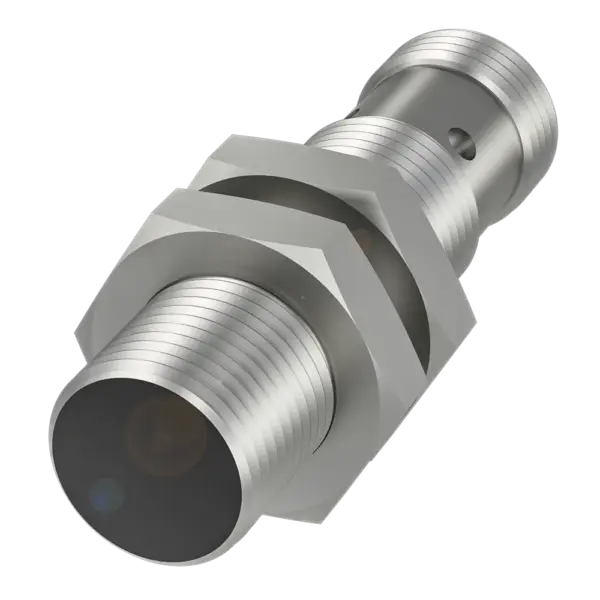

Balluff BES02ZU

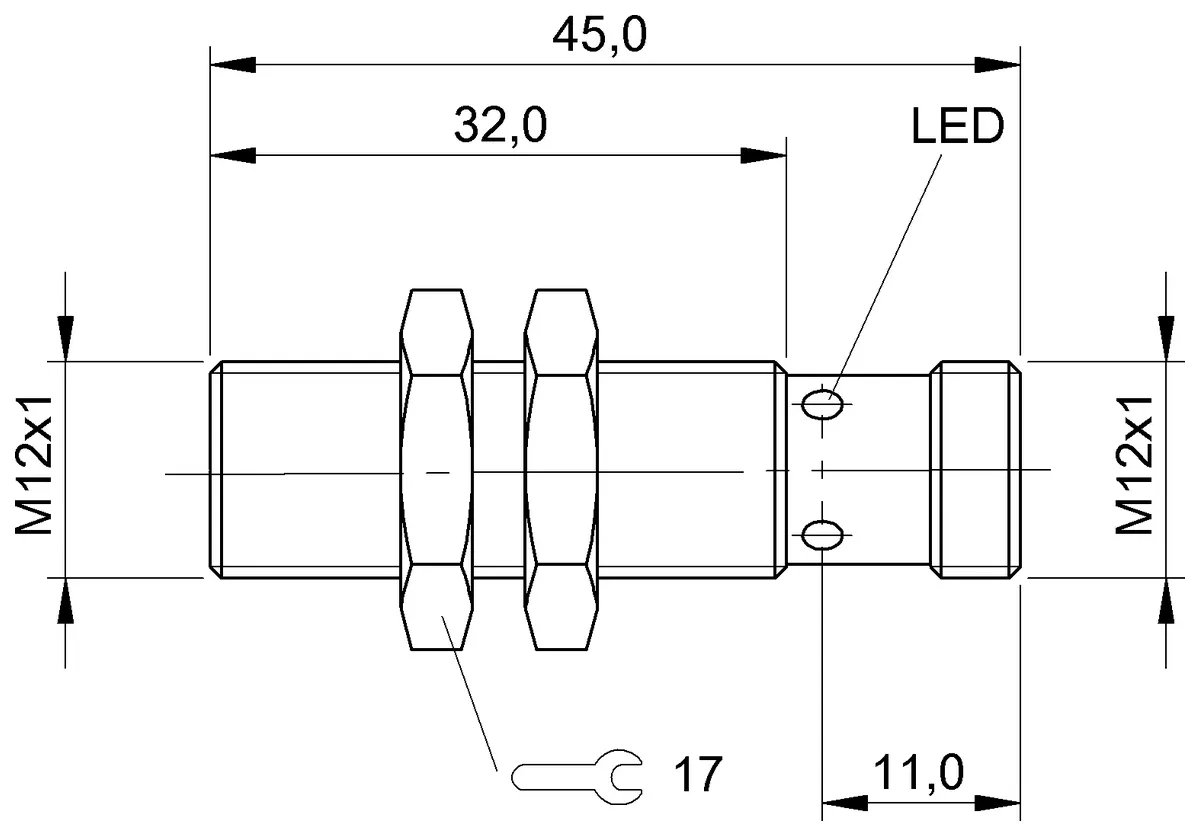

Dimension: Ø 12 x 45 mm. Style Housing: M12x1. Installation: for flush mounting. Range: 4 mm. Interface: NAMUR. Switching frequency: 700 Hz. Housing material: Brass, Nickel-free coated. Material sensi…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Dimension: Ø 12 x 45 mm. Style Housing: M12x1. Installation: for flush mounting. Range: 4 mm. Interface: NAMUR. Switching frequency: 700 Hz. Housing material: Brass, Nickel-free coated. Material sensing surface: PBT. Connection: Connector, M12x1-Male, 4-pin. Operating voltage Ub: 7.7…9 VDC. Ambient temperature: -20…70 °C. Ex category: ATEX: 1D (EPL Da)ATEX: 1G (EPL Ga)ATEX: 2D (EPL Db)ATEX: 2G (EPL Gb)ATEX: 3D (EPL Dc)ATEX: 3G (EPL Gc). Approval/Conformity: CEATEXIECExFMcCSAusWEEECCC ExUKCA
Specification
Key features
| Dimension | Ø 12 x 45 mm |
|---|---|
| Style Housing | M12x1 |
| Installation | for flush mounting |
| Range | 4 mm |
| Interface | NAMUR |
| Switching frequency | 700 Hz |
| Housing material | Brass, Nickel-free coated |
| Material sensing surface | PBT |
| Connection | Connector, M12x1-Male, 4-pin |
| Operating voltage Ub | 7.7...9 VDC |
| Ambient temperature | -20...70 °C |
| Ex category | ATEX: 1D (EPL Da)ATEX: 1G (EPL Ga)ATEX: 2D (EPL Db)ATEX: 2G (EPL Gb)ATEX: 3D (EPL Dc)ATEX: 3G (EPL Gc) |
| Approval/Conformity | CEATEXIECExFMcCSAusWEEECCC ExUKCA |
