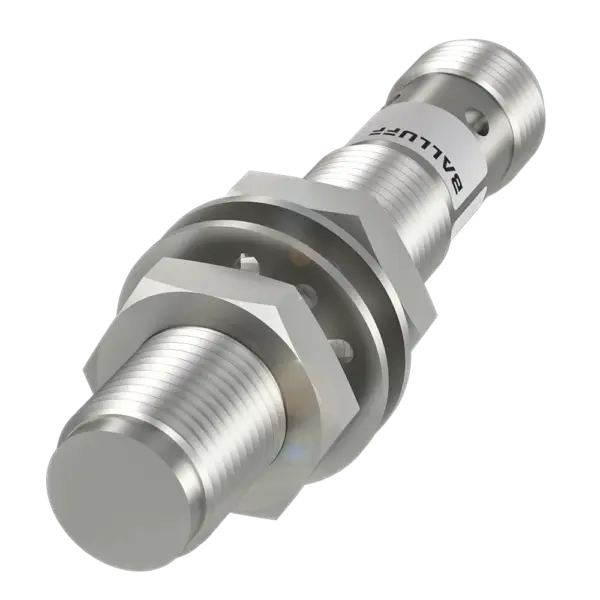

Balluff BES02Z3
Dimension: Ø 12 x 65 mm. Style Housing: M12x1. Installation: for flush mounting. Range: 2 mm. Switching output: PNP normally open (NO). Switching frequency: 100 Hz. Housing material: Stainless steel….
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Dimension: Ø 12 x 65 mm. Style Housing: M12x1. Installation: for flush mounting. Range: 2 mm. Switching output: PNP normally open (NO). Switching frequency: 100 Hz. Housing material: Stainless steel. Material sensing surface: Stainless steel. Connection: Connector, M12x1-Male, 4-pin. Operating voltage Ub: 10…30 VDC. Ambient temperature: -25…70 °C. IP rating: IP67. Approval/Conformity: CEWEEE. Additional features: Selective ferrous
Specification
Key features

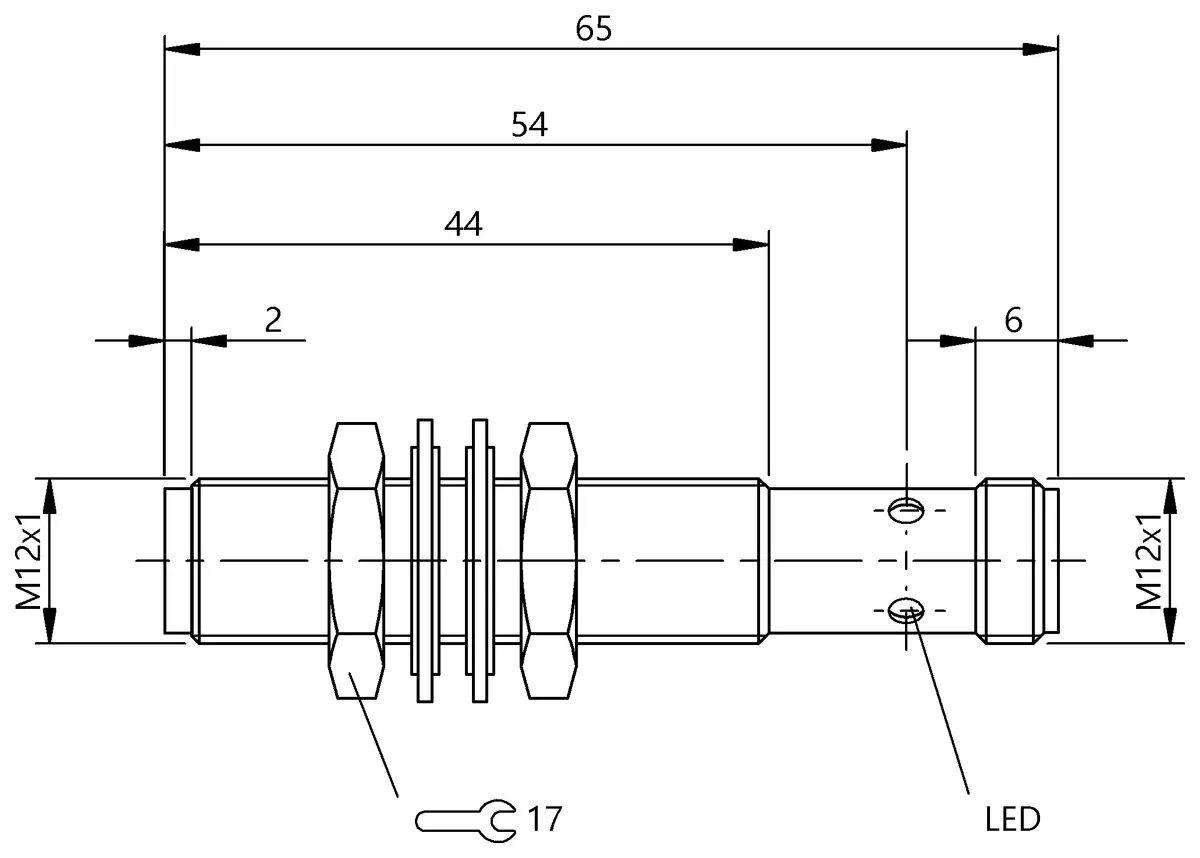

| Dimension | Ø 12 x 65 mm |
|---|---|
| Style Housing | M12x1 |
| Installation | for flush mounting |
| Range | 2 mm |
| Switching output | PNP normally open (NO) |
| Switching frequency | 100 Hz |
| Housing material | Stainless steel |
| Material sensing surface | Stainless steel |
| Connection | Connector, M12x1-Male, 4-pin |
| Operating voltage Ub | 10...30 VDC |
| Ambient temperature | -25...70 °C |
| IP rating | IP67 |
| Approval/Conformity | CEWEEE |
| Additional features | Selective ferrous |
