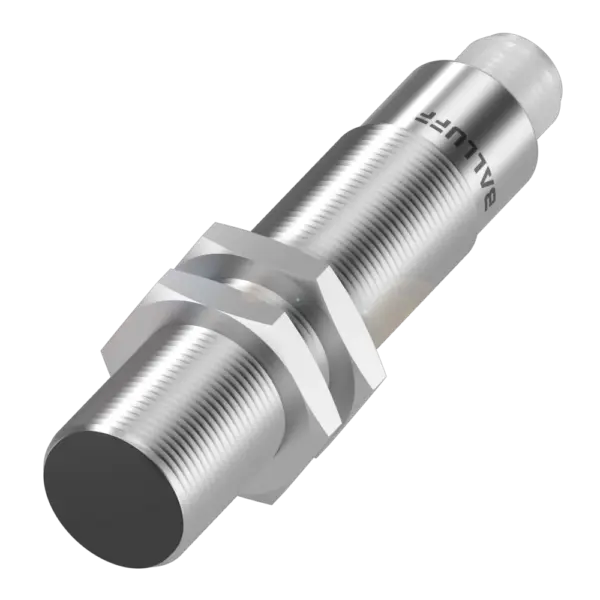

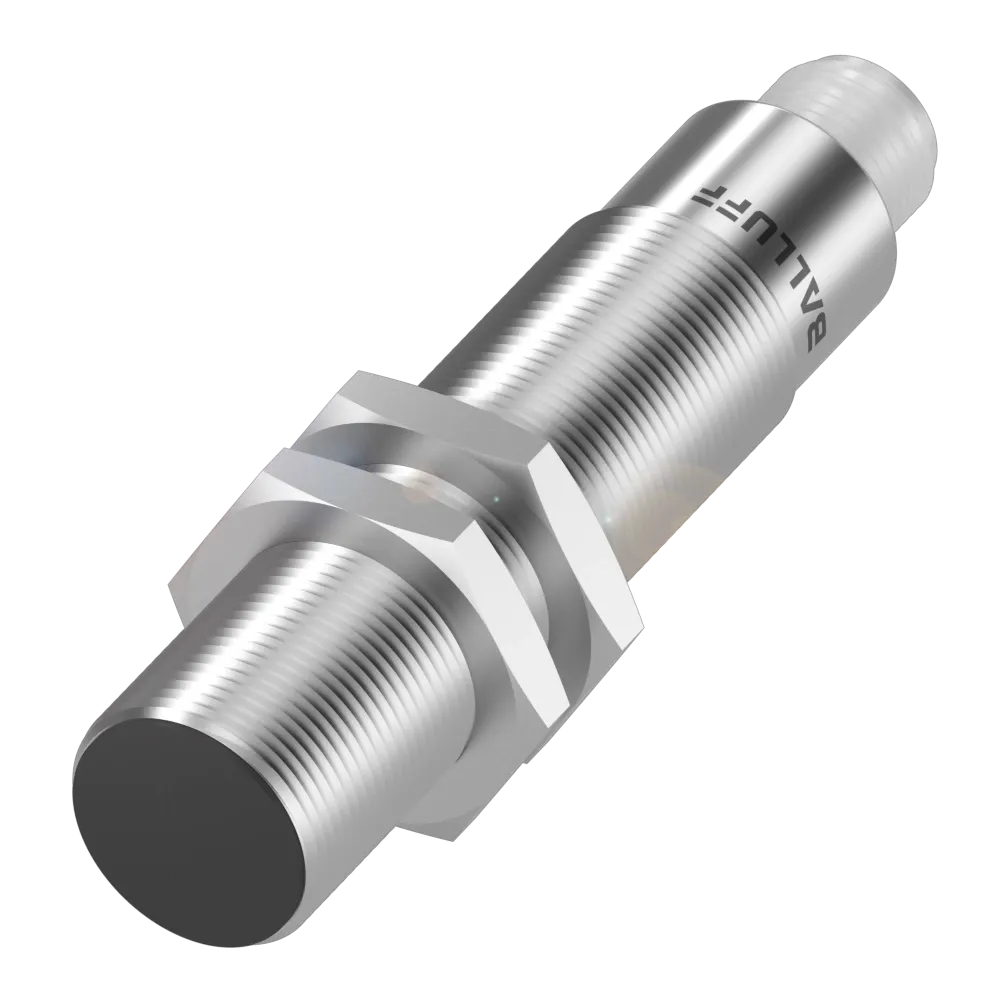

Balluff BES02H6
Dimension: Ø 18 x 83 mm. Style Housing: M18x1. Installation: for flush mounting. Range: 5 mm. Switching output: PNP normally open/normally closed (NO/NC). Switching frequency: 500 Hz. Housing material…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

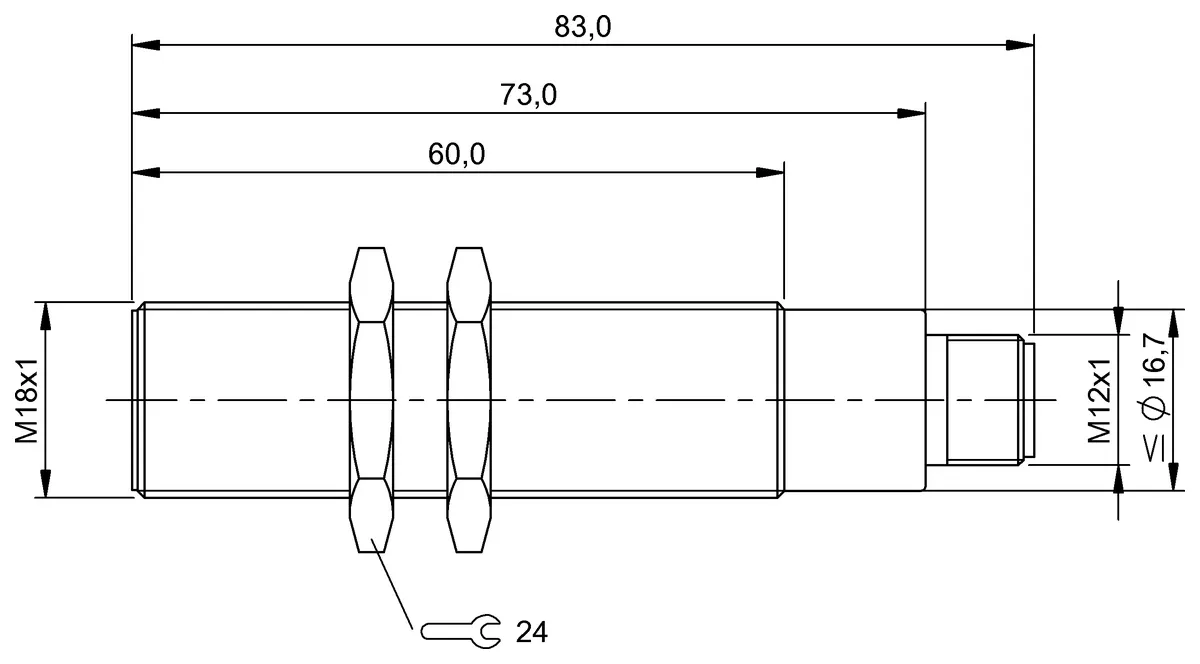

Dimension: Ø 18 x 83 mm. Style Housing: M18x1. Installation: for flush mounting. Range: 5 mm. Switching output: PNP normally open/normally closed (NO/NC). Switching frequency: 500 Hz. Housing material: Brass, nickel-plated. Material sensing surface: PBT. Connection: Connector, M12x1-Male, 4-pin. Operating voltage Ub: 10…30 VDC. Ambient temperature: -25…120 °C. IP rating: IP67. Approval/Conformity: CEUKCAWEEE
Specification
Key features
| Dimension | Ø 18 x 83 mm |
|---|---|
| Style Housing | M18x1 |
| Installation | for flush mounting |
| Range | 5 mm |
| Switching output | PNP normally open/normally closed (NO/NC) |
| Switching frequency | 500 Hz |
| Housing material | Brass, nickel-plated |
| Material sensing surface | PBT |
| Connection | Connector, M12x1-Male, 4-pin |
| Operating voltage Ub | 10...30 VDC |
| Ambient temperature | -25...120 °C |
| IP rating | IP67 |
| Approval/Conformity | CEUKCAWEEE |
