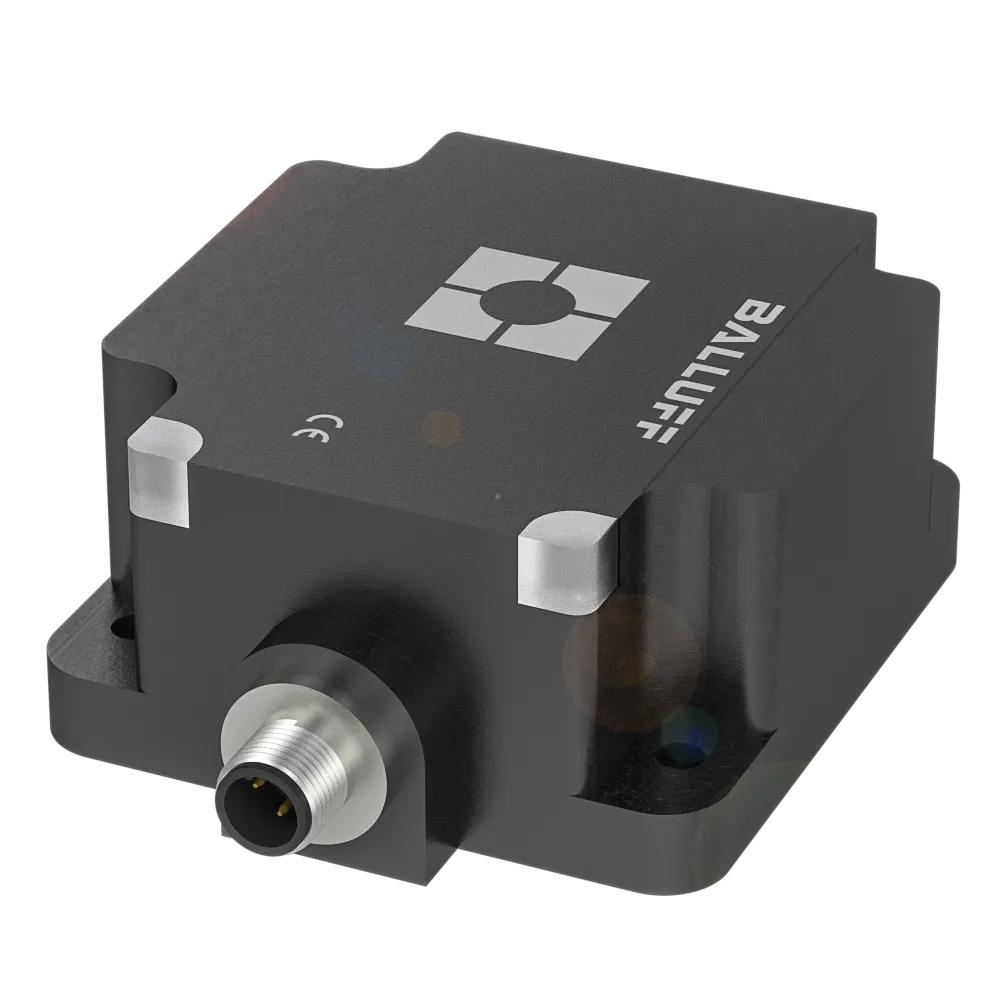

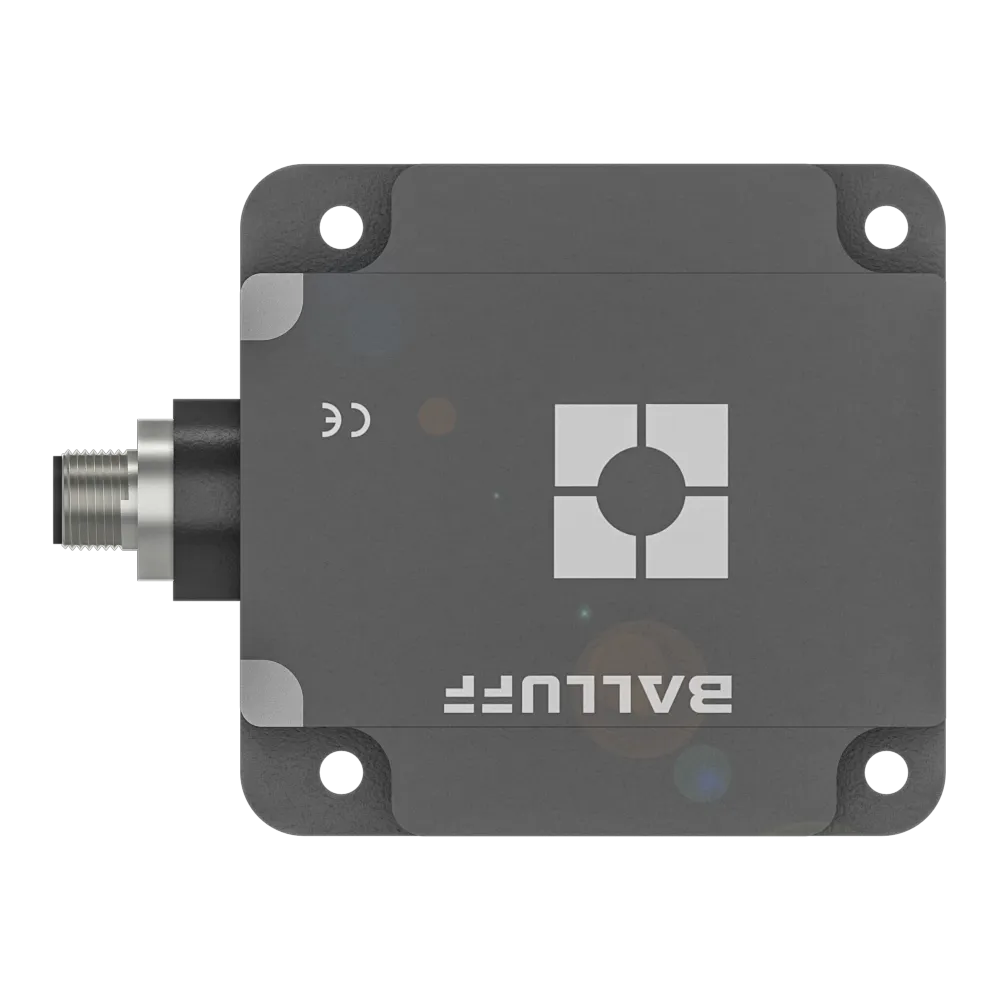

Balluff BES0226

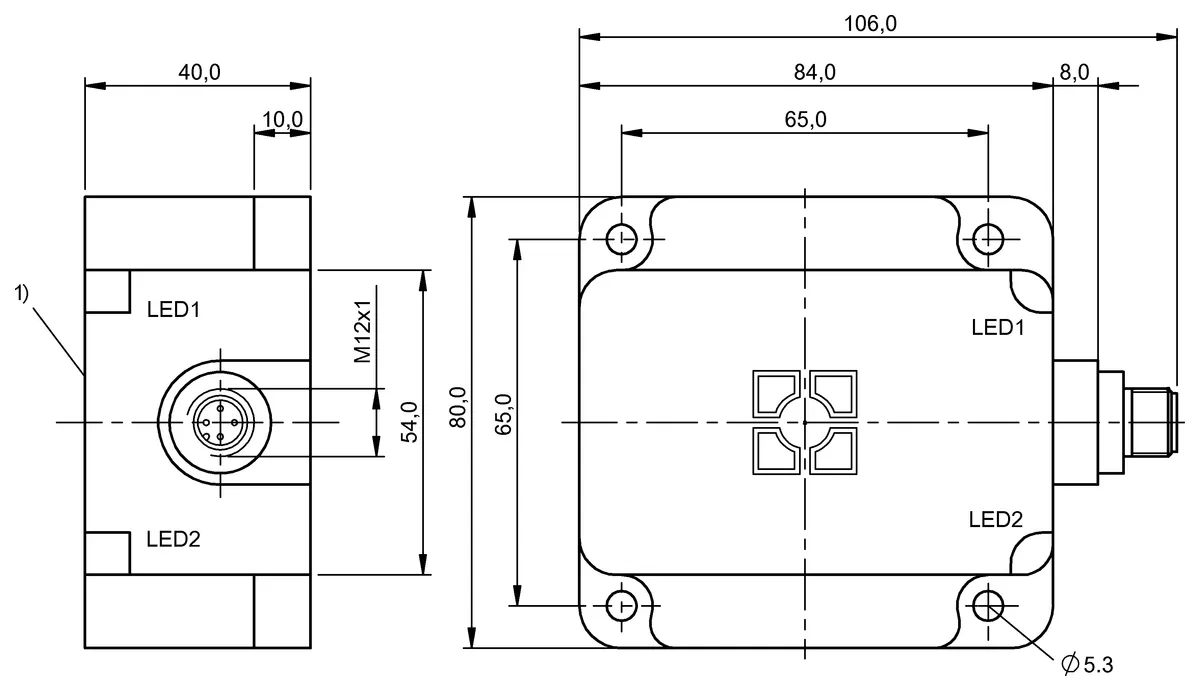

Dimension: 106 x 80 x 40 mm. Style Housing: 80×80. Installation: non-flush. Range: 50 mm. Switching output: PNP normally open/normally closed (NO/NC). Switching frequency: 50 Hz. Housing material: PBT…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Dimension: 106 x 80 x 40 mm. Style Housing: 80×80. Installation: non-flush. Range: 50 mm. Switching output: PNP normally open/normally closed (NO/NC). Switching frequency: 50 Hz. Housing material: PBT, GF30. Material sensing surface: PBT, GF30. Connection: Connector, M12x1-Male, 4-pin. Operating voltage Ub: 10…55 VDC. Ambient temperature: -25…70 °C. IP rating: IP67. Approval/Conformity: CEUKCAWEEE
Specification
Key features
| Dimension | 106 x 80 x 40 mm |
|---|---|
| Style Housing | 80x80 |
| Installation | non-flush |
| Range | 50 mm |
| Switching output | PNP normally open/normally closed (NO/NC) |
| Switching frequency | 50 Hz |
| Housing material | PBT, GF30 |
| Material sensing surface | PBT, GF30 |
| Connection | Connector, M12x1-Male, 4-pin |
| Operating voltage Ub | 10...55 VDC |
| Ambient temperature | -25...70 °C |
| IP rating | IP67 |
| Approval/Conformity | CEUKCAWEEE |
