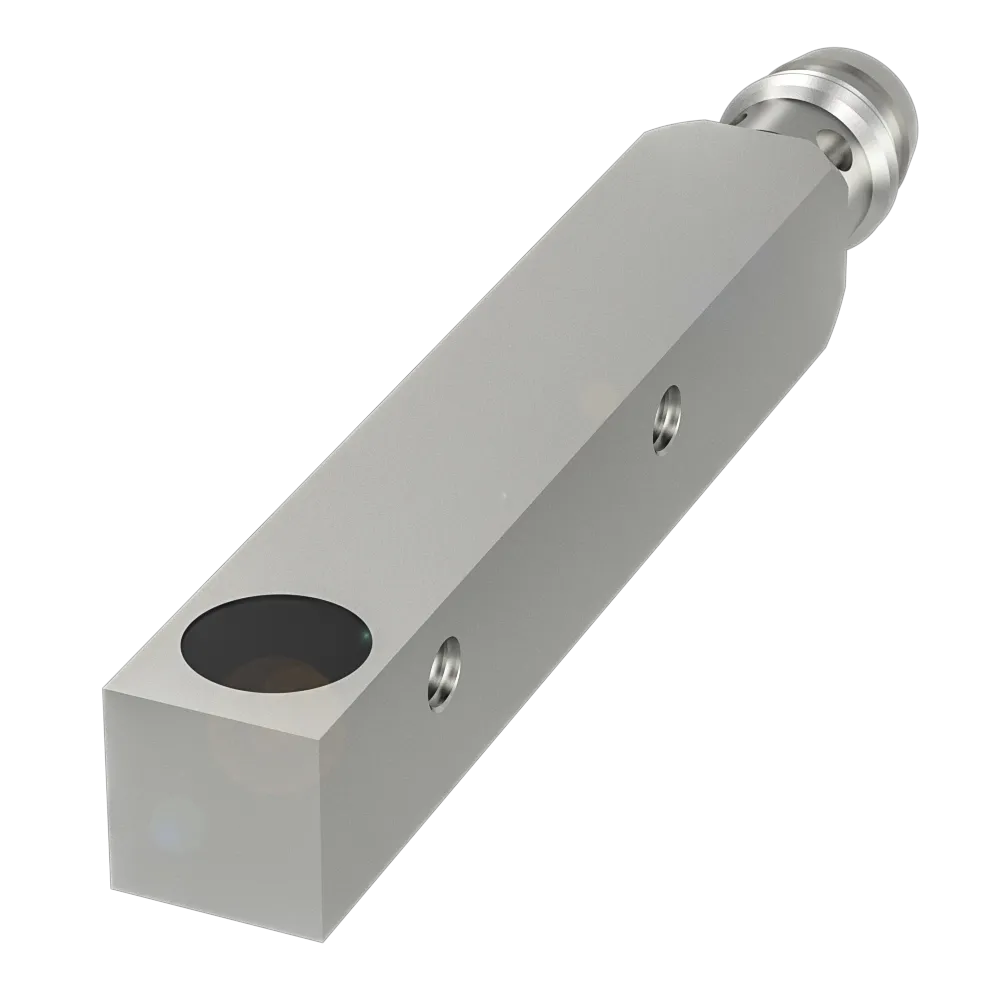

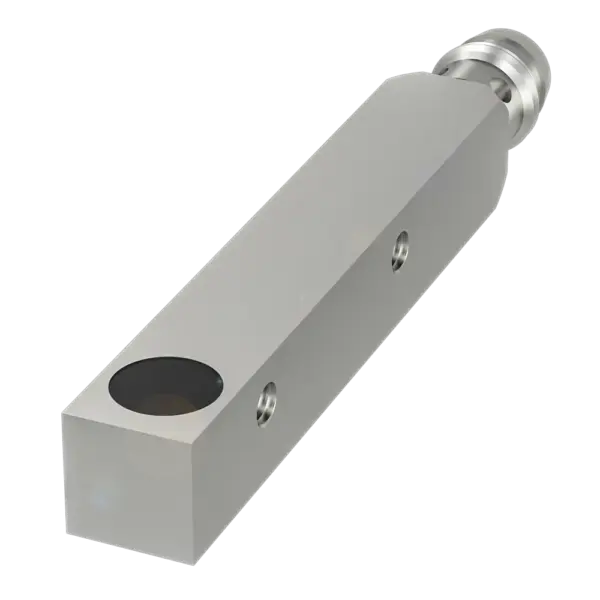

Balluff BES0180
Dimension: 59 x 8 x 8 mm. Style Housing: 8×8. Installation: for flush mounting. Range: 1.5 mm. Switching output: PNP normally open (NO). Switching frequency: 5000 Hz. Housing material: Zinc, Die casti…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

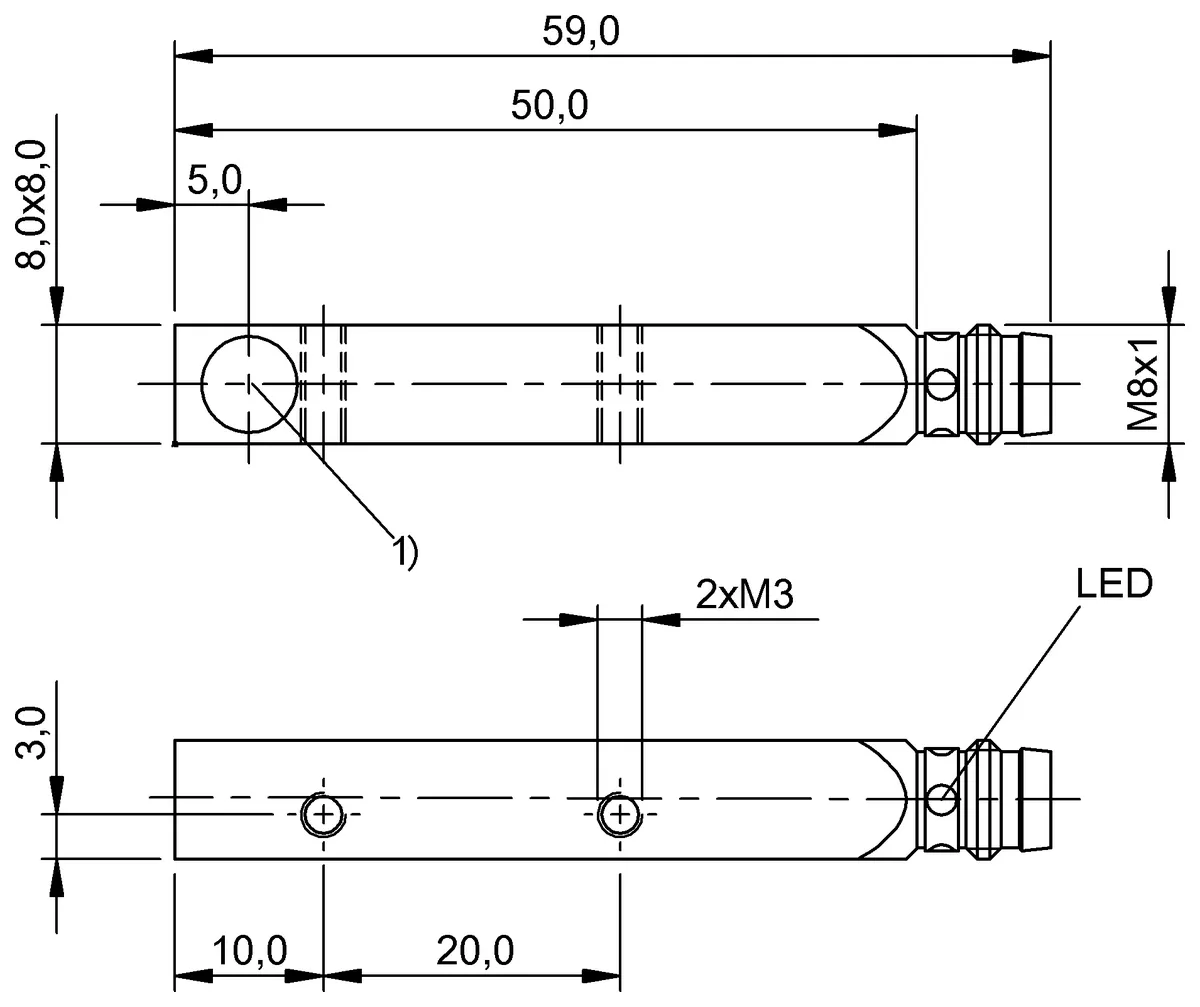

Dimension: 59 x 8 x 8 mm. Style Housing: 8×8. Installation: for flush mounting. Range: 1.5 mm. Switching output: PNP normally open (NO). Switching frequency: 5000 Hz. Housing material: Zinc, Die casting. Material sensing surface: PBT. Connection: Connector, M8x1-Male, 3-pin. Operating voltage Ub: 10…30 VDC. Ambient temperature: -25…70 °C. IP rating: IP67. Approval/Conformity: CEUKCAcULusWEEE
Specification
Key features
| Dimension | 59 x 8 x 8 mm |
|---|---|
| Style Housing | 8x8 |
| Installation | for flush mounting |
| Range | 1.5 mm |
| Switching output | PNP normally open (NO) |
| Switching frequency | 5000 Hz |
| Housing material | Zinc, Die casting |
| Material sensing surface | PBT |
| Connection | Connector, M8x1-Male, 3-pin |
| Operating voltage Ub | 10...30 VDC |
| Ambient temperature | -25...70 °C |
| IP rating | IP67 |
| Approval/Conformity | CEUKCAcULusWEEE |
