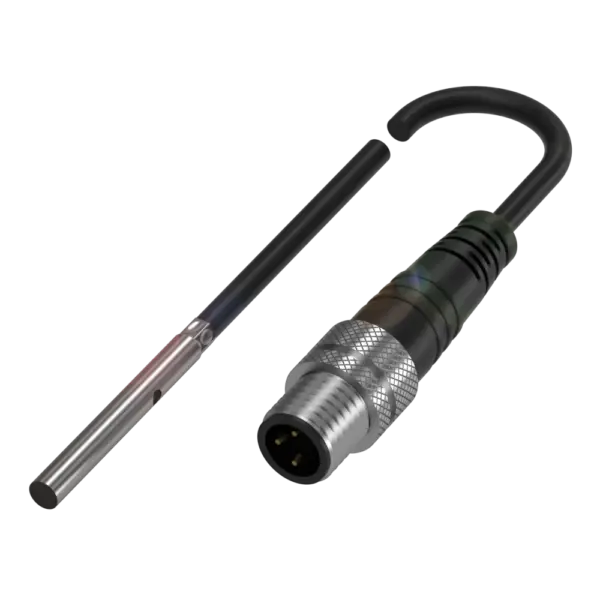

Balluff BES00M5
Dimension: Ø 3 x 27 mm. Style Housing: D3.0. Installation: for flush mounting. Range: 1 mm. Switching output: PNP normally open (NO). Switching frequency: 3500 Hz. Housing material: Stainless steel. M…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Dimension: Ø 3 x 27 mm. Style Housing: D3.0. Installation: for flush mounting. Range: 1 mm. Switching output: PNP normally open (NO). Switching frequency: 3500 Hz. Housing material: Stainless steel. Material sensing surface: PBT. Connection: Cable with connector, M8x1-Male, 3-pin, 0.30 m, PUR. Operating voltage Ub: 10…30 VDC. Ambient temperature: -25…70 °C. IP rating: IP67. Approval/Conformity: cULusCEUKCAWEEE
Specification
Key features

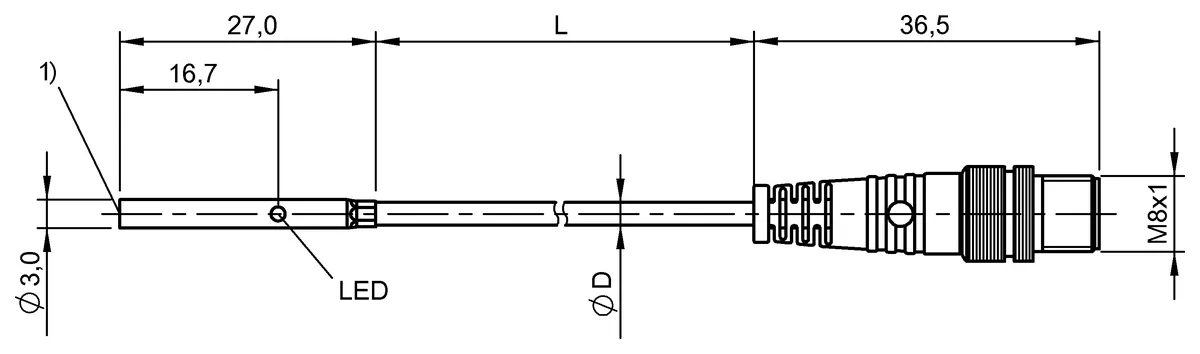

| Dimension | Ø 3 x 27 mm |
|---|---|
| Style Housing | D3.0 |
| Installation | for flush mounting |
| Range | 1 mm |
| Switching output | PNP normally open (NO) |
| Switching frequency | 3500 Hz |
| Housing material | Stainless steel |
| Material sensing surface | PBT |
| Connection | Cable with connector, M8x1-Male, 3-pin, 0.30 m, PUR |
| Operating voltage Ub | 10...30 VDC |
| Ambient temperature | -25...70 °C |
| IP rating | IP67 |
| Approval/Conformity | cULusCEUKCAWEEE |
