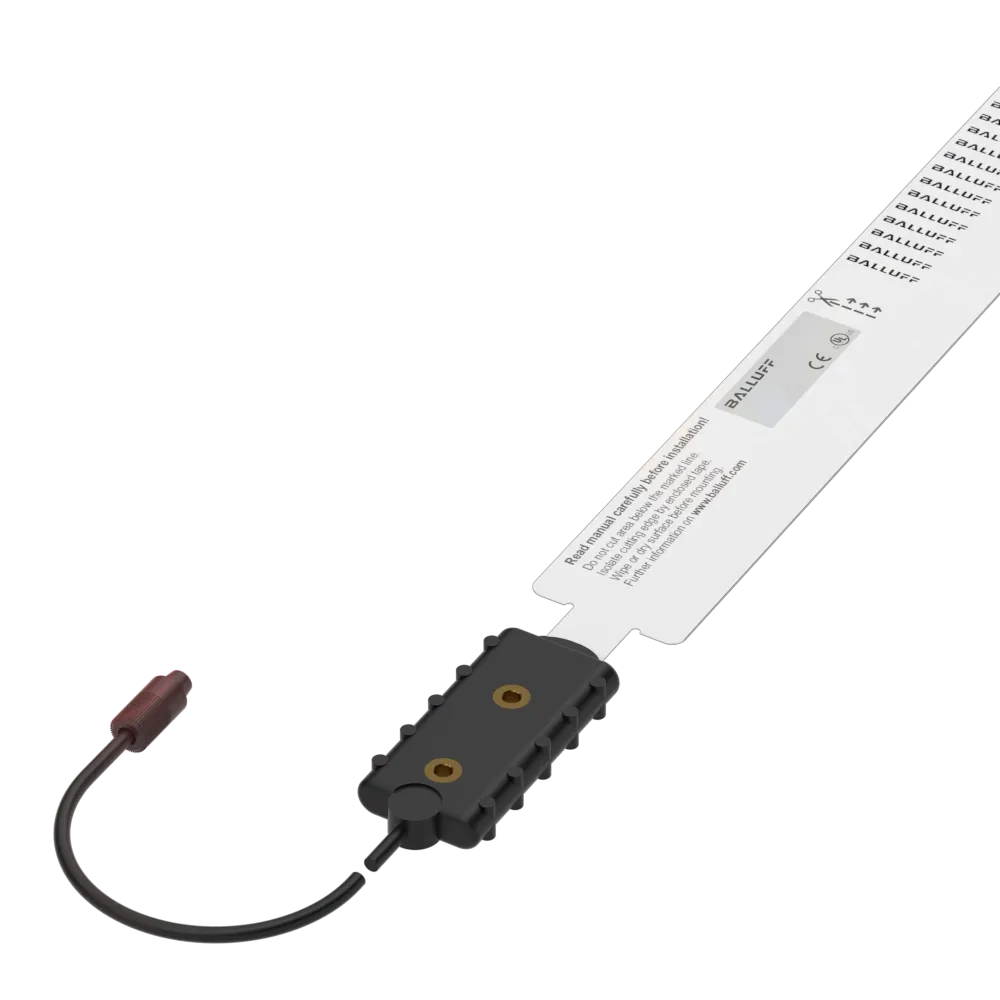

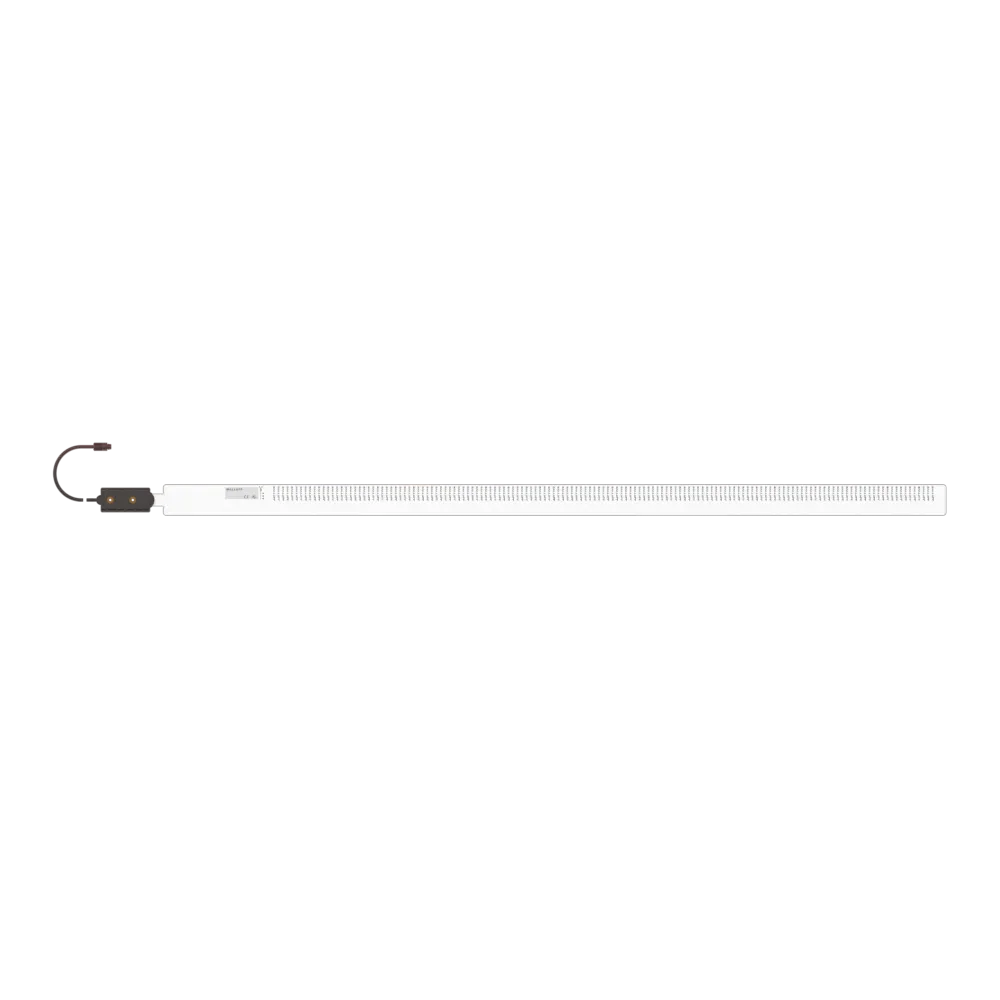

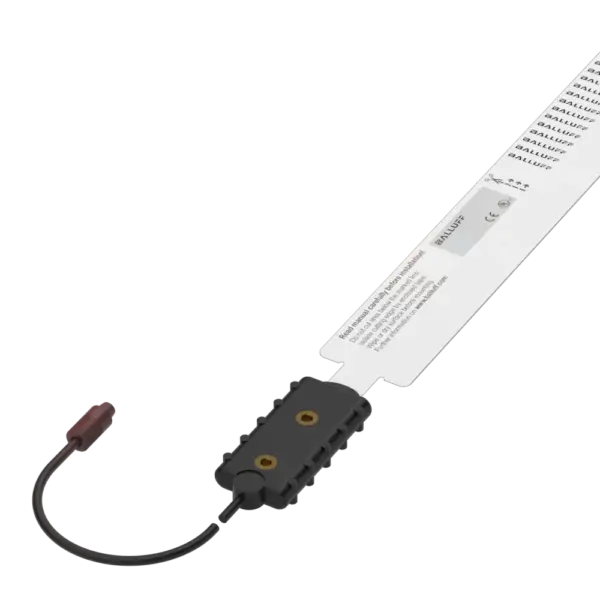

Balluff BCW0004

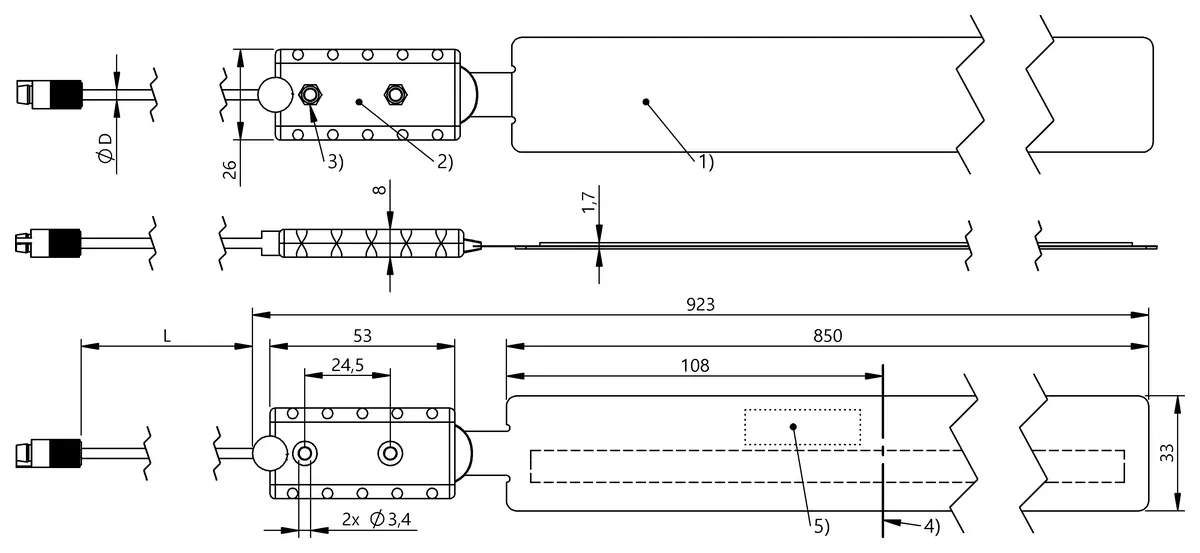

Dimension: 33 x 2 x 850 mm. Series: F03. Installation: flush with container outer wall. Connection: Cable with connector, Binder 719, 3-pin, 0.3 m, TPU. Switching frequency: 50 Hz. Interface: Special…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Dimension: 33 x 2 x 850 mm. Series: F03. Installation: flush with container outer wall. Connection: Cable with connector, Binder 719, 3-pin, 0.3 m, TPU. Switching frequency: 50 Hz. Interface: Special interface. Sensitivity: adjustable on base unit. Housing material: PETPA. Material sensing surface: 3M VHB 5925. Ambient temperature: 0…60 °C. Operating voltage Ub: 4…8 VDC. Approval/Conformity: CEUKCAcULusWEEE. IP rating: IP64
Specification
Key features
| Dimension | 33 x 2 x 850 mm |
|---|---|
| Series | F03 |
| Installation | flush with container outer wall |
| Connection | Cable with connector, Binder 719, 3-pin, 0.3 m, TPU |
| Switching frequency | 50 Hz |
| Interface | Special interface |
| Sensitivity | adjustable on base unit |
| Housing material | PETPA |
| Material sensing surface | 3M VHB 5925 |
| Ambient temperature | 0...60 °C |
| Operating voltage Ub | 4...8 VDC |
| Approval/Conformity | CEUKCAcULusWEEE |
| IP rating | IP64 |
