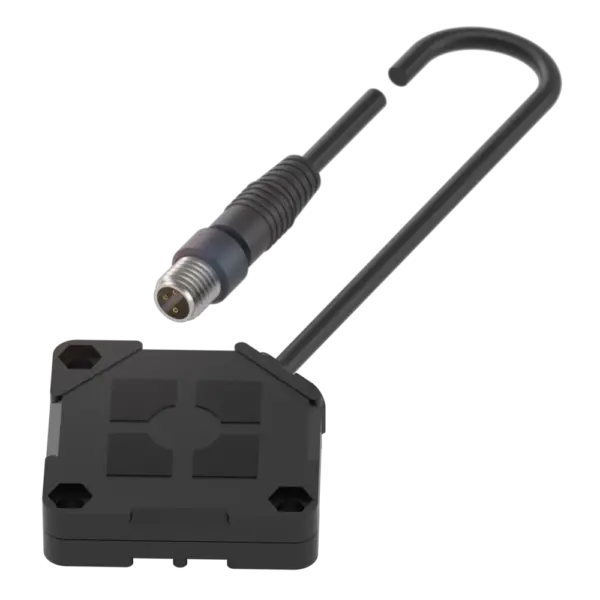

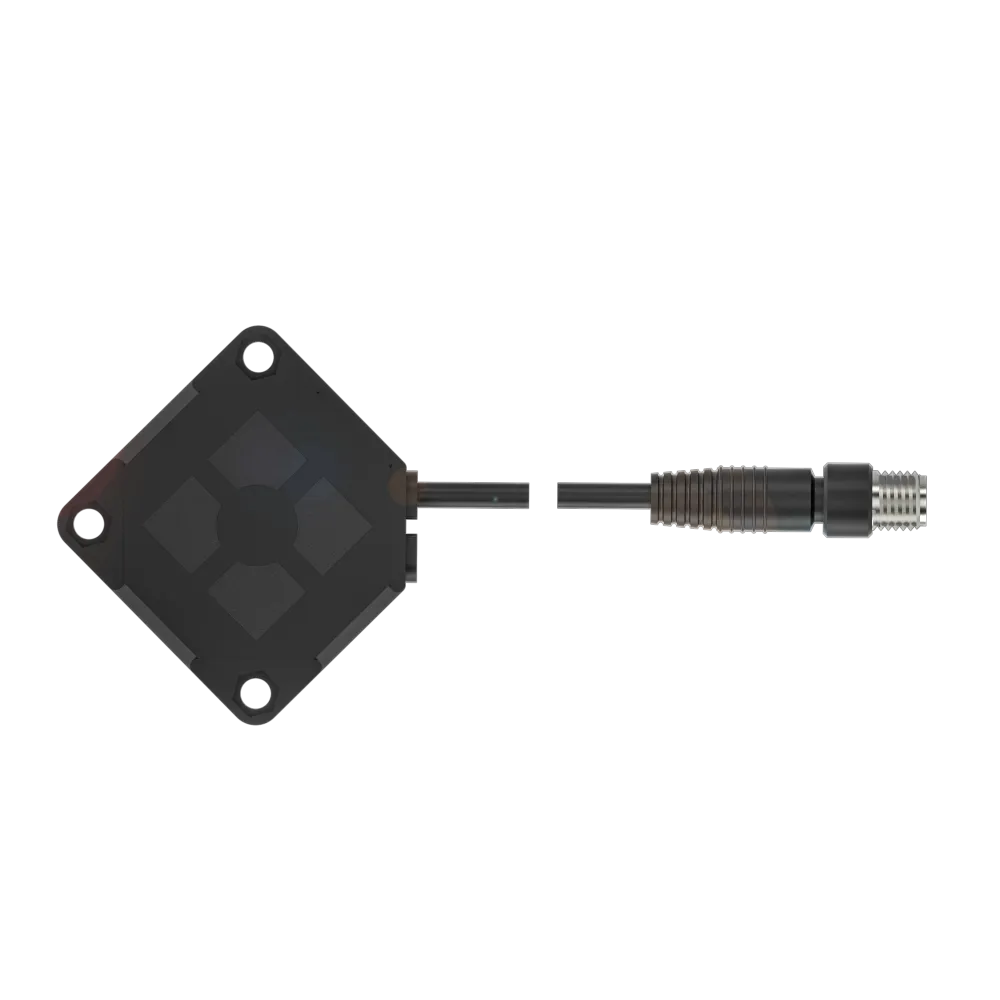

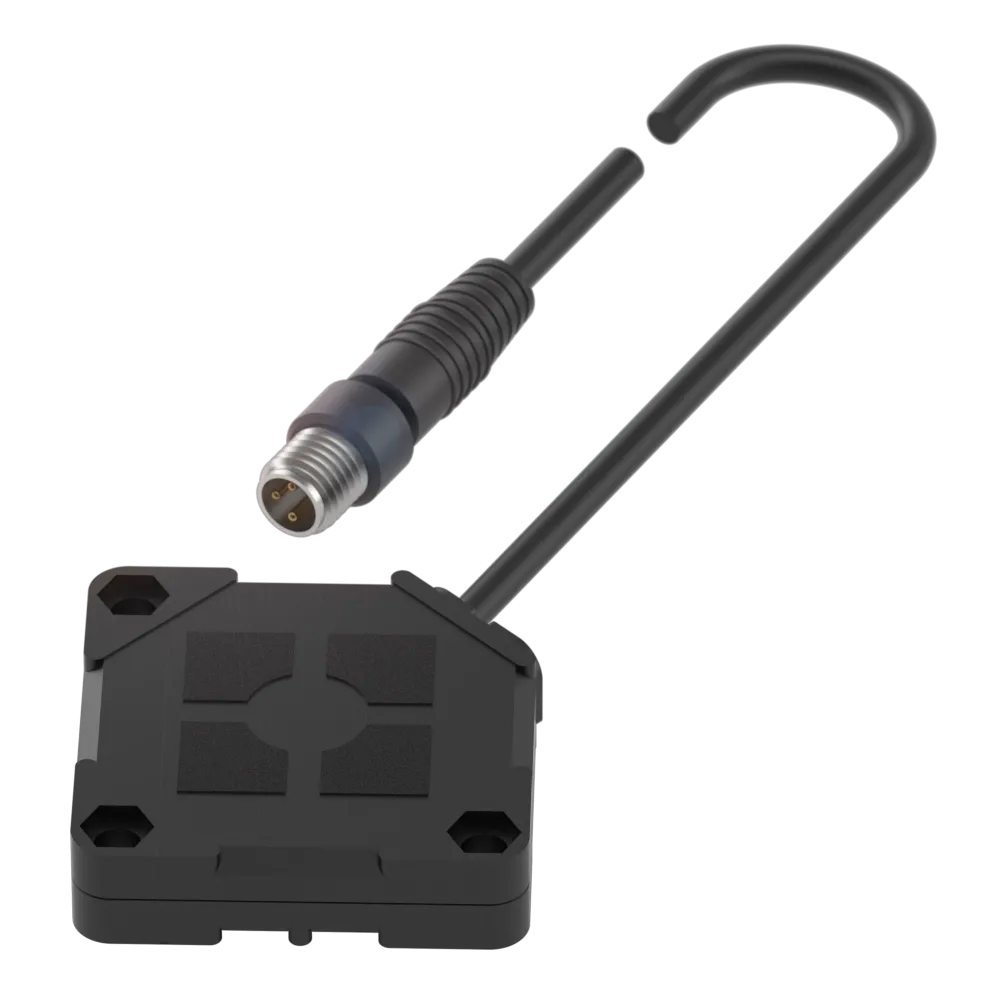

Balluff BCS00U6
Dimension: 40 x 40 x 10 mm. Series: Q40. Installation: for flush mounting. Connection: Cable with connector, M8x1-Male, 3-pin, 0.30 m, PUR. Switching output: PNP normally open (NO). Switching frequenc…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Dimension: 40 x 40 x 10 mm. Series: Q40. Installation: for flush mounting. Connection: Cable with connector, M8x1-Male, 3-pin, 0.30 m, PUR. Switching output: PNP normally open (NO). Switching frequency: 100 Hz. Range: 1…20 mm. Sensitivity: Switching distance adjustable. Housing material: PBT. Material sensing surface: PBT. Ambient temperature: -5…85 °C. Operating voltage Ub: 10…30 VDC. Approval/Conformity: CEUKCAcULusWEEE. IP rating: IP67
Specification
Key features
| Dimension | 40 x 40 x 10 mm |
|---|---|
| Series | Q40 |
| Installation | for flush mounting |
| Connection | Cable with connector, M8x1-Male, 3-pin, 0.30 m, PUR |
| Switching output | PNP normally open (NO) |
| Switching frequency | 100 Hz |
| Range | 1...20 mm |
| Sensitivity | Switching distance adjustable |
| Housing material | PBT |
| Material sensing surface | PBT |
| Ambient temperature | -5...85 °C |
| Operating voltage Ub | 10...30 VDC |
| Approval/Conformity | CEUKCAcULusWEEE |
| IP rating | IP67 |
