Fast delivery within 72 Hours

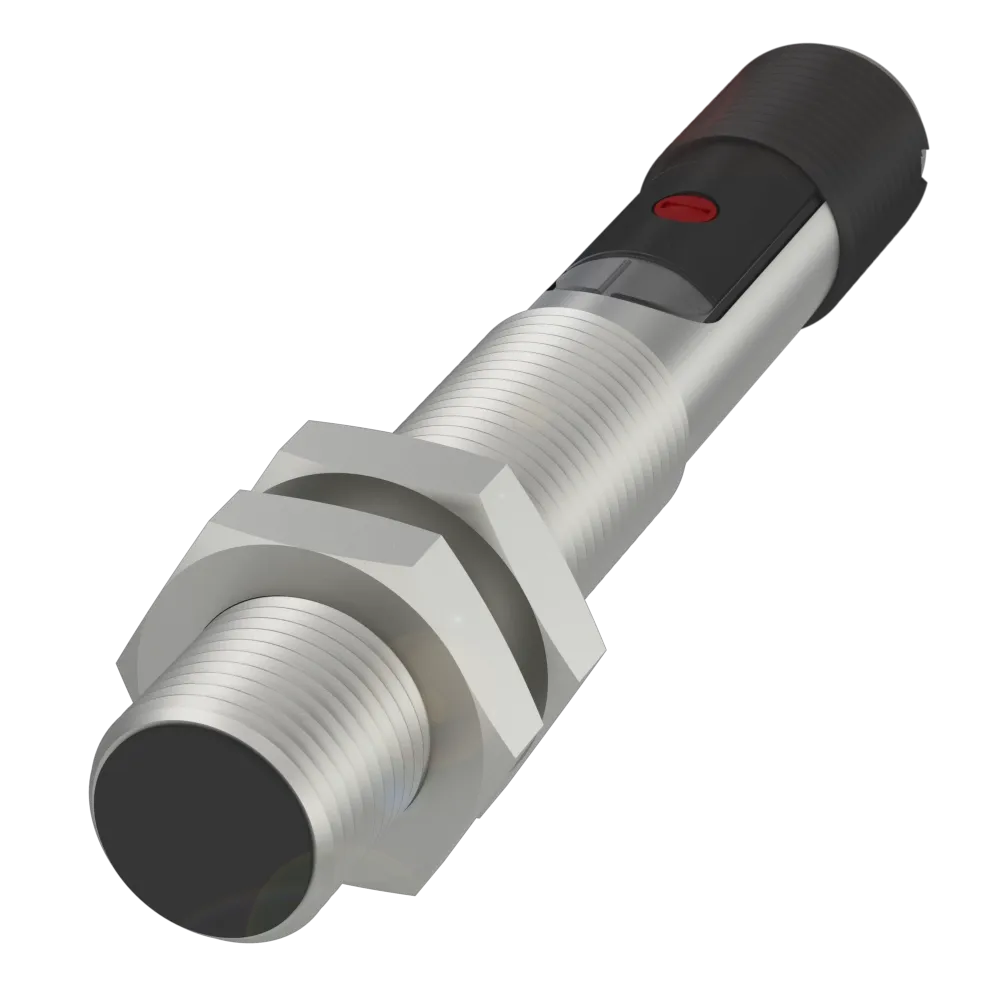

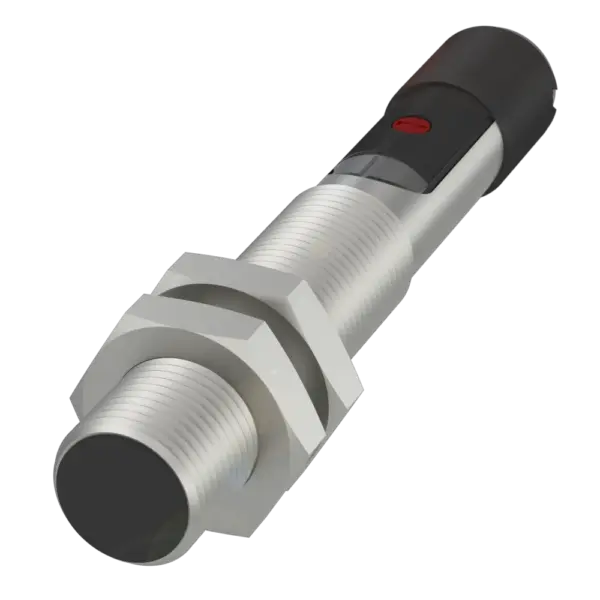

Balluff BCS00P0
Dimension: Ø 12 x 75 mm. Series: M12. Thread (A): M12x1. Installation: for flush mounting. Connection: Connector, M12x1-Male, 3-pin. Switching output: PNP normally open (NO). Switching frequency: 100…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Dimension: Ø 12 x 75 mm. Series: M12. Thread (A): M12x1. Installation: for flush mounting. Connection: Connector, M12x1-Male, 3-pin. Switching output: PNP normally open (NO). Switching frequency: 100 Hz. Range: 1…4 mm. Sensitivity: Switching distance adjustable. Housing material: 1.4305 stainless steel. Material sensing surface: PBT. Ambient temperature: -25…85 °C. Operating voltage Ub: 10…30 VDC. Approval/Conformity: CEUKCAcULusWEEE. IP rating: IP67
Specification
Key features

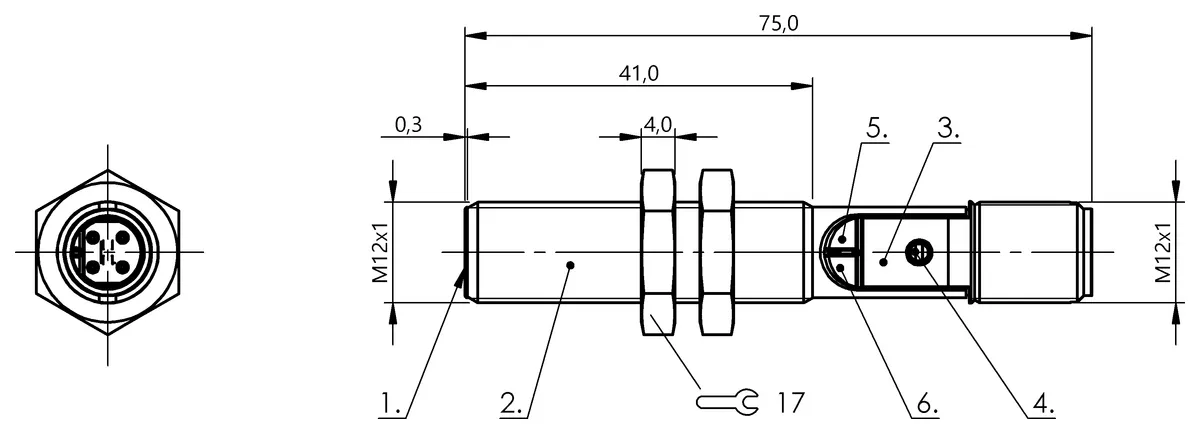

| Dimension | Ø 12 x 75 mm |
|---|---|
| Series | M12 |
| Thread (A) | M12x1 |
| Installation | for flush mounting |
| Connection | Connector, M12x1-Male, 3-pin |
| Switching output | PNP normally open (NO) |
| Switching frequency | 100 Hz |
| Range | 1...4 mm |
| Sensitivity | Switching distance adjustable |
| Housing material | 1.4305 stainless steel |
| Material sensing surface | PBT |
| Ambient temperature | -25...85 °C |
| Operating voltage Ub | 10...30 VDC |
| Approval/Conformity | CEUKCAcULusWEEE |
| IP rating | IP67 |
