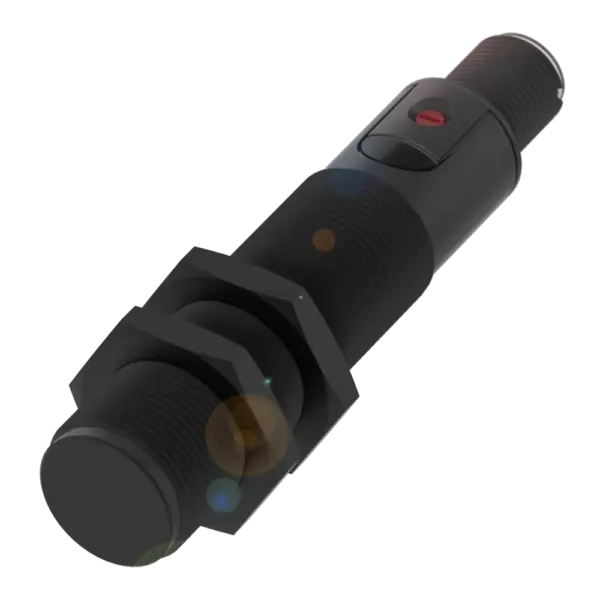

Balluff BCS00M8

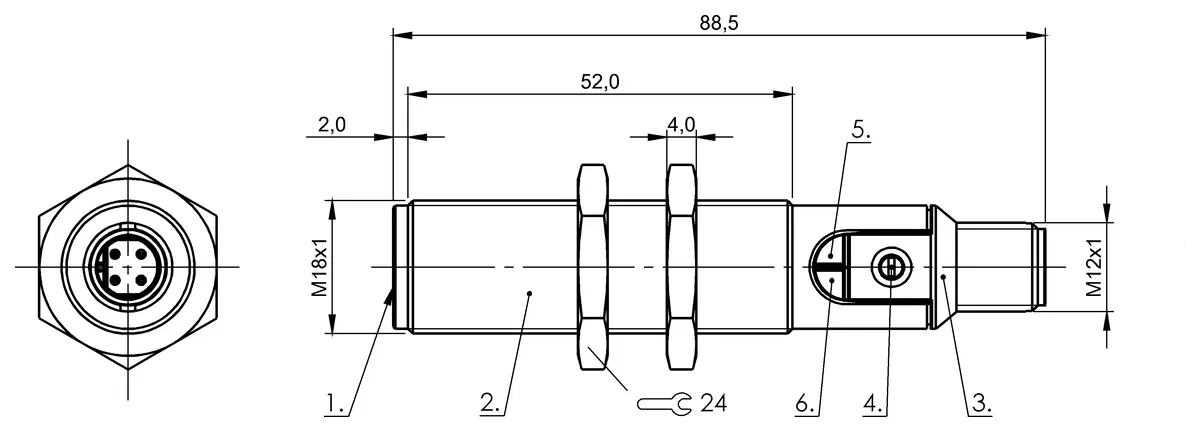

Dimension: Ø 18 x 88.5 mm. Series: M18. Thread (A): M18x1. Installation: for flush mounting. Connection: Connector, M12x1-Male, 3-pin. Switching output: PNP normally open (NO). Switching frequency: 10…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Dimension: Ø 18 x 88.5 mm. Series: M18. Thread (A): M18x1. Installation: for flush mounting. Connection: Connector, M12x1-Male, 3-pin. Switching output: PNP normally open (NO). Switching frequency: 100 Hz. Range: 1…8 mm. Sensitivity: Switching distance adjustable. Housing material: PBT. Material sensing surface: PBT. Ambient temperature: -25…85 °C. Operating voltage Ub: 10…30 VDC. Approval/Conformity: CEUKCAcULusWEEE. IP rating: IP67
Specification
Key features
| Dimension | Ø 18 x 88.5 mm |
|---|---|
| Series | M18 |
| Thread (A) | M18x1 |
| Installation | for flush mounting |
| Connection | Connector, M12x1-Male, 3-pin |
| Switching output | PNP normally open (NO) |
| Switching frequency | 100 Hz |
| Range | 1...8 mm |
| Sensitivity | Switching distance adjustable |
| Housing material | PBT |
| Material sensing surface | PBT |
| Ambient temperature | -25...85 °C |
| Operating voltage Ub | 10...30 VDC |
| Approval/Conformity | CEUKCAcULusWEEE |
| IP rating | IP67 |
