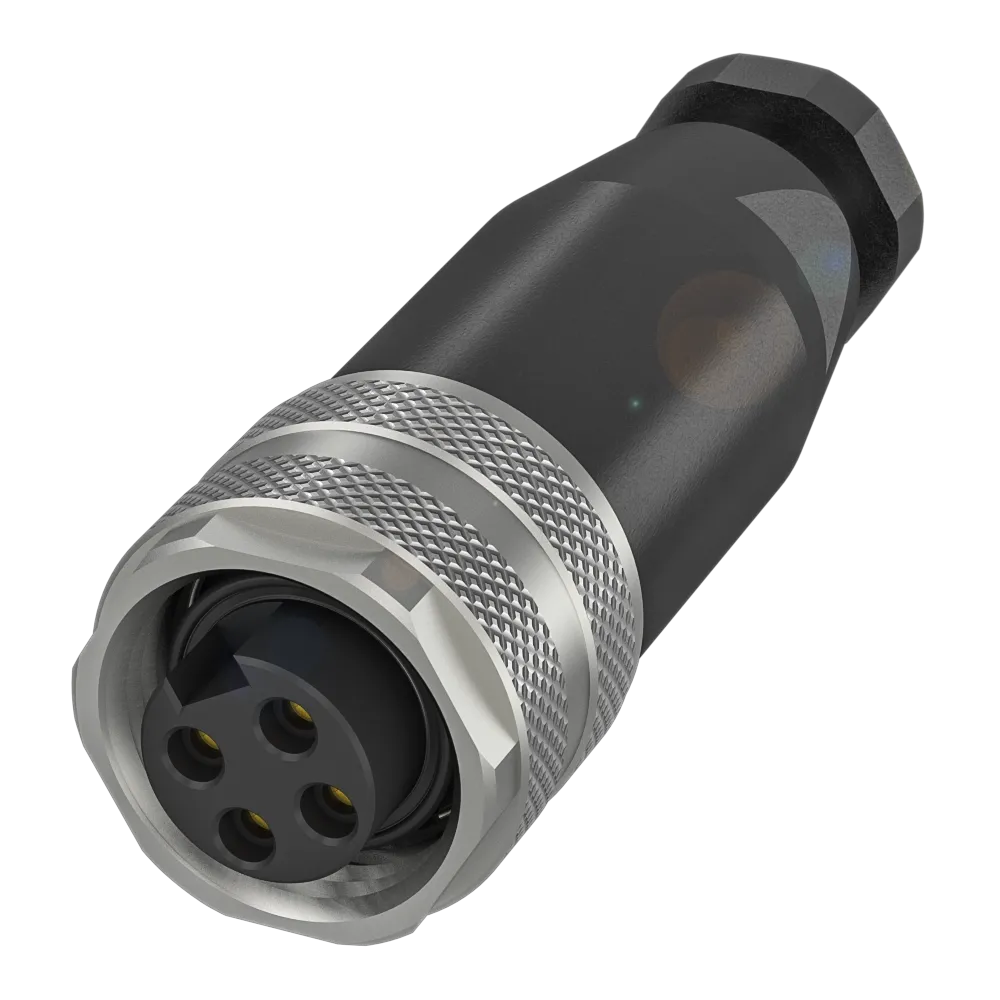

Balluff BCC0707
Connection: 7/8″-16 UN-Female, straight, 4-pin. Number of connectable contacts: 4. Connection cross-section: 0.14…1.5 mm². Type of wire mounting: Screw terminals. Cable diameter D: 8…10 mm. Operat…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Connection: 7/8″-16 UN-Female, straight, 4-pin. Number of connectable contacts: 4. Connection cross-section: 0.14…1.5 mm². Type of wire mounting: Screw terminals. Cable diameter D: 8…10 mm. Operating voltage Ub: 600 VDC / 600 VAC. Rated current (40 °C): 9.0 A. IP rating: IP67. Ambient temperature: -25…85 °C. Approval/Conformity: CEcURusWEEE
Specification
Key features
| Connection | 7/8"-16 UN-Female, straight, 4-pin |
|---|---|
| Number of connectable contacts | 4 |
| Connection cross-section | 0.14...1.5 mm² |
| Type of wire mounting | Screw terminals |
| Cable diameter D | 8...10 mm |
| Operating voltage Ub | 600 VDC / 600 VAC |
| Rated current (40 °C) | 9.0 A |
| IP rating | IP67 |
| Ambient temperature | -25...85 °C |
| Approval/Conformity | CEcURusWEEE |
