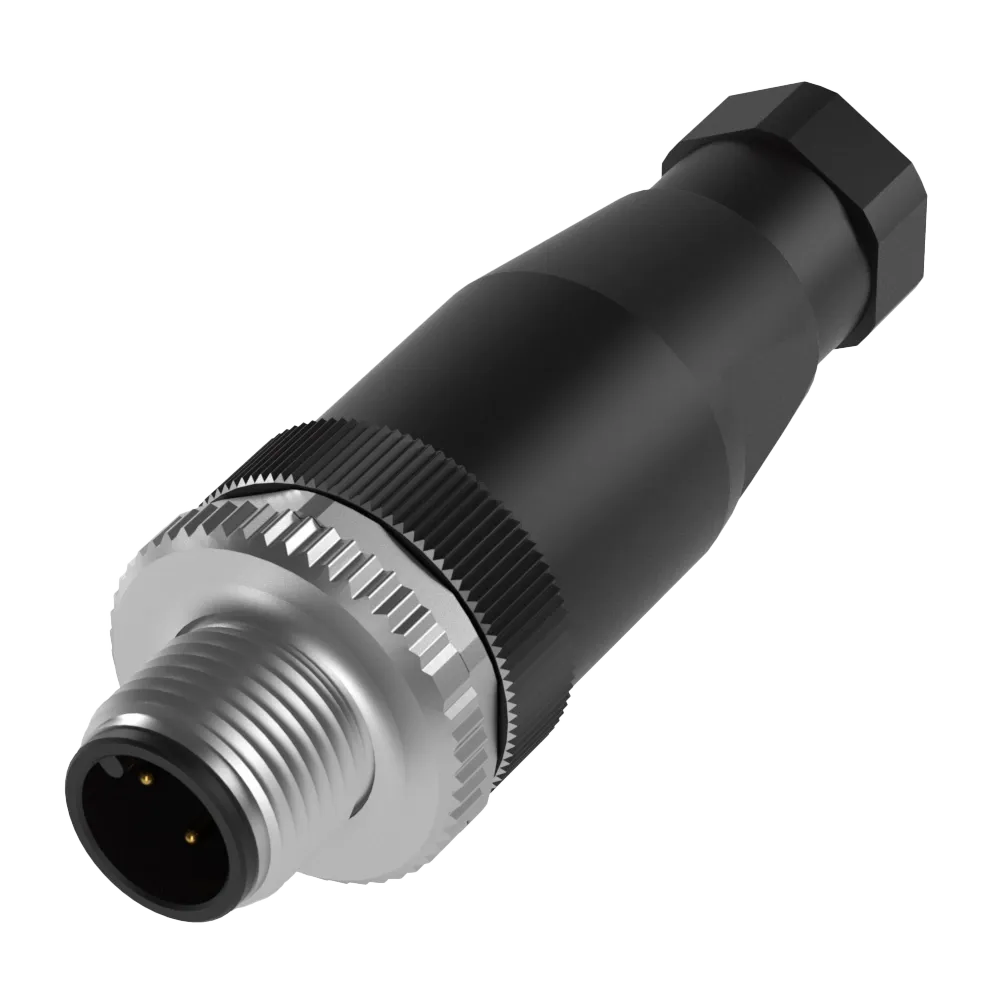

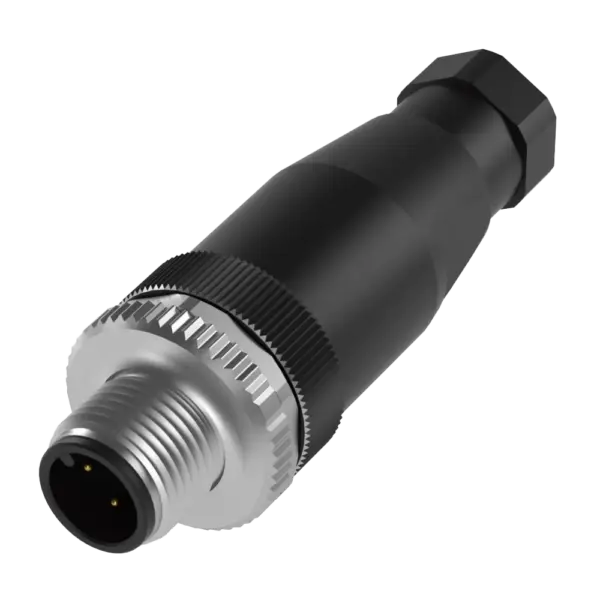

Balluff BCC06YA
Connection: M12x1-Male, straight, 5-pin, A-coded. Number of connectable contacts: 5. Connection cross-section: 0.14…0.75 mm². Type of wire mounting: Screw terminals. Cable diameter D: 4…6 mm. Oper…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Connection: M12x1-Male, straight, 5-pin, A-coded. Number of connectable contacts: 5. Connection cross-section: 0.14…0.75 mm². Type of wire mounting: Screw terminals. Cable diameter D: 4…6 mm. Operating voltage Ub: 125 VDC / 125 VAC. Rated current (40 °C): 4.0 A. IP rating: IP67. Ambient temperature: -40…85 °C. Approval/Conformity: CEcURusWEEE
Specification
Key features
| Connection | M12x1-Male, straight, 5-pin, A-coded |
|---|---|
| Number of connectable contacts | 5 |
| Connection cross-section | 0.14...0.75 mm² |
| Type of wire mounting | Screw terminals |
| Cable diameter D | 4...6 mm |
| Operating voltage Ub | 125 VDC / 125 VAC |
| Rated current (40 °C) | 4.0 A |
| IP rating | IP67 |
| Ambient temperature | -40...85 °C |
| Approval/Conformity | CEcURusWEEE |
