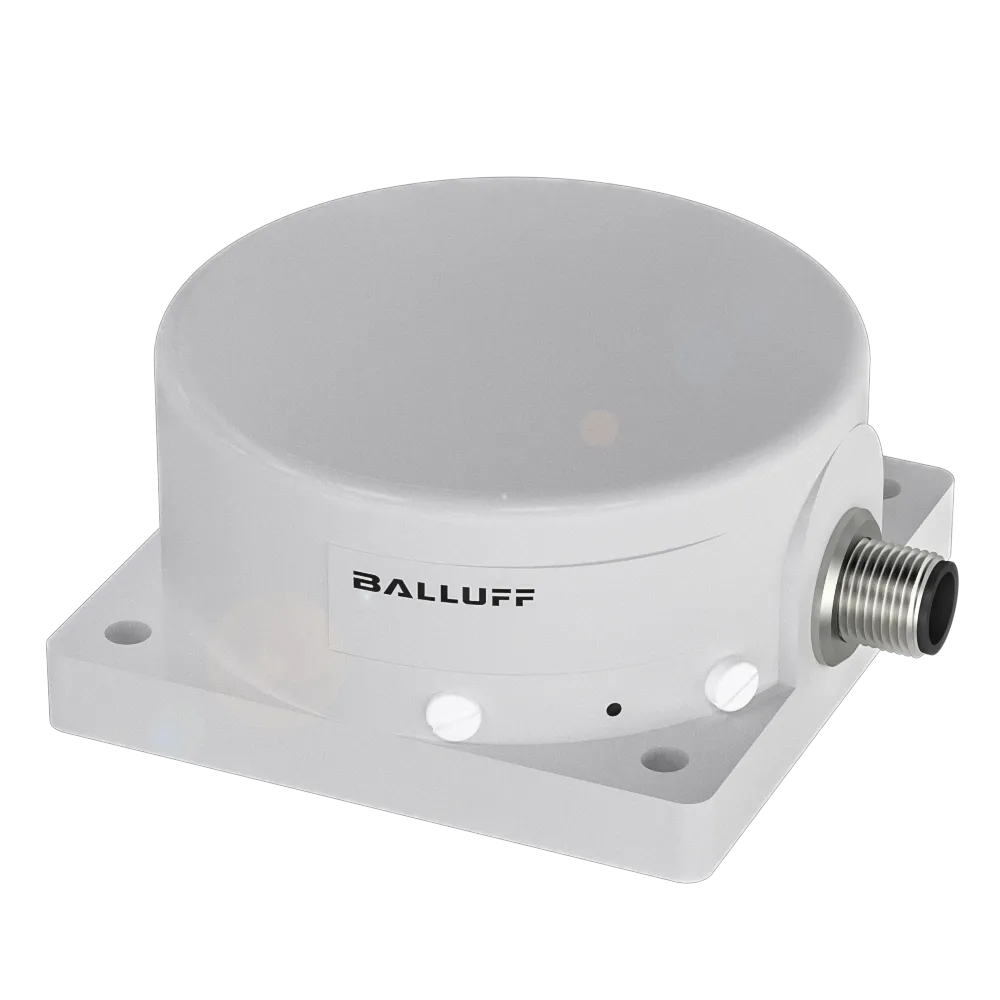

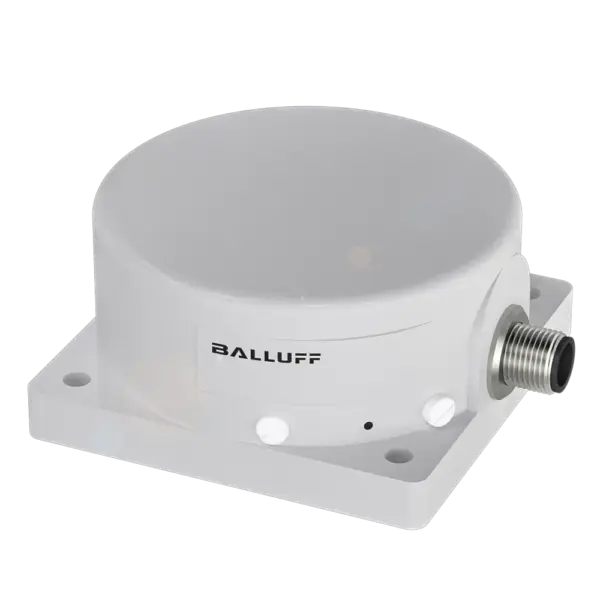

Balluff BAW005J
Dimension: 80 x 40 x 80 mm. Style Housing: block style. Installation: non-flush. Range: 0…50 mm. Analog output: Analog, voltage 0…10 V. Output characteristic: falling on approach. Limit frequency…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Dimension: 80 x 40 x 80 mm. Style Housing: block style. Installation: non-flush. Range: 0…50 mm. Analog output: Analog, voltage 0…10 V. Output characteristic: falling on approach. Limit frequency –3 dB: 15 Hz. Repeat accuracy per BWN: ±12 µm. Non-linearity max.: ±750 µm [15…35 mm]; ±1500 µm [5…15 mm, 35…45 mm]; ±2000 µm [0…5 mm, 45…50 mm]. Housing material: PBT. Material sensing surface: PBT. Connection: Connector, M12x1-Male, 3-pin. Operating voltage Ub: 20…30 VDC. Ambient temperature: -10…70 °C. IP rating: IP67. Approval/Conformity: CEWEEE
Specification
Key features

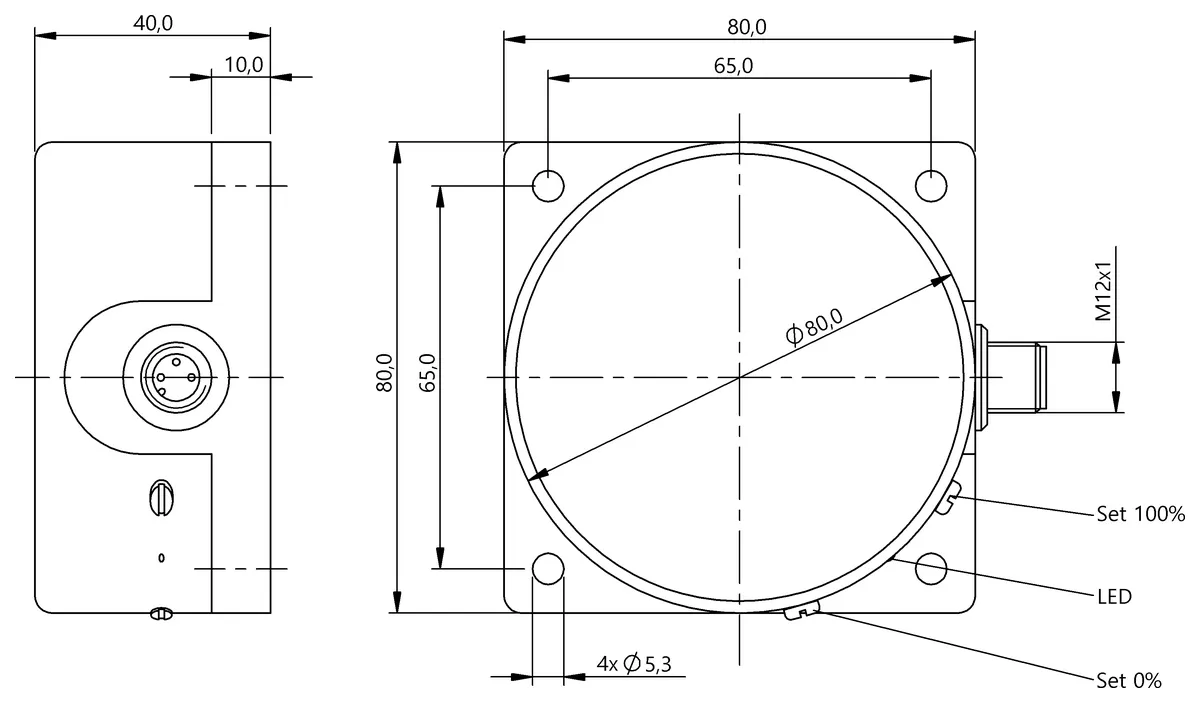

| Dimension | 80 x 40 x 80 mm |
|---|---|
| Style Housing | block style |
| Installation | non-flush |
| Range | 0...50 mm |
| Analog output | Analog, voltage 0...10 V |
| Output characteristic | falling on approach |
| Limit frequency –3 dB | 15 Hz |
| Repeat accuracy per BWN | ±12 µm |
| Non-linearity max. | ±750 µm [15…35 mm]; ±1500 µm [5…15 mm, 35…45 mm]; ±2000 µm [0…5 mm, 45…50 mm] |
| Housing material | PBT |
| Material sensing surface | PBT |
| Connection | Connector, M12x1-Male, 3-pin |
| Operating voltage Ub | 20...30 VDC |
| Ambient temperature | -10...70 °C |
| IP rating | IP67 |
| Approval/Conformity | CEWEEE |
