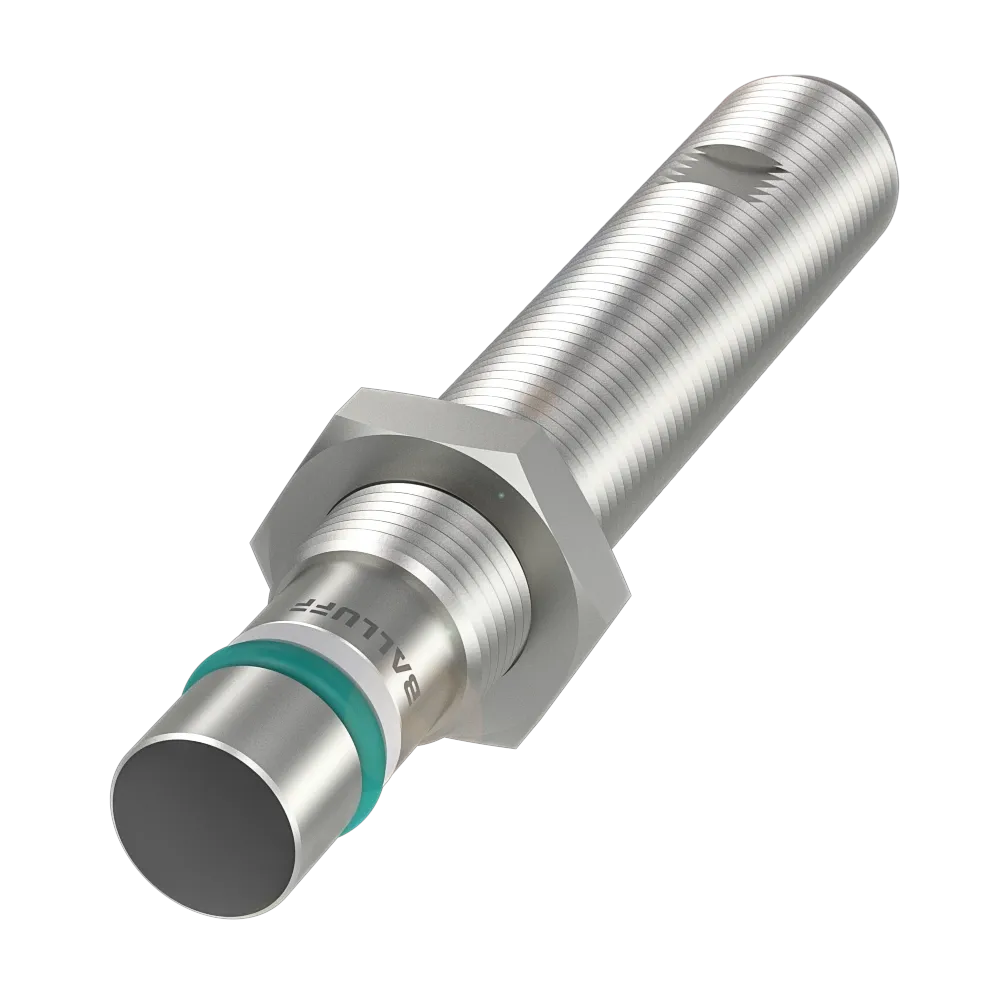

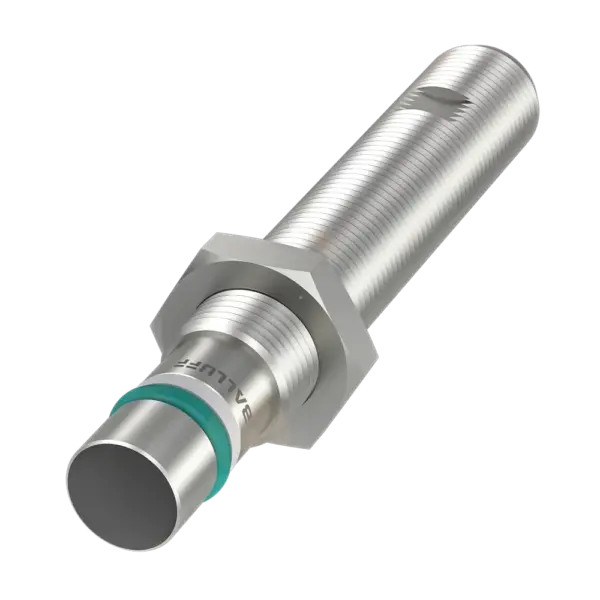

Balluff BAW0040

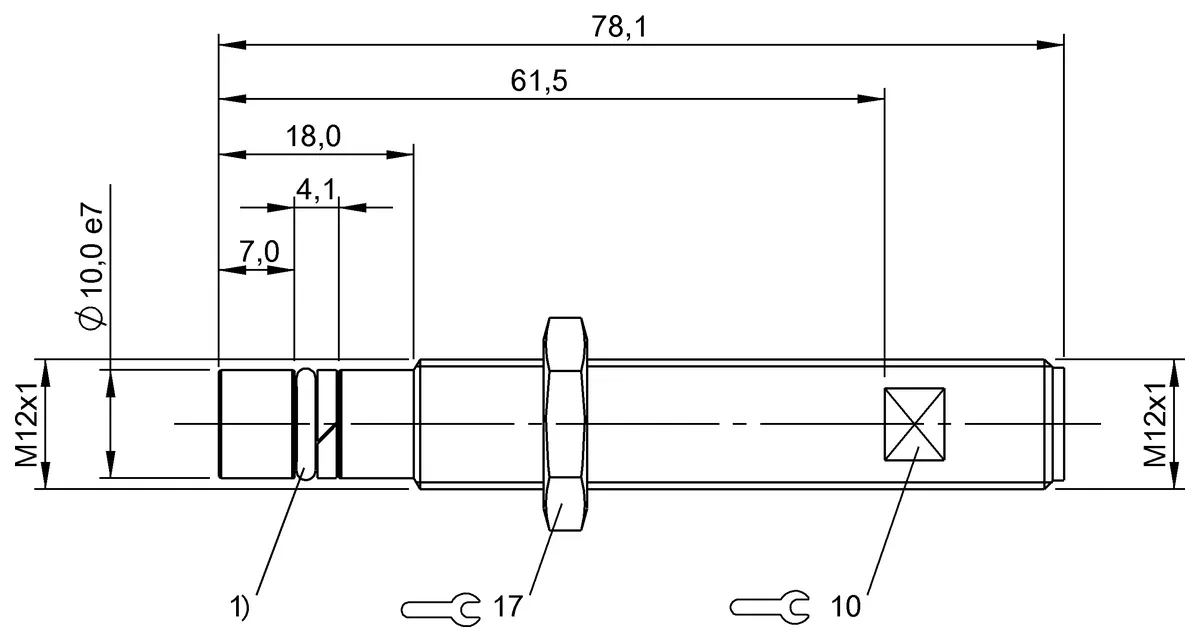

Dimension: Ø 12 x 78 mm. Style Housing: M12x1. Installation: for flush mounting. Range: 0.5…2 mm. Analog output: Analog, voltage 0…10 V. Output characteristic: falling on approach. Limit frequency…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Dimension: Ø 12 x 78 mm. Style Housing: M12x1. Installation: for flush mounting. Range: 0.5…2 mm. Analog output: Analog, voltage 0…10 V. Output characteristic: falling on approach. Limit frequency –3 dB: 1000 Hz. Repeat accuracy per BWN: ±8 µm. Non-linearity max.: ±45 µm. Housing material: Stainless steel. Material sensing surface: Ceramic. Connection: Connector, M12x1-Male, 3-pin. Operating voltage Ub: 15…30 VDC. Ambient temperature: -25…85 °C. Pressure rating max.: 500 bar. IP rating: IP68. Approval/Conformity: CEUKCAcULusWEEE
Specification
Key features
| Dimension | Ø 12 x 78 mm |
|---|---|
| Style Housing | M12x1 |
| Installation | for flush mounting |
| Range | 0.5...2 mm |
| Analog output | Analog, voltage 0...10 V |
| Output characteristic | falling on approach |
| Limit frequency –3 dB | 1000 Hz |
| Repeat accuracy per BWN | ±8 µm |
| Non-linearity max. | ±45 µm |
| Housing material | Stainless steel |
| Material sensing surface | Ceramic |
| Connection | Connector, M12x1-Male, 3-pin |
| Operating voltage Ub | 15...30 VDC |
| Ambient temperature | -25...85 °C |
| Pressure rating max. | 500 bar |
| IP rating | IP68 |
| Approval/Conformity | CEUKCAcULusWEEE |
