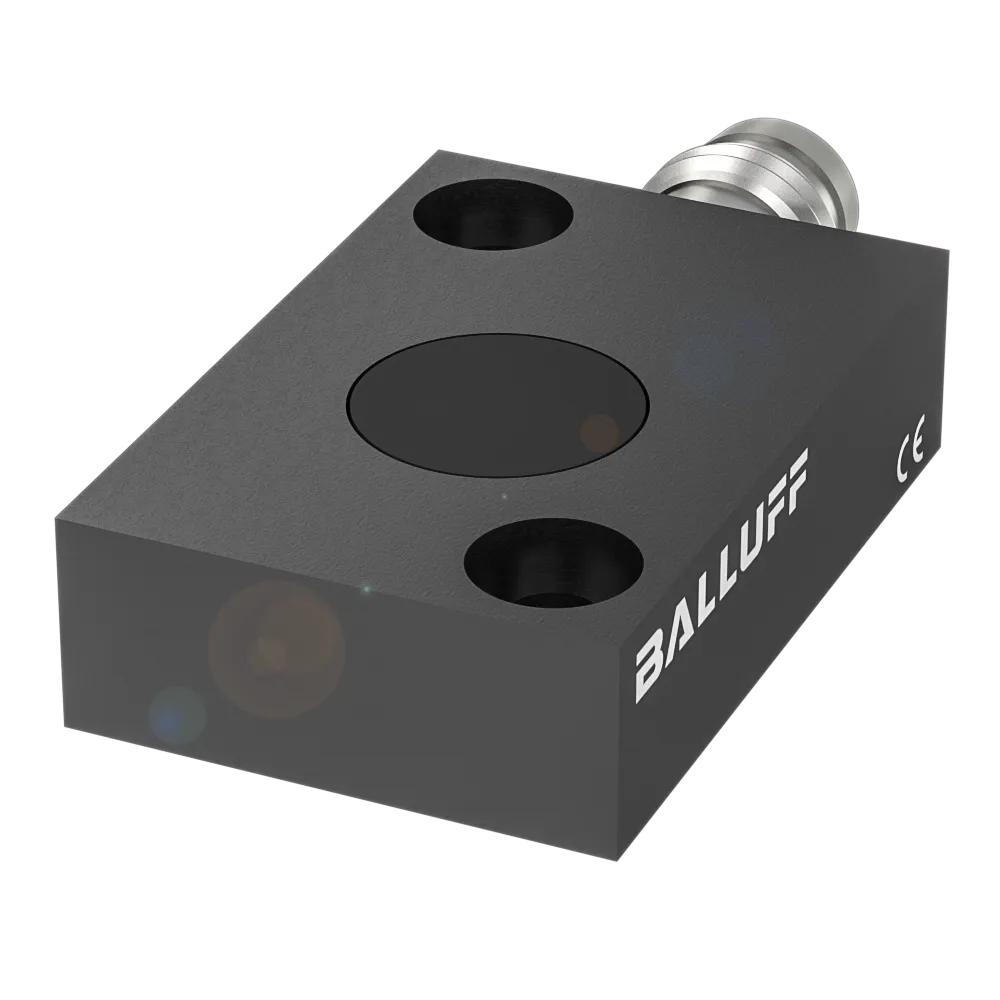

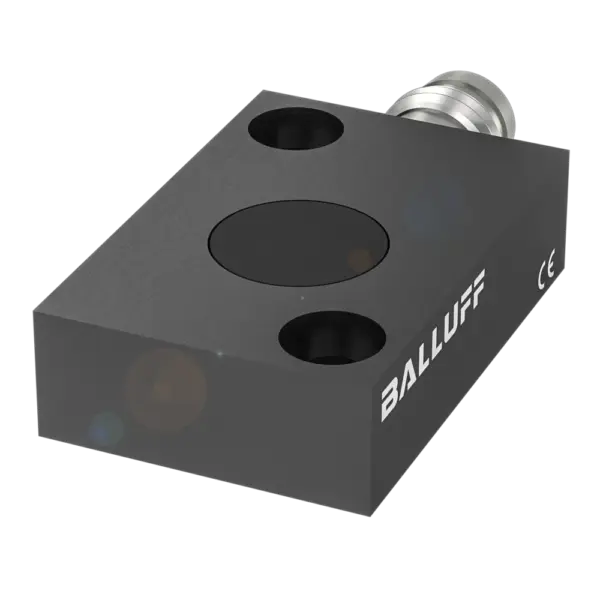

Balluff BAW0034
Dimension: 30 x 20 x 8 mm. Style Housing: block style. Installation: for flush mounting. Range: 0.5…2 mm. Analog output: Analog, voltage 0…10 V. Output characteristic: falling on approach. Limit f…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Dimension: 30 x 20 x 8 mm. Style Housing: block style. Installation: for flush mounting. Range: 0.5…2 mm. Analog output: Analog, voltage 0…10 V. Output characteristic: falling on approach. Limit frequency –3 dB: 1000 Hz. Repeat accuracy per BWN: ±12 µm. Non-linearity max.: ±45 µm. Housing material: Aluminium, Anodized. Material sensing surface: PBT. Connection: Connector, M8x1-Male, 3-pin. Operating voltage Ub: 21.6…26.4 VDC. Ambient temperature: -10…70 °C. IP rating: IP67. Approval/Conformity: CEUKCAcULusWEEE
Specification
Key features

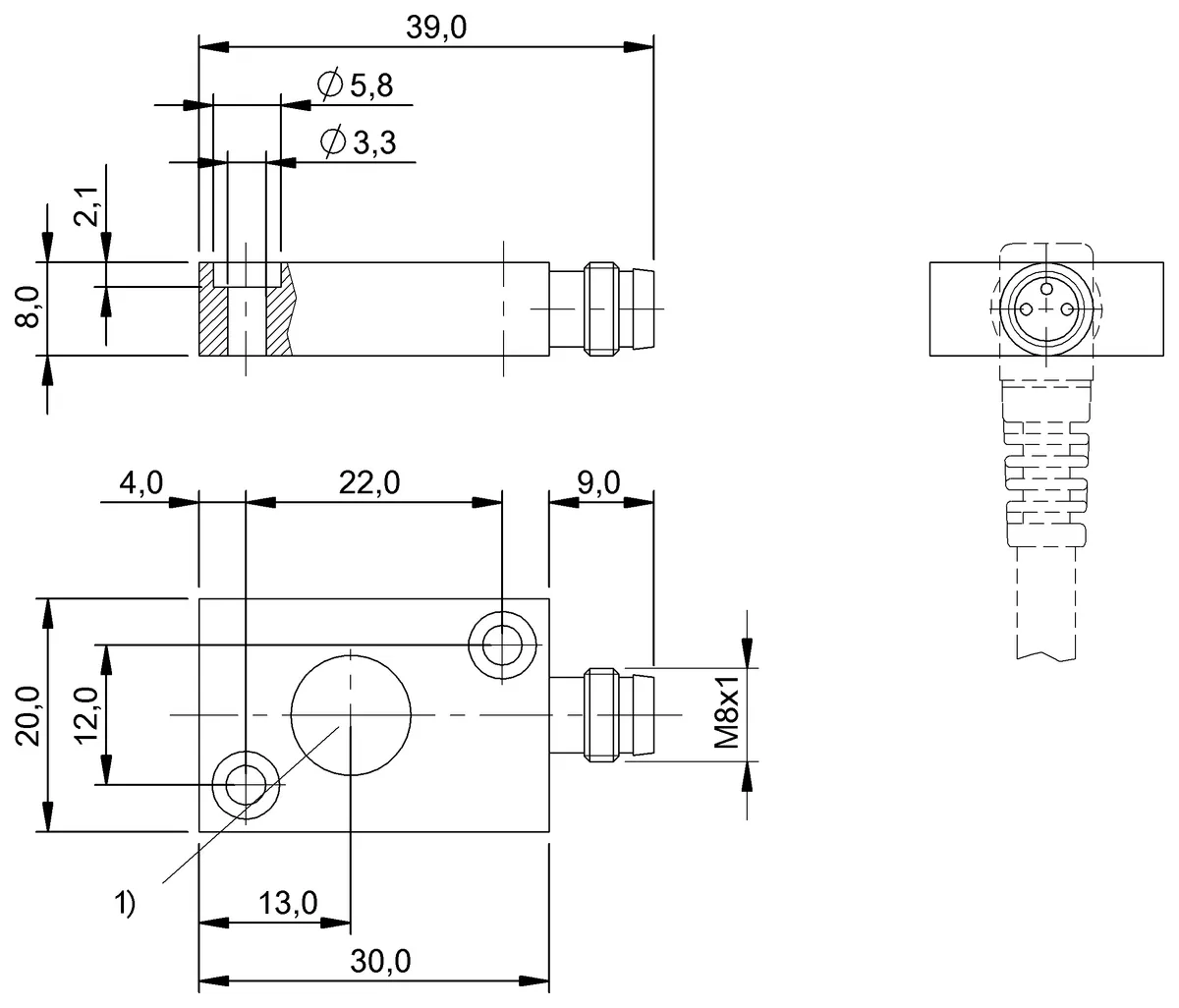

| Dimension | 30 x 20 x 8 mm |
|---|---|
| Style Housing | block style |
| Installation | for flush mounting |
| Range | 0.5...2 mm |
| Analog output | Analog, voltage 0...10 V |
| Output characteristic | falling on approach |
| Limit frequency –3 dB | 1000 Hz |
| Repeat accuracy per BWN | ±12 µm |
| Non-linearity max. | ±45 µm |
| Housing material | Aluminium, Anodized |
| Material sensing surface | PBT |
| Connection | Connector, M8x1-Male, 3-pin |
| Operating voltage Ub | 21.6...26.4 VDC |
| Ambient temperature | -10...70 °C |
| IP rating | IP67 |
| Approval/Conformity | CEUKCAcULusWEEE |
