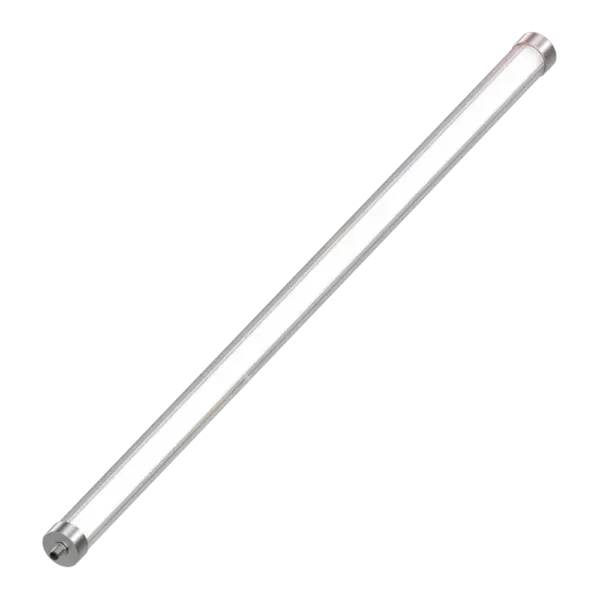

Balluff BAE00ZR
Connection: Connector, M12x1-Male, 4-pin. Version: Machine light. Dimension: Ø 45 x 1000 mm. Rated operating voltage Ue DC: 24 V. Material: Aluminium AnodizedBorosilicate crown glass. Illumination are…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Connection: Connector, M12x1-Male, 4-pin. Version: Machine light. Dimension: Ø 45 x 1000 mm. Rated operating voltage Ue DC: 24 V. Material: Aluminium AnodizedBorosilicate crown glass. Illumination area: 960 x 42 mm. Beam angle: 120 °. Light type: LED white light diffuse. Light intensity: 3700 lm. Color temperature: 5000 K. Ambient temperature: -20…40 °C. Approval/Conformity: CEUKCAcULusWEEE. IP rating: IP67
Specification
Key features
| Connection | Connector, M12x1-Male, 4-pin |
|---|---|
| Version | Machine light |

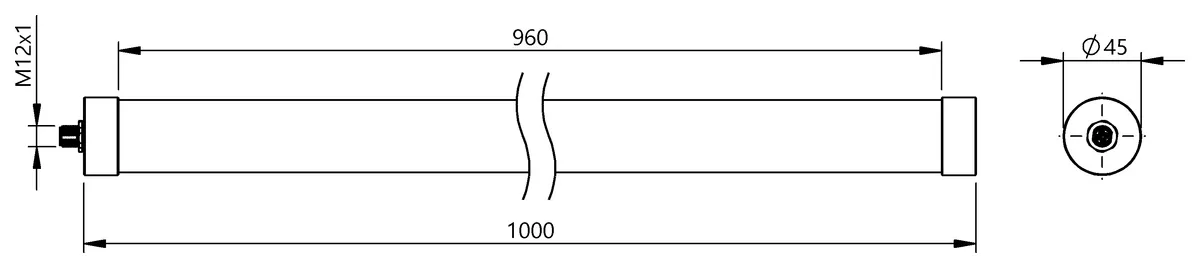

| Dimension | Ø 45 x 1000 mm |
| Rated operating voltage Ue DC | 24 V |
| Material | Aluminium AnodizedBorosilicate crown glass |
| Illumination area | 960 x 42 mm |
| Beam angle | 120 ° |
| Light type | LED white light diffuse |
| Light intensity | 3700 lm |
| Color temperature | 5000 K |
| Ambient temperature | -20...40 °C |
| Approval/Conformity | CEUKCAcULusWEEE |
| IP rating | IP67 |
