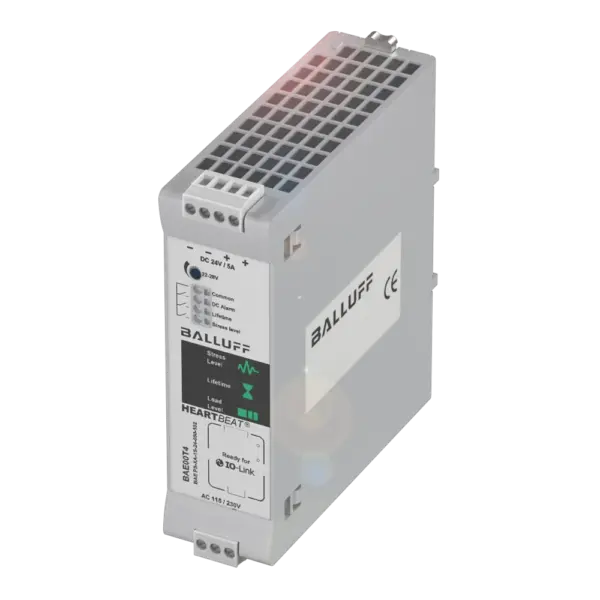

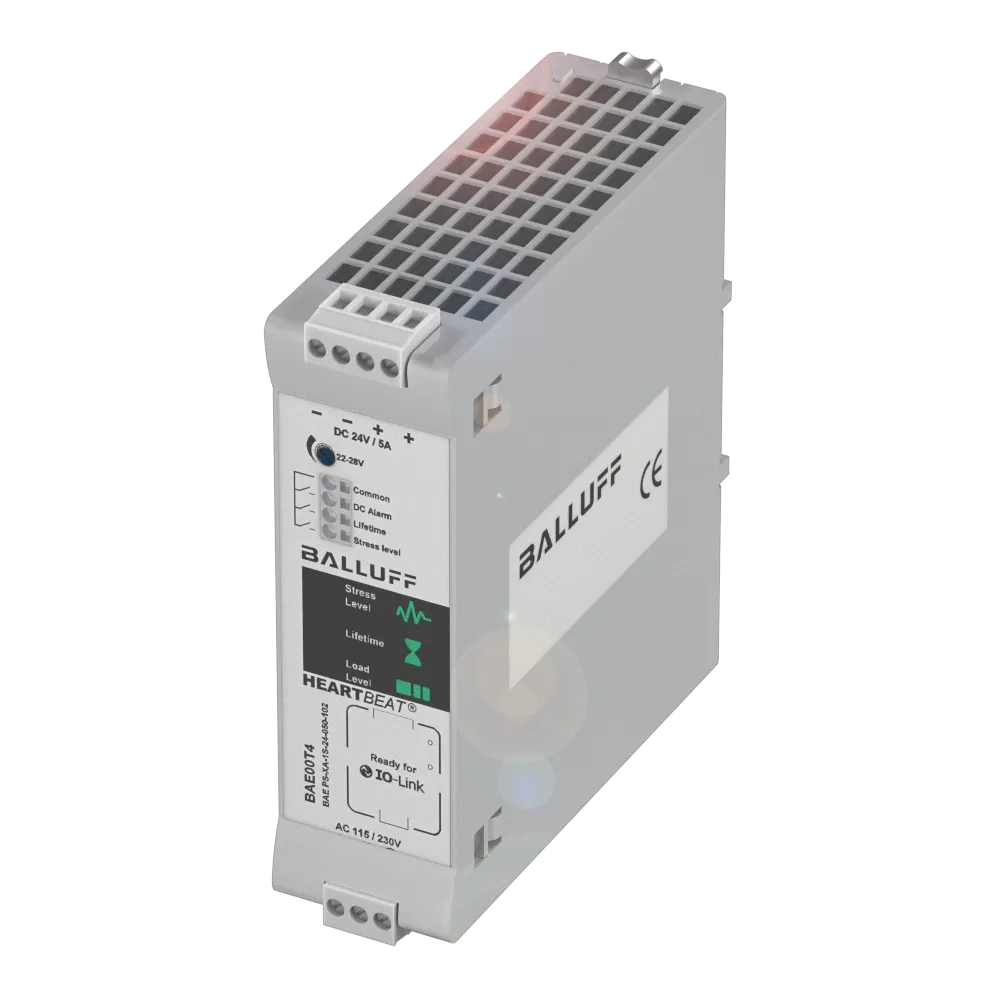

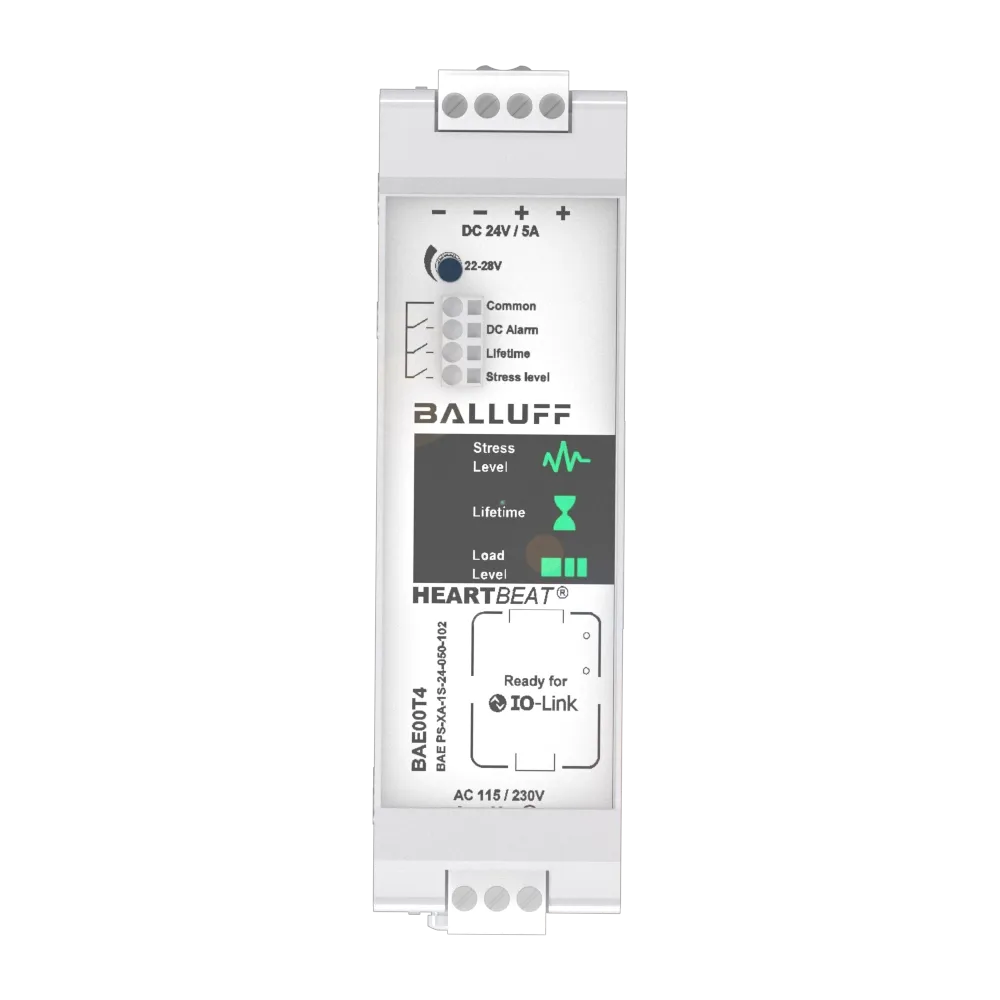

Balluff BAE00T4
Dimension: 38 x 127 x 120 mm. Version: DIN rail. Mounting part: DIN rail mount. Housing material: Aluminium. Connection (supply voltage IN): Terminal strip. Connection (supply voltage OUT): Terminal s…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Dimension: 38 x 127 x 120 mm. Version: DIN rail. Mounting part: DIN rail mount. Housing material: Aluminium. Connection (supply voltage IN): Terminal strip. Connection (supply voltage OUT): Terminal strip. Input voltage: 115/230 V AC automatic selection. Rated output voltage DC: 24 V. Rated output current: 5 A. Output capacity max.: 120 W. Output current max.: 7.5 A for max. 4s1x/min.. IP rating: IP20. Approval/Conformity: CEcURuscULusWEEE. Ambient temperature: -25…70 °C
Specification
Key features
| Dimension | 38 x 127 x 120 mm |
|---|---|
| Version | DIN rail |
| Mounting part | DIN rail mount |
| Housing material | Aluminium |
| Connection (supply voltage IN) | Terminal strip |
| Connection (supply voltage OUT) | Terminal strip |
| Input voltage | 115/230 V AC automatic selection |
| Rated output voltage DC | 24 V |
| Rated output current | 5 A |
| Output capacity max. | 120 W |
| Output current max. | 7.5 A for max. 4s1x/min. |
| IP rating | IP20 |
| Approval/Conformity | CEcURuscULusWEEE |
| Ambient temperature | -25...70 °C |
