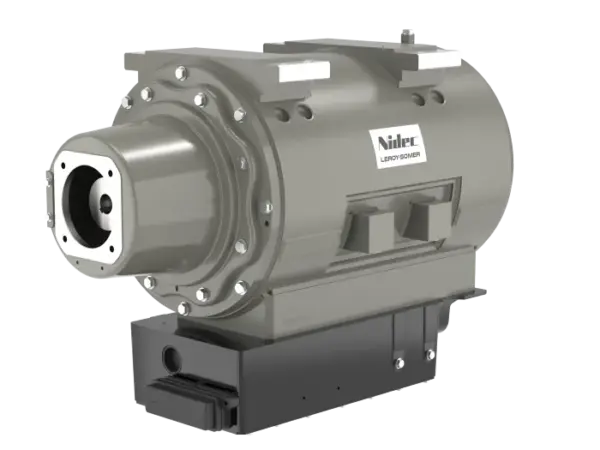

Acim Nidec LSA 43.3 L7 IC7
The best of performance
The Leroy-SomerTM LSA 43.3 L7 IC7 alternator is a totally enclosed water-cooled machine for special applications.
Cooling is performed by an air/water exchanger (cooling index:…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
The best of performance
The Leroy-SomerTM LSA 43.3 L7 IC7 alternator is a totally enclosed water-cooled machine for special applications.
Cooling is performed by an air/water exchanger (cooling index: IC7A1W7 in accordance with standard IEC 60034-6)
Standards
The Leroy-SomerTM LSA 43.3 L7 IC7 alternator meets all key international standards and regulations, including IEC 60034, NEMA MG 1.32-33, ISO 8528-3, CSA C22.2 n°100-14 and UL 1446 (UL 1004 on request). Also compliant with IEC 61000-6-2, IEC 61000-6-3, IEC 61000-6-4, VDE 0875G, VDE 0875N and EN 55011, group 1 class A for European zone.
The Leroy-SomerTM LSA 43.3 L7 IC7 alternator can be integrated in EC marked generator set, and bears EC, UKCA and CMIM markings. It is designed, manufactured and marketed in an ISO 9001 and ISO 14001 quality assurance environment.
Specification
| 50 Hz voltage range |
220V – 240V and 380V – 415V |
|---|---|
| PH of water |
7<pH<8 |
| Degree of protection |
IP 6K9K |
| Direction of rotation |
clockwise and anti-clockwise (without derating) |
| Features |
Electrical characteristics; Class H insulation; Mixed winding 2/3 and 5/6, standard 4-wire (6S); High efficiency and motor starting capacity; Voltage accuracy ± 1% on balance linear load; Under speed protection; Integrated radio interference suppressor; Mounted inside the terminal box ; Protection system; Designed for an operating environment up to 80°C and a maximum cooling liquid temperature of 93°C, as well as air cooling of the terminal box with a maximum temperature of 50°C; Enclosed machine cooled by heat transfer fluid; Mechanical construction; Compact rigid assembly to better withstand generator vibrations; Steel frame and aluminum terminal box; Cast iron end shields; Two-bearing mounting with Rotex coupling; Half-key balancing; Greased for life ball bearings; Terminal box design; Power and signal connection via 2 Harting connectors; Cooling of the terminal box by an air flow with a maximum temperature of 50°C |
