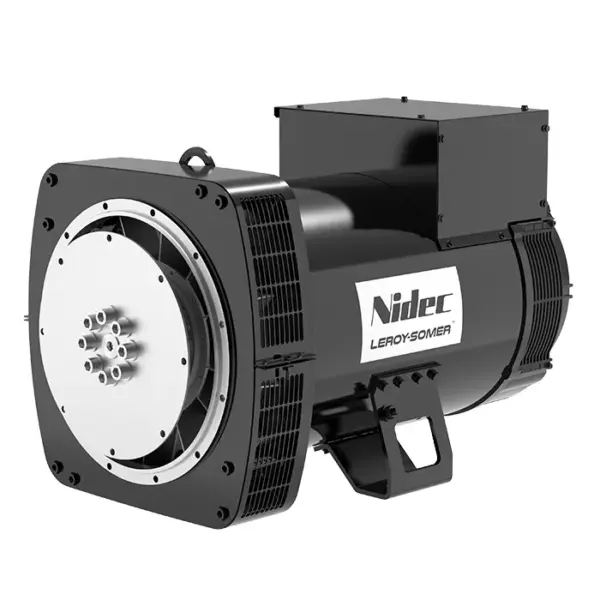

Acim Nidec Leroy-Somer TAL 04âââ4 | 70 – 200 kVA
Power
70 – 200 kVA*
Voltage
220 – 480V
Poles
4…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Power
70 – 200 kVA*
Voltage
220 – 480V
Poles
4
Speed
1500 – 1800 rpm
Shaft height
270 mm
Max efficiency
95.8 %
Excitation
SHUNT / AREP+ / PMG
Regulation
R120 / R180 (standard)
* kVA/50Hz – kW/60Hz | Continuous / 40°C
(Discrepancies may occur, consult catalogue for exact figures)
Applications
Stand-by
Industrial
Telecom
Commercial
Benefits
PERFORMANCE
The TAL alternator range is designed to meet the general needs of stand-by and prime power applications in telecom, commercial and industrial markets.
RELIABLE
All products in the TAL series are manufactured to Leroy-Somer high quality standards and are built with class H insulation materials.
Specification
| Insulation class | H H |
|---|---|
| Winding pitch | 2/3 (winding 6S) 2/3 (winding 6S) |
| Number of wires | 6 6 |
| Protection | IP 23 IP 23 |
| Altitude | ≤ 1000 m ≤ 1000 m |
| Overspeed | 2250 rpm 2250 rpm |
| Air flow | 0.29m3/s, 50 Hz – 0.34m3/s, 60 Hz 0.29m3/s, 50 Hz – 0.34m3/s, 60 Hz |
| Excitation system / AVR type | SHUNT : R120 AREP+ or PMG : R180 SHUNT : R120 AREP+ or PMG : R180 |
| Voltage regulation (Steady state) | R120 : ±1% R180 : ±0.5% R120 : ±1% R180 : ±0.5% |
| Flex plate / Flange | 2 1 |
| 14 | – â |
| 11 1/2 | â â |
| 10 | â â |
| 8 | – – |
