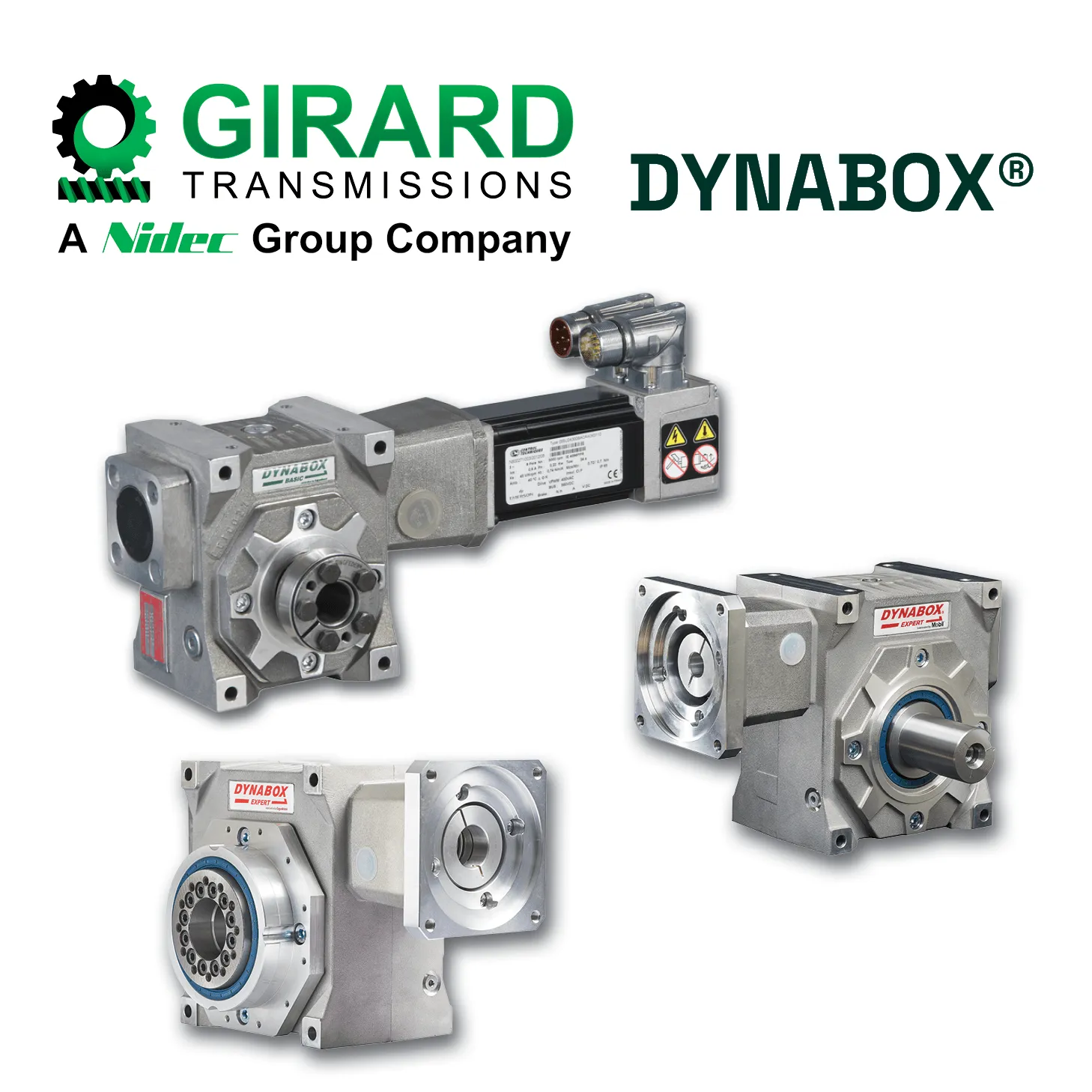

Acim Nidec DYNABOX® High Precision Right Angle Gearboxes and Gearmotors

DYNABOX® is a high precision right angle gearbox. This product exists as a gearbox or as a worm/wheel component, DYNASET®, to be integrated into your machine or transmission box. Based on a dual-lead worm design, this precision worm-wheel technology is very suitable for any high precision and dynamic application like robotic arms, cartesian robots, gantry, printing, medical and healthcare, CNC rotating table applications and many other industrial applications.
DYNABOX servo gearboxes are designed to reduce the speed and increase the torque of servo motors and to optimize the ratio of inertia between the driven load and the motor. The high efficiency worm gear provides very low backlash and high torsional stiffness with quiet operation for precision applications.


DYNABOX Gearboxes – Precision and High Dynamics

Multiple mounting options for space savings and easy integration
Compact right angle design
Solid output shaft single/double/hollow shaft – keyed or with shrink disc
Maintenance-free
Pre-lubricated Gearboxes
Available with Unimotor HD motors for continuous duty applications with either high inertia loads or for pulse duty applications requiring high dynamics
Motor speed up to 6000 rpm
Available in 3 output backlash levels:
EXPERT: E (≤1 arcmin) / MEDIUM: M (≤5 arcmin) / BASIC: B (≤10 arcmin)

For more information, specifications and ordering options, please visit our Girard Transmissions website.
