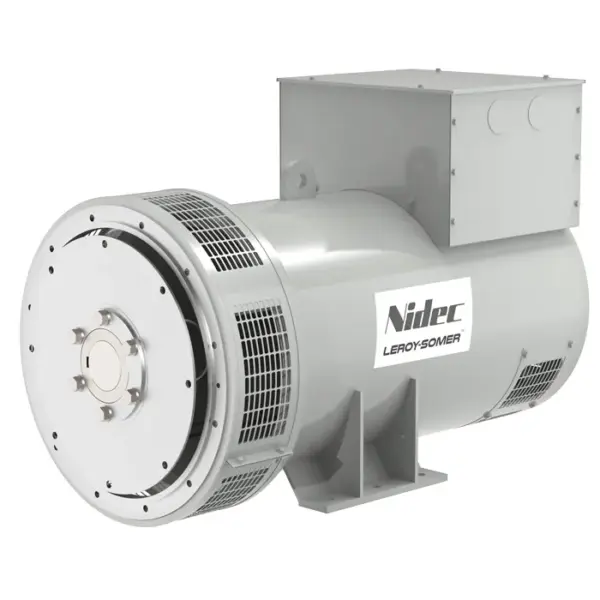

Acim Nidec 400 Hz Ground Power Units
Nidec Leroy-Somer, world leader in alternators from 10 to 35,000 kVA, has been manufacturing a range of special frequency products destined for the aircraft industry, for the last 30 years.
Expertis…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Nidec Leroy-Somer, world leader in alternators from 10 to 35,000 kVA, has been manufacturing a range of special frequency products destined for the aircraft industry, for the last 30 years.
Expertise in design and manufacturing ensure that each Nidec Leroy-Somer product meets the technical requirements of this exacting application.
The 400Hz alternators are brushless, self-excited generators (Shunt excitation), with the D550 digital AVR fitted as standard.
They meet the principal international standards, notably: IEC 60034-1.
Our latest D550 Digital AVR is compatible with all our 400 Hz alternators.
It is equipped with several advanced protections and integrates a visual interface (EasyReg Advanced Software), that enables users to read configuration values and parameters.
The D550 has also been optimized for grid parallel operations and complies with the latest grid code regulations.
Specification
| Voltage |
200V (L-L) / 115V (L-N) adjustable to ± 5% |
|---|---|
| Power factor |
0.8 |
| Ambient temperature |
-20°C and +50°C. |
| Features |
Electrical characteristics; Insulation class H; Transient voltage dip ≤ 10% for 50% load variation; Harmonic rate < 3% at no load; Recovery time ≤ 500 ms; – Voltage accuracy ± 1% on balance linear load; – Under speed protection; – Integrated radio interference suppressor; – Mounted inside the terminal box ; Mechanical characteristics; Two-bearing and single-bearing versions available; Steel frame and steel / cast-iron / aluminum end shields; Cylindrical and standardized shaft end for two-bearing; Sealed for life bearings; IP 23 protection, self-ventilated alternator; Operating conditions; Altitude up to 1000m; Radio interference suppressor |
