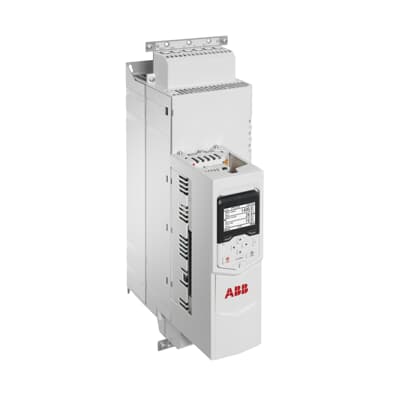

ABB ACS880-M04-030A-2
LV AC machinery drive module, IEC: Pn 7.5 kW, 30 A, 230 V, UL: Pld 10 Hp, 28 A, 230 V (ACS880-M04-030A-2)
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Customs Tariff Number | 85044086 |
|---|---|
| HS Code | 850440 — ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Static converters |
| Invoice Description | ACS880-M04-030A-2 PN: 7.5 kW, IN: 30 A |
| Made To Order | Yes |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Quote Only | No |
| Selling Unit of Measure | piece |
| Product Net Weight | 15.8 kg, 34.8 lb |
| Product Net Depth / Length | 235 mm, 9.25 in |
| Product Net Height | 658 mm, 25.91 in |
| Product Net Width | 165 mm, 6.50 in |
| Package Level 1 Depth / Length | 700 mm, 27.56 in |
| Package Level 1 Height | 360 mm, 14.17 in |
| Package Level 1 Width | 260 mm, 10.24 in |
| Package Level 1 Units | 1 carton |
| Number of Phases | 3-phase |
| Degree of Protection | IP20 |
| Enclosure Type NEMA | Open Type |
| Altitude | 1000 m |
| Operating Humidity (RHamb) | 5 … 95 |
| Power Factor | 0.98 |
| Sound dB (A) | 71 dB(A) |
| Multiple Battery Information | Lithium Coin, CR2032, 220 mAh, 3 V, 2 pcs, 6 g |
| Frequency (f) | 47.5 … 63 Hz |
| Frame Size | R3 |
| Input Voltage (Uin) | 200 … 240 V |
| Mounting Type | Module |
| Communication Protocol | CAN, DeviceNet, EtherNet/IP, MODBUS, Other Bus Systems, PROFIsafe, PROFIBUS, PROFINET IO, TCP/IP |
| Number of Hardware Interfaces | Industrial Ethernet 0, Other 3, Parallel 0, PROFINET 0, RS-232 0, RS-422 0, RS-485 1, Serial TTY 0, USB 0 |
| Includes | PC connection |
| Analog Inputs | 2 |
| Analog Outputs | 2 |
| Number of Digital In/Outputs | 6 / 5 |
| Output Current, Normal Use (In) | 30 A |
| Output Current, Light-Overload Use (ILD) | 28 A |
| Output Current, Heavy-Duty Use (IHD) | 24 A |
| Output Power, Normal Use (Pn) | 7.5 kW |
| Output Power, Light-Overload Use (PLD) | 7.5 kW |
| Output Power, Heavy-Duty Use (PHD) | 5.5 kW |
| Apparent Power Output | 12 kV·A |
| Efficiency Level | IE2 |
| Standby Loss | 31 W |
| Temperature Rating | Maximum 40 °C |
| Output Current, Heavy-Duty Use (UL) | 24 A |
| Output Current, Light-Overload Use (UL) | 28 A |
| Output Power, Heavy-Duty Use (UL) | 7.5 Hp |
| Output Power, Light-Overload Use (UL) | 10 Hp |
| REACH Date | 20250905 |
| REACH Declaration | REACH SVHC-250 declaration |
| REACH Information | True – contains substances > 0.1 mass percentage |
| RoHS Date | 20240508 |
| RoHS Declaration | EU Declaration of Conformity for ACS880-01, ACS880-04/-04F, ACS880-11/-31, ACS880-14/-34, ACS880-M04 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | fcbdffac-2627-4666-9149-f2307acecd9a Finland |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| UNSPSC | 39122001 |
