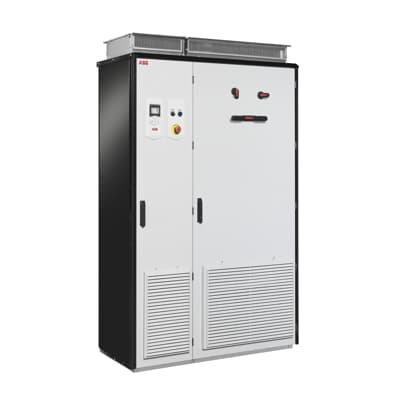

ABB ACS880-17-0124A-5
ACS880-17-0124A-5 PN: 75 kW, IN: 124 A
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

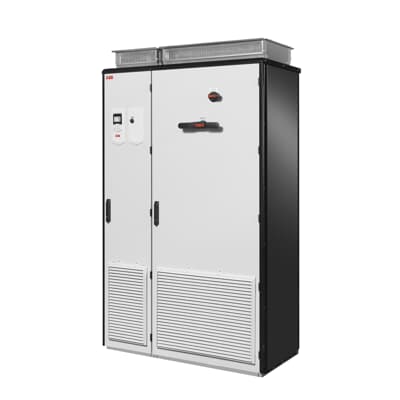

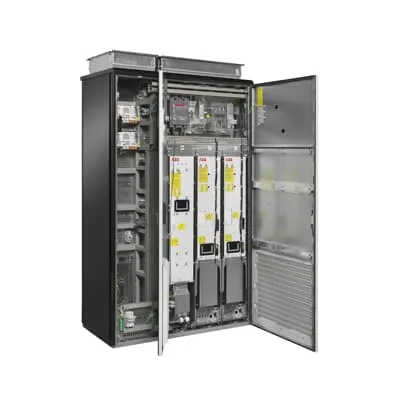

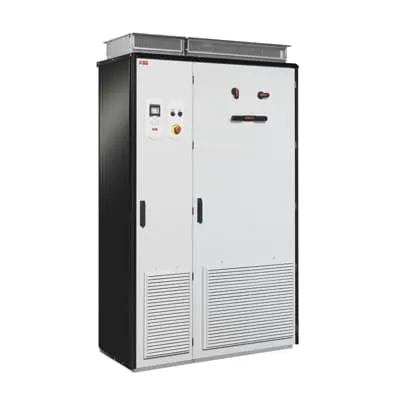

The ACS880-17 regenerative drives are a compact and complete regenerative drive solution, with every-thing you need for regenerative operation in cyclic or continuous braking applications. Such applications include cranes, elevators, centrifuges, downhill conveyers and test benches.
With regenerative functionality, the braking energy of the motor is returned to the drive and distributed to the supply network so that it can be utilized by other equipment.
Compared to mechanical or resistor braking, where braking energy is wasted as heat, regenerative drive operation offers significant energy consumption and cooling savings.
The ACS880-17 regenerative drives achieve a unity power factor and ultra-low harmonic content, indicating that electrical energy is being used efficiently and the drive.
The ACS880-17 comes with wide variety of standardized configurations for different application requirements, from line contactors, to preventing unexpected motor starts. If the application requires more, ABB’s Order-Based Engineering services can add special features to the standard product, such as an additional cabinet for customer-specific devices. The robust design and enclosures up to IP54 make the ACS880-17 suitable for even very harsh environments.
Specification
| Customs Tariff Number |
85044086 |
|---|---|
| HS Code |
850440 — ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Static converters |
| Invoice Description |
ACS880-17-0124A-5 PN: 75 kW, IN: 124 A |
| Made To Order |
Yes |
| Minimum Order Quantity |
1 piece |
| Order Multiple |
1 piece |
| Quote Only |
No |
| Selling Unit of Measure |
piece |
| Product Net Weight |
320 kg, 705 lb |
| Product Net Depth / Length |
673 mm, 26.496 in |
| Product Net Height |
2145 mm, 84.449 in |
| Product Net Width |
430 mm, 16.929 in |
| Package Level 1 Depth / Length |
1100 mm, 43.307 in |
| Package Level 1 Height |
2385 mm, 93.898 in |
| Package Level 1 Width |
1144 mm, 45.039 in |
| Number of Phases |
3-phase |
| Degree of Protection |
IP22 |
| Enclosure Type NEMA |
Type1 |
| Altitude |
1000 m |
| Operating Humidity (RHamb) |
5 … 95 |
| Power Factor |
1 |
| Sound dB (A) |
70 dB(A) |
| Multiple Battery Information |
Lithium Coin, CR2032, 2pcs, 3V, 220mAh, 6g |
| Frequency (f) |
48 … 63 Hz |
| Frame Size |
R8 |
| Input Voltage (Uin) |
380 … 500 V |
| Communication Protocol |
CAN, DeviceNet, EtherNet/IP, MODBUS, Other Bus Systems, PROFIsafe, PROFIBUS, PROFINET IO, TCP/IP |
| Number of Hardware Interfaces |
Industrial Ethernet 0, Parallel 0, PROFINET 0, RS-232 0, RS-422 0, RS-485 1, Serial TTY 0, USB 1 |
| Includes |
Control unit, PC connection |
| Analog Inputs |
2 |
| Analog Outputs |
2 |
| Number of Digital In/Outputs |
7 / 5 |
| Output Current, Normal Use (In) |
124 A |
| Output Current, Light-Overload Use (ILD) |
118 A |
| Output Current, Heavy-Duty Use (IHD) |
96 A |
| Output Power, Normal Use (Pn) |
75 kW |
| Output Power, Light-Overload Use (PLD) |
75 kW |
| Output Power, Heavy-Duty Use (PHD) |
55 kW |
| Apparent Power Output |
107 kV·A |
| Temperature Rating |
Maximum 40 °C, Minimum 0 °C |
| Ecodesign Exemption |
Energy efficiency data is not provided for the drive. The regenerative drives are exempt from the EU ecodesign requirements (Regulation EU/2019/1781, §2.3.c). |
| Output Current, Heavy-Duty Use (UL) |
96 A |
| Output Current, Light-Overload Use (UL) |
124 A |
| Output Current, Normal Use (UL) |
– A |
| Output Power, Heavy-Duty Use (UL) |
75 Hp |
| Output Power, Light-Overload Use (UL) |
100 Hp |
| Output Power, Normal Use (UL) |
– Hp |
| SCIP |
82D82DAE-9725-4373-865D-AA949B97DE50 Finland |
| WEEE Category |
4. Large Equipment (Any External Dimension More Than 50 cm) |
| UNSPSC |
39122001 |
