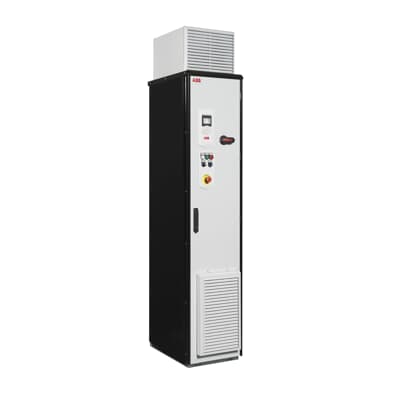

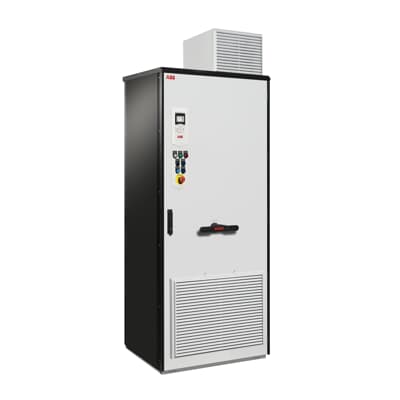

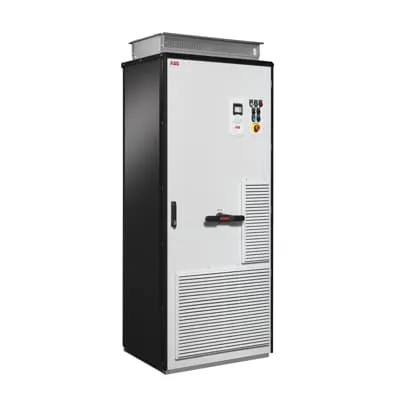

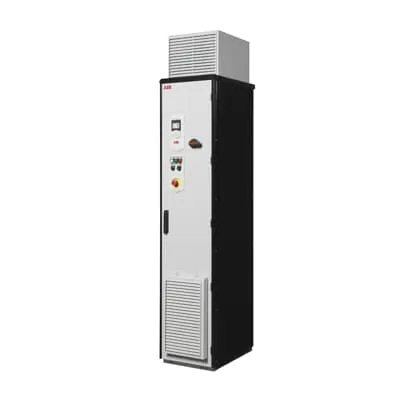

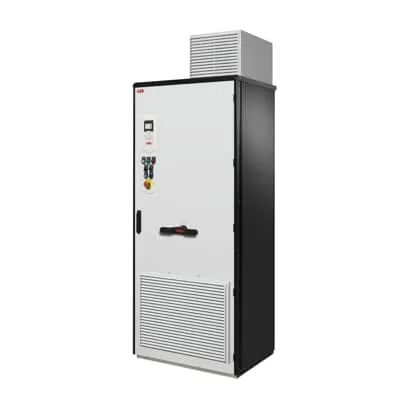

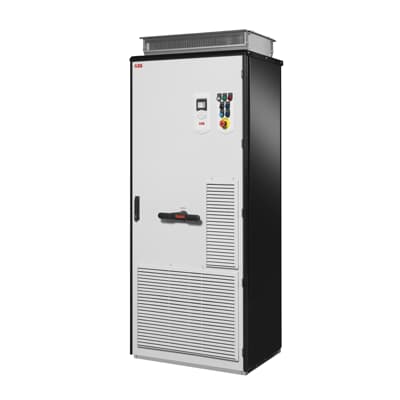

ABB ACS880-07-1140A-3+A004
ACS880-07-1140A-3+A004 PN: 630 kW, IN: 1140 A
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
The cabinet-built single drives are built to order, meeting your needs regardless of the technical challenges. The drive configuration includes a rectifier, DC link, inverter, fuses, line choke and a main switch, all built into a compact cabinet for easy assembly and commissioning. The ACS880-07 offers a wide ariety of standardized configurations for different application requirements, from line contactors, to preventing unexpected motor starts. If the application requires more, ABB’s Order-Based Engineering services can add special features to the standard product, such as an additional cabinet for customer-specific devices.
Drives up to frame size R11 are based on a compact single module including rectifier and inverter. Larger drives consist of separate rectifier and inverter modules, providing redundancy with parallel connected units.
If one module needs to be disconnected, the drive can continue running at reduced power.The robust design and enclosures up to IP54 make the ACS880-07 suitable for even very harsh environments.
Specification
| Customs Tariff Number |
85044086 |
|---|---|
| HS Code |
850440 — ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Static converters |
| Invoice Description |
ACS880-07-1140A-3+A004 PN: 630 kW, IN: 1140 A |
| Made To Order |
Yes |
| Minimum Order Quantity |
1 piece |
| Order Multiple |
1 piece |
| Quote Only |
No |
| Selling Unit of Measure |
piece |
| Product Net Weight |
1870 kg, 4123 lb |
| Product Net Depth / Length |
698 mm, 27.480 in |
| Product Net Height |
2145 mm, 84.449 in |
| Product Net Width |
2230 mm, 87.795 in |
| Package Level 1 Depth / Length |
1100 mm, 43.307 in |
| Package Level 1 Height |
2376 mm, 93.543 in |
| Package Level 1 Width |
2944 mm, 115.906 in |
| Package Level 1 Units |
1 piece |
| Number of Phases |
3-phase |
| Degree of Protection |
IP22 |
| Enclosure Type NEMA |
Type1 |
| Altitude |
1000 m |
| Operating Humidity (RHamb) |
… 95 |
| Power Factor |
0.98 |
| Sound dB (A) |
74 dB(A) |
| Frequency (f) |
48 … 63 Hz |
| Frame Size |
2xD8T+2xR8i |
| Input Voltage (Uin) |
380 … 415 V |
| Mounting Type |
Cabinet-built |
| Communication Protocol |
CAN, DeviceNet, EtherNet/IP, MODBUS, Other Bus Systems, PROFIsafe, PROFIBUS, PROFINET IO, TCP/IP |
| Number of Hardware Interfaces |
Industrial Ethernet 0, Parallel 0, PROFINET 0, RS-232 0, RS-422 0, RS-485 1, Serial TTY 0, USB 1 |
| Includes |
Control unit, PC connection |
| Analog Inputs |
4 |
| Analog Outputs |
4 |
| Number of Digital In/Outputs |
14 / 10 |
| Output Current, Normal Use (In) |
1140 A |
| Output Current, Light-Overload Use (ILD) |
1094 A |
| Output Current, Heavy-Duty Use (IHD) |
853 A |
| Output Power, Normal Use (Pn) |
630 kW |
| Output Power, Light-Overload Use (PLD) |
560 kW |
| Output Power, Heavy-Duty Use (PHD) |
450 kW |
| Ecodesign Exemption |
Energy efficiency data according to IEC-61800-9-2 is available from the ecodesign tool (https://ecodesign.drivesmotors.abb.com). |
| SCIP |
F97239A0-8F1B-4B36-A0F6-34D1783CB8EB Finland |
| WEEE Category |
4. Large Equipment (Any External Dimension More Than 50 cm) |
| UNSPSC |
39122001 |
